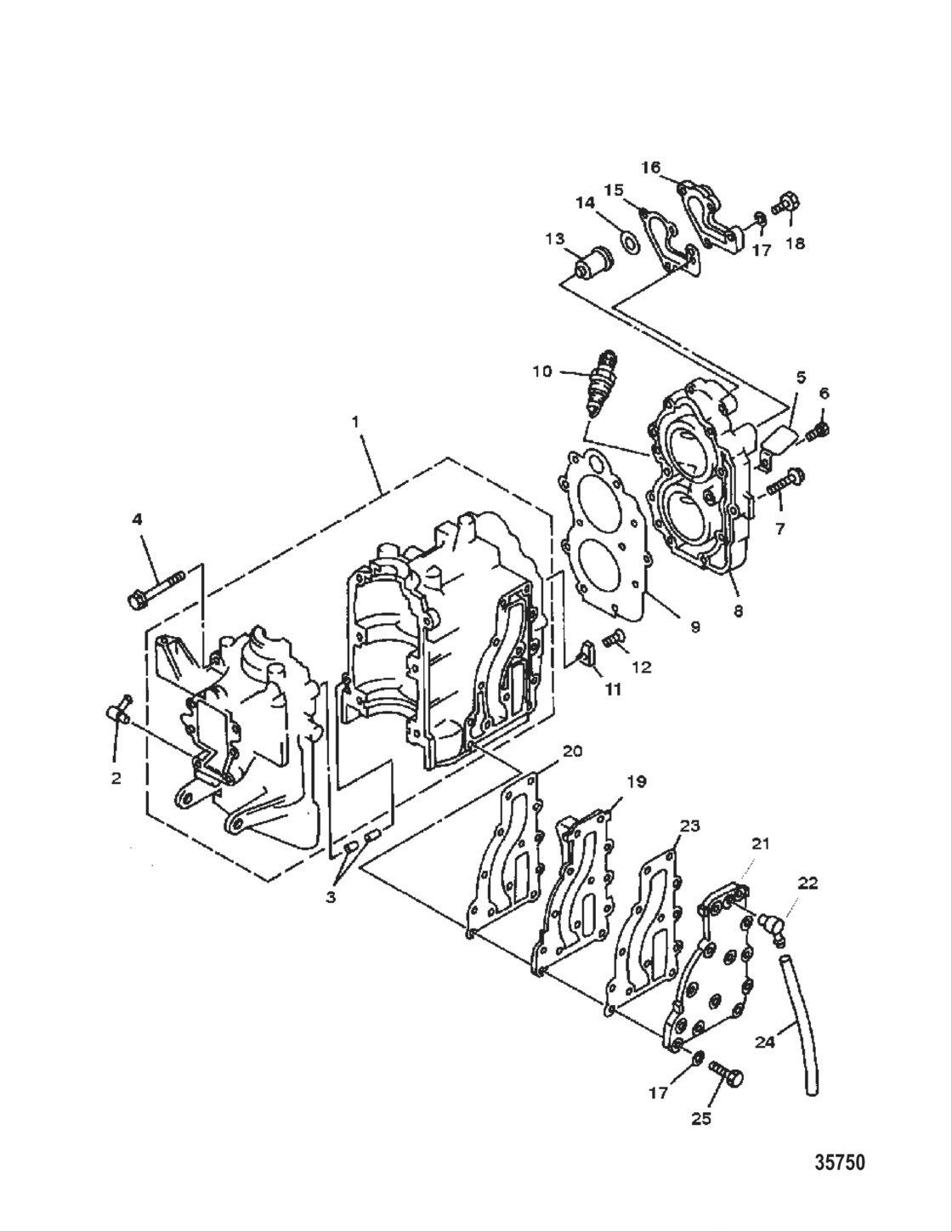

Cylinder Block And Cylinder Head Diagram Mercury-Mercruiser 15
- Power
- 15
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Серийный номер
- 65G-602581 & Up
- Кол-в цилиндров
- 2
- Подача топлива
- Карбюратор
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
8527811
Cylinder Block
|
8527811 |
— | ||
|
2
|
2
83326M Fitting |
83326M |
US $21.57 |
||
|
3
|
3
82364M
Pin, dowel
|
82364M |
— | ||
|
4
|
4
8527761
Bolt
|
8527761 |
— | ||
|
5
|
5
852794
New Genuine Part
|
852794 |
— | ||
|
6
|
6
8527763
Bolt
|
8527763 |
— | ||
| replacement | |||||
|
6
|
6
91772M
Bolt
|
91772M |
— | ||
|
7
|
7
84065M Bolt |
84065M |
US $6.96 |
||
|
8
|
8
852793
Cylinder Head
|
852793 |
— | ||
|
9
|
9
8527831
Gasket
|
8527831 |
— | ||
|
10
|
10
41263M Spark Plug |
41263M |
US $6.80 |
||
| replacement | |||||
|
10
|
10
8M0114740 S PLUG B7HS @4 |
8M0114740 |
US $5.66 |
||
|
11
|
11
83900M
New Genuine Part
|
83900M |
— | ||
|
12
|
12
95467M
Screw
|
95467M |
— | ||
|
13
|
13
814554M New Genuine Part |
814554M |
US $103.01 |
||
| replacement | |||||
|
13
|
13
814554T01 THERMOSTAT |
814554T01 |
US $103.01 |
||
|
14
|
14
81835M Washer |
81835M |
US $7.78 |
||
|
15
|
15
83940M Gasket |
83940M |
US $16.82 |
||
| replacement | |||||
|
15
|
15
83940 GASKET @2 |
83940 |
US $16.82 |
||
|
16
|
16
17662M
New Genuine Part
|
17662M |
— | ||
|
17
|
17
82214M
Washer
|
82214M |
— | ||
|
18
|
18
8527762
Bolt
|
8527762 |
— | ||
|
19
|
19
852782 New Genuine Part |
852782 |
US $38.22 |
||
| replacement | |||||
|
19
|
19
8M0119734 COVER-EXHAUST |
8M0119734 |
US $38.22 |
||
|
20
|
20
852783
Gasket
|
852783 |
— | ||
|
21
|
21
8527821
New Genuine Part
|
8527821 |
— | ||
|
22
|
22
83326M Fitting |
83326M |
US $21.57 |
||
|
23
|
23
852783
Gasket
|
852783 |
— | ||
|
24
|
24
852792
Hose
|
852792 |
— | ||
|
25
|
25
804124
Bolt
|
804124 |
— | ||
|
NI
|
NI
852761A99
New Genuine Part
|
852761A99 |
— | ||
| replacement | |||||
|
NI
|
NI
852761A02
Powerhead Assembly
|
852761A02 |
— | ||
|
NI
|
NI
852783A1
Gasket Set Powerhead
|
852783A1 |
— | ||
