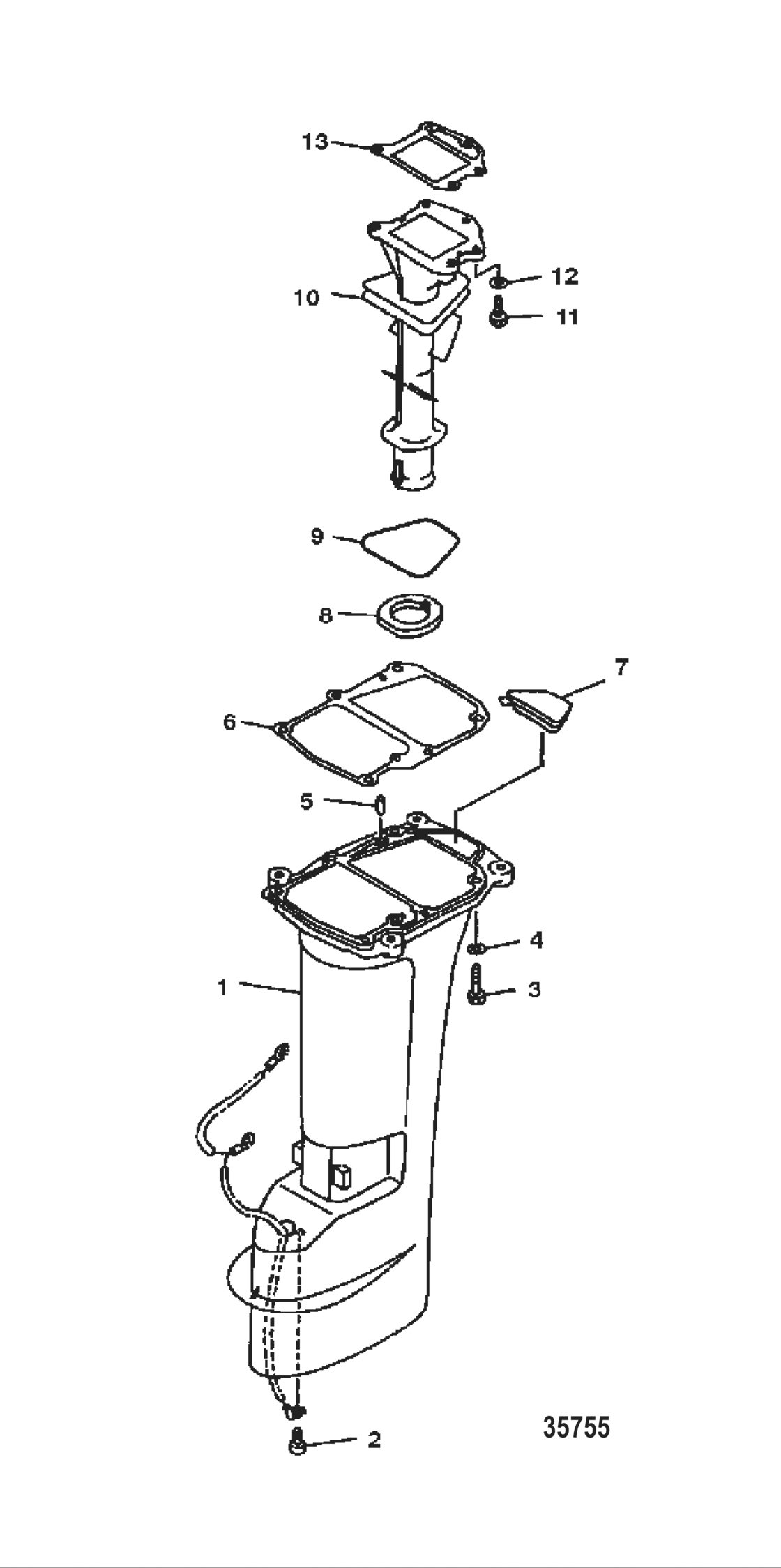

Driveshaft Housing Diagram Mercury-Mercruiser 15
- Power
- 15
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Серийный номер
- 65G-602581 & Up
- Кол-в цилиндров
- 2
- Подача топлива
- Карбюратор
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
8112764
Housing Driveshaft
(SHORT) |
8112764 |
— | ||
|
1
|
1
81127714
Housing Driveshaft
(LONG) |
81127714 |
— | ||
|
2
|
2
811995M
Screw
|
811995M |
— | ||
|
3
|
3
95416M Bolt |
95416M |
US $8.35 |
||
|
4
|
4
8528036
Washer
|
8528036 |
— | ||
| replacement | |||||
|
4
|
4
82217M
Washer
|
82217M |
— | ||
|
5
|
5
82364M
Pin, dowel
|
82364M |
— | ||
|
6
|
6
8527833 Gasket |
8527833 |
US $18.56 |
||
|
7
|
7
8104531
New Genuine Part
|
8104531 |
— | ||
|
8
|
8
8527834
Gasket
|
8527834 |
— | ||
|
9
|
9
8527962
O-Ring
|
8527962 |
— | ||
|
10
|
10
8104541
New Genuine Part
|
8104541 |
— | ||
|
11
|
11
84058M Bolt |
84058M |
US $6.85 |
||
|
12
|
12
82214M
Washer
|
82214M |
— | ||
|
13
|
13
8527835
Gasket
|
8527835 |
— | ||
|
NI
|
NI
852867A1
Gasket Set Lower Unit
|
852867A1 |
— | ||
