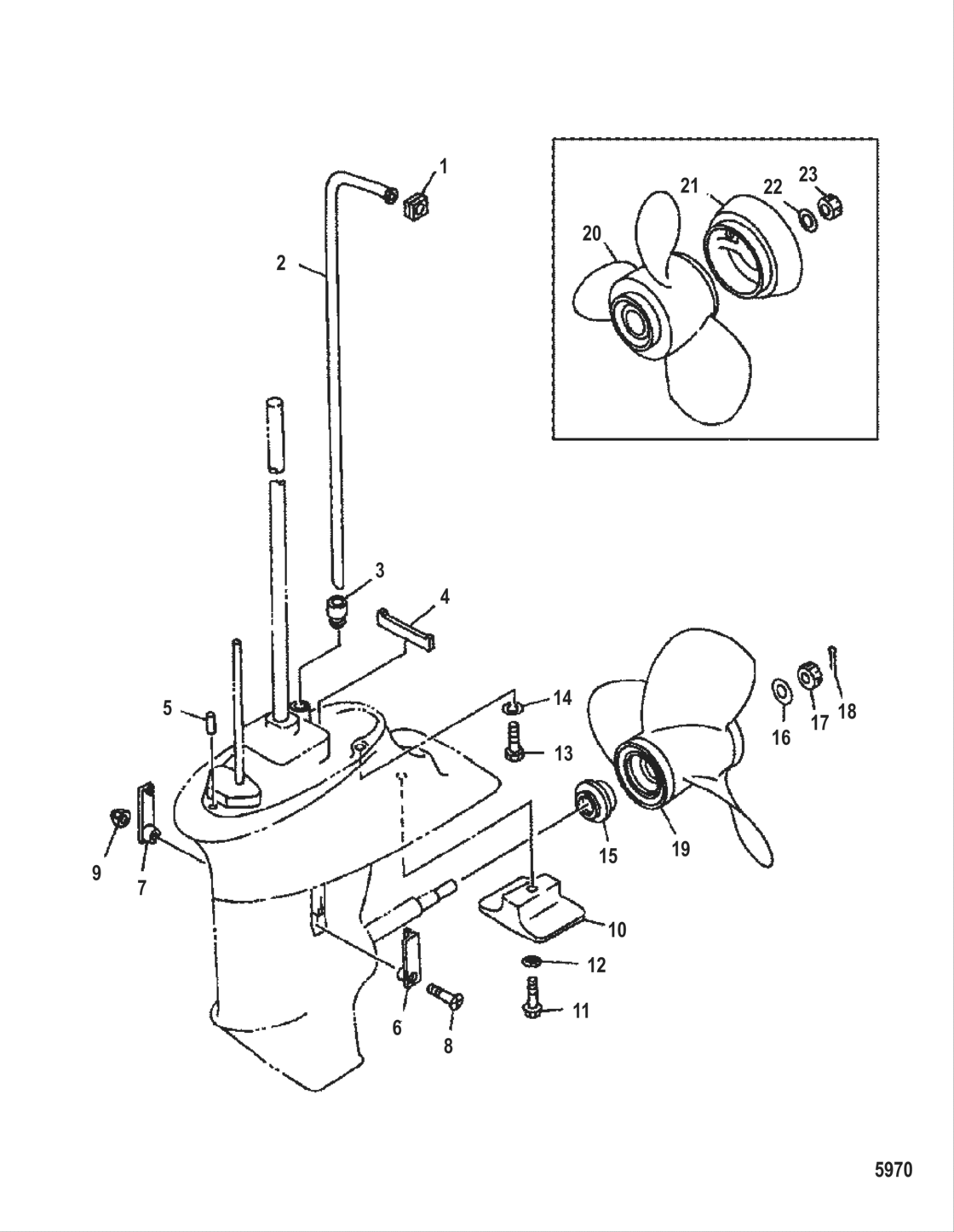

Gear Housing Propeller And Water Tube Diagram Mercury-Mercruiser 15
- Power
- 15
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Серийный номер
- 65G-602581 & Up
- Кол-в цилиндров
- 2
- Подача топлива
- Карбюратор
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
852859
Seal
|
852859 |
— | ||
|
2
|
2
8045001
Tube Water
(SHORT) |
8045001 |
— | ||
|
2
|
2
80450011 Tube Water(LONG) |
80450011 |
US $30.45 |
||
|
3
|
3
8528591
Seal
|
8528591 |
— | ||
|
4
|
4
8528592
Seal
|
8528592 |
— | ||
|
5
|
5
41275M Pin, dowel |
41275M |
US $3.25 |
||
|
6
|
6
852861
New Genuine Part
|
852861 |
— | ||
|
7
|
7
8528611
New Genuine Part
|
8528611 |
— | ||
|
8
|
8
8527879
Screw
|
8527879 |
— | ||
|
9
|
9
8528165
Nut
|
8528165 |
— | ||
|
10
|
10
827053M
New Genuine Part
|
827053M |
— | ||
|
11
|
11
11561M
Bolt
|
11561M |
— | ||
|
12
|
12
827055M
Washer
|
827055M |
— | ||
|
13
|
13
85277615
Bolt
|
85277615 |
— | ||
|
14
|
14
82217M
Washer
|
82217M |
— | ||
|
15
|
15
815025M
Thrust Hub
|
815025M |
— | ||
|
16
|
16
84275M
Washer
|
84275M |
— | ||
| replacement | |||||
|
16
|
16
859894
New Genuine Part
|
859894 |
— | ||
|
17
|
17
84087M
Nut
|
84087M |
— | ||
| replacement | |||||
|
17
|
17
859933
New Genuine Part
|
859933 |
— | ||
|
18
|
18
852862
Cotter Pin
|
852862 |
— | ||
|
19
|
19
84082M Propeller(3 X 9-1/4 X 8) |
84082M |
US $177.20 |
||
| replacement | |||||
|
19
|
19
QA3902R BLKDI 9 1/4R8(3 X 9-1/4 X 8) |
QA3902R |
US $177.20 |
||
|
19
|
19
84083M Propeller(3 X 9-1/2 X 6-1/2) |
84083M |
US $100.58 |
||
|
19
|
19
84081M Propeller(3 X 9-1/4 X 9) |
84081M |
US $177.20 |
||
| replacement | |||||
|
19
|
19
QA3906R BLKDI 9 1/4R9(3 X 9-1/4 X 9) |
QA3906R |
US $177.20 |
||
|
19
|
19
84407M Propeller(3 X 9-1/4 X 9-3/4) |
84407M |
US $177.20 |
||
| replacement | |||||
|
19
|
19
QA3914R Blkd9 1/4r10 1/2(3 X 9-1/4 X 9-3/4) |
QA3914R |
US $177.20 |
||
|
19
|
19
84080M Propeller(3 X 9-1/4 X 10-1/2) |
84080M |
US $177.20 |
||
| replacement | |||||
|
19
|
19
QA3914R Blkd9 1/4r10 1/2(3 X 9-1/4 X 10-1/2) |
QA3914R |
US $177.20 |
||
|
19
|
19
84079M
Propeller
(3 X 9-1/4 X 12) |
84079M |
— | ||
| replacement | |||||
|
19
|
19
QA3920R
BLKDMD 9.25R11
(3 X 9-1/4 X 12) |
QA3920R |
— | ||
|
20
|
20
94786M
Propeller
(3 X 9-3/4 X 8) DUAL THRUST HUB |
94786M |
— | ||
|
20
|
20
94787M
Propeller
(3 X 9-3/4 X 6-1/2) DUAL THRUST HUB |
94787M |
— | ||
|
21
|
21
827129M
New Genuine Part
DUAL THRUST HUB |
827129M |
— | ||
|
22
|
22
84974M
Washer
DUAL THRUST HUB |
84974M |
— | ||
|
23
|
23
827130M
Nut
DUAL THRUST HUB |
827130M |
— | ||
|
NI
|
NI
852867A1
Gasket Set Lower Unit
|
852867A1 |
— | ||
