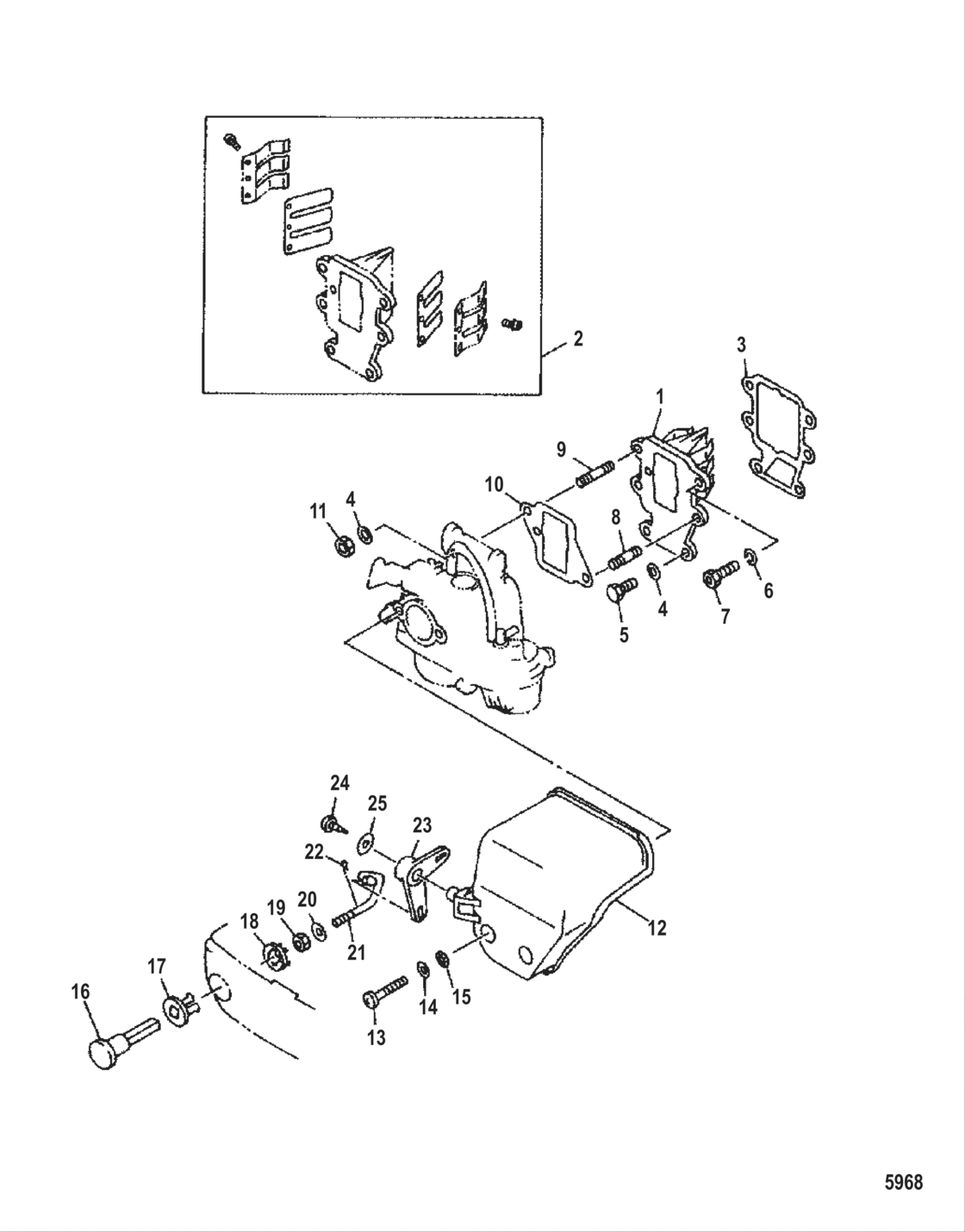

Intake Manifold And Choke Diagram Mercury-Mercruiser 15
- Power
- 15
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Серийный номер
- 65G-602581 & Up
- Кол-в цилиндров
- 2
- Подача топлива
- Карбюратор
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
84246A1 Reed Valve Assembly |
84246A1 |
US $153.55 |
||
|
2
|
2
84246M
Reed Set
|
84246M |
— | ||
|
3
|
3
83941M
Gasket
|
83941M |
— | ||
|
4
|
4
82214M
Washer
|
82214M |
— | ||
|
5
|
5
826957M
Bolt
|
826957M |
— | ||
|
6
|
6
82212M Lockwasher |
82212M |
US $2.54 |
||
|
7
|
7
94766M
Bolt
|
94766M |
— | ||
|
8
|
8
80232M
Stud
|
80232M |
— | ||
|
9
|
9
81731M
Stud
|
81731M |
— | ||
|
10
|
10
83245M
Gasket
|
83245M |
— | ||
|
11
|
11
82390M
Nut
|
82390M |
— | ||
|
12
|
12
852804 New Genuine Part |
852804 |
US $17.44 |
||
|
13
|
13
82522M
Screw
|
82522M |
— | ||
|
14
|
14
82211M Washer |
82211M |
US $4.53 |
||
|
15
|
15
8528031
Washer
|
8528031 |
— | ||
|
16
|
16
852805
Knob-choke
|
852805 |
— | ||
|
17
|
17
84760M
Grommet
|
84760M |
— | ||
|
18
|
18
826920M
Grommet
|
826920M |
— | ||
|
19
|
19
80245M
Nut
|
80245M |
— | ||
|
20
|
20
8528033
Washer
|
8528033 |
— | ||
|
21
|
21
8112401
New Genuine Part
|
8112401 |
— | ||
|
22
|
22
82050M
Cotter Pin
|
82050M |
— | ||
|
23
|
23
811241M
Lever-choke
|
811241M |
— | ||
|
24
|
24
8527871 Screw |
8527871 |
US $2.56 |
||
|
25
|
25
8528032
Washer
|
8528032 |
— | ||
|
NI
|
NI
811252A1
Repair Kit Carburetor
|
811252A1 |
— | ||
| replacement | |||||
|
NI
|
NI
811252T1
New Genuine Part
|
811252T1 |
— | ||
|
NI
|
NI
852783A1
Gasket Set Powerhead
|
852783A1 |
— | ||
