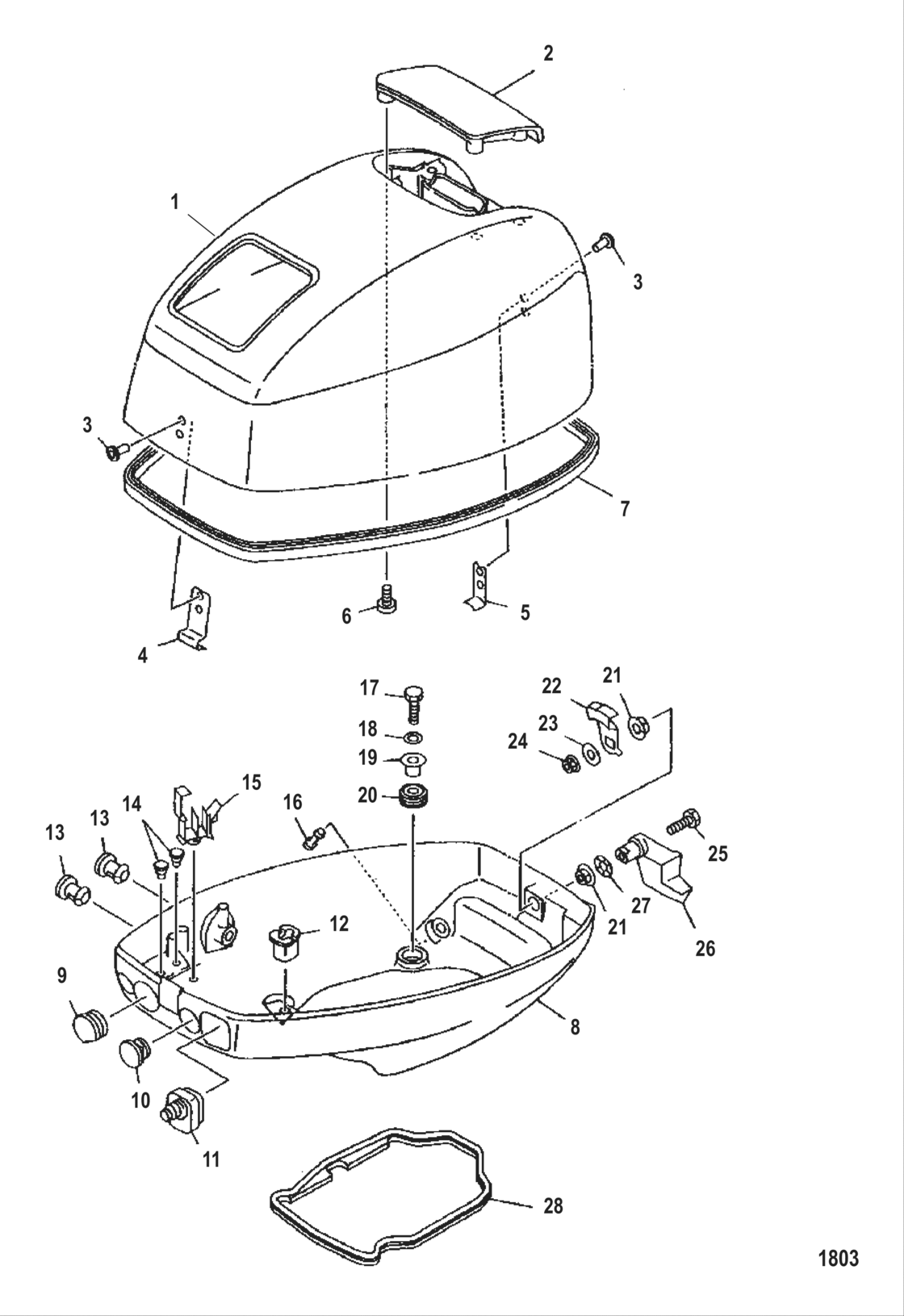

Cowling Diagram Mercury-Mercruiser 15
- Power
- 15
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Country
- Belgium
- Серийный номер
- 6M7K-100382 & Up
- Кол-в цилиндров
- 2
- Подача топлива
- Карбюратор
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
852762A02
Top Cowl Assembly
|
852762A02 |
— | ||
|
2
|
2
852766001
Molding
|
852766001 |
— | ||
|
3
|
3
814489M
Rivet
|
814489M |
— | ||
|
4
|
4
852764
New Genuine Part
|
852764 |
— | ||
|
5
|
5
8527641
New Genuine Part
|
8527641 |
— | ||
|
6
|
6
811188M Bolt |
811188M |
US $11.14 |
||
| replacement | |||||
|
6
|
6
811188T BOLT |
811188T |
US $11.14 |
||
|
7
|
7
852763 New Genuine Part |
852763 |
US $26 |
||
|
8
|
8
852767
Bottom Cowl
|
852767 |
— | ||
|
9
|
9
83988M
Grommet
|
83988M |
— | ||
|
10
|
10
18927M
Grommet
|
18927M |
— | ||
|
11
|
11
852768
Grommet
|
852768 |
— | ||
|
12
|
12
96596M
Grommet
|
96596M |
— | ||
|
13
|
13
11414M
Grommet
|
11414M |
— | ||
|
14
|
14
16634M
Grommet
|
16634M |
— | ||
|
15
|
15
852772
New Genuine Part
|
852772 |
— | ||
|
16
|
16
852771
Connector
|
852771 |
— | ||
|
17
|
17
82405M
Bolt
|
82405M |
— | ||
|
18
|
18
82214M
Washer
|
82214M |
— | ||
|
19
|
19
11420M
Collar
|
11420M |
— | ||
|
20
|
20
11416M Grommet |
11416M |
US $5.33 |
||
| replacement | |||||
|
20
|
20
11416T GROMMET |
11416T |
US $5.33 |
||
|
21
|
21
11409M
Bushing
|
11409M |
— | ||
|
22
|
22
95463M
N.l.a.
|
95463M |
— | ||
|
23
|
23
81794M Washer |
81794M |
US $5.33 |
||
|
24
|
24
82390M
Nut
|
82390M |
— | ||
|
25
|
25
82405M
Bolt
|
82405M |
— | ||
|
26
|
26
8527691
New Genuine Part
|
8527691 |
— | ||
|
27
|
27
81869M
Washer
|
81869M |
— | ||
|
28
|
28
852770
Seal
|
852770 |
— | ||
|
NI
|
NI
852825A1
Decal Set (Side/rear)
|
852825A1 |
— | ||
|
NI
|
NI
8528251
Decal Front
|
8528251 |
— | ||
