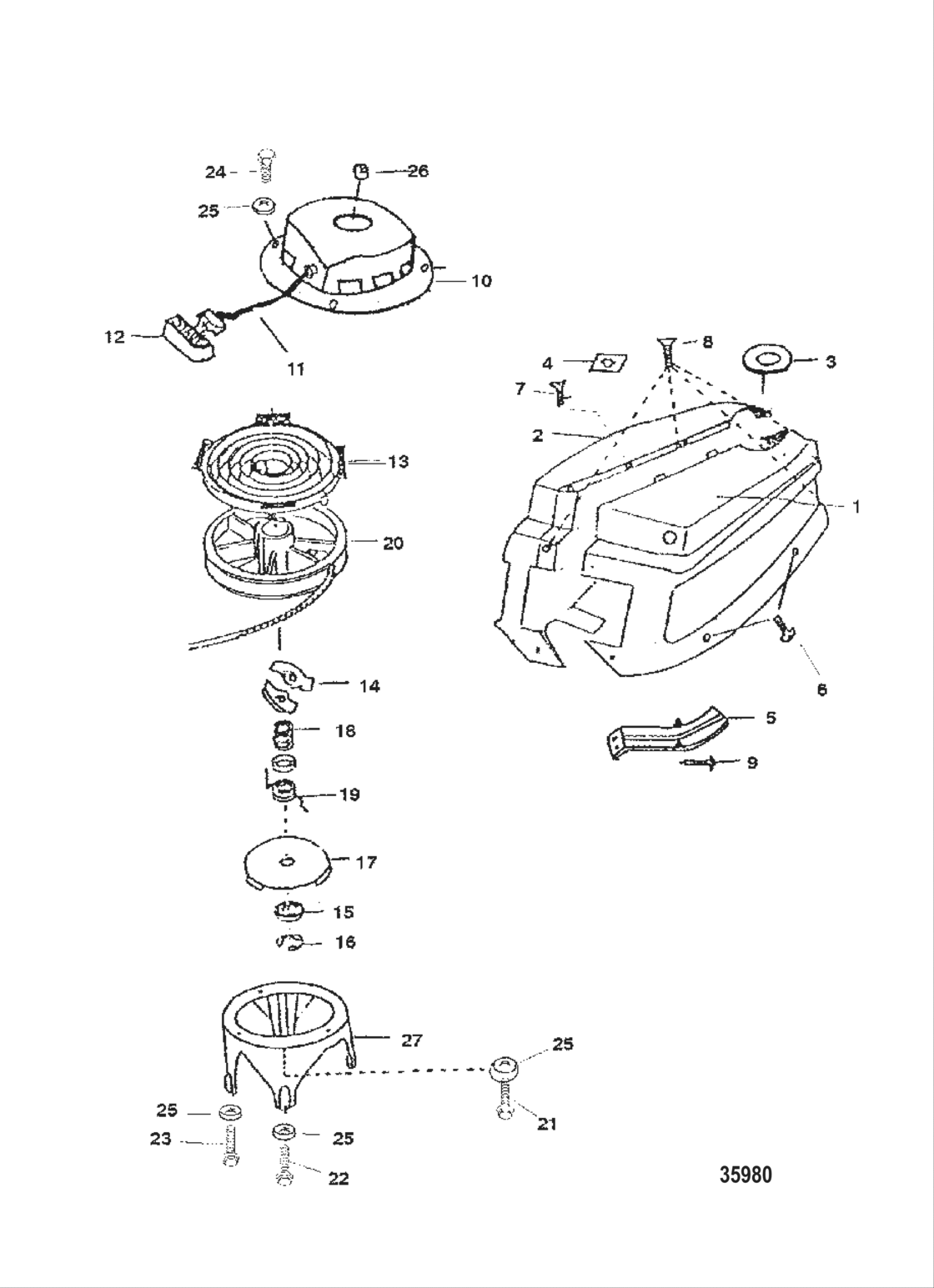

Cowling/recoil Starter Diagram Mercury-Mercruiser 2
- Power
- 2
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Country
- USA
- Серийный номер
- 0G413201 & Up
- Серия
- Thruster
- Кол-в цилиндров
- 1
- Подача топлива
- Карбюратор
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
832500A1
Top Cowl Assembly
(STARBOARD)(MERCURY) |
832500A1 |
— | ||
|
1
|
1
832500A2
Top Cowl Assembly
(STARBOARD)(MARINER) |
832500A2 |
— | ||
|
2
|
2
832498A1
Top Cowl Assembly
(PORT)(MERCURY) |
832498A1 |
— | ||
|
2
|
2
832498A2
Top Cowl Assembly
(PORT)(MARINER) |
832498A2 |
— | ||
|
3
|
3
832499
Plate Rubber
|
832499 |
— | ||
|
4
|
4
832501
Nut
|
832501 |
— | ||
|
5
|
5
832502A1
Door
(MERCURY) |
832502A1 |
— | ||
|
5
|
5
832502A2
Door
(MARINER) |
832502A2 |
— | ||
|
6
|
6
832362
Screw (M6 X 10)(Starboard)
|
832362 |
— | ||
|
7
|
7
832370
Bolt (M5 X 20)
|
832370 |
— | ||
|
8
|
8
832371
Bolt (M6 X 12)
|
832371 |
— | ||
|
9
|
9
832392
Screw Self Tapping (M5 X 15)
|
832392 |
— | ||
|
10
|
10
832483
Starter Assembly Recoil
|
832483 |
— | ||
|
11
|
11
832486
Rope
|
832486 |
— | ||
|
12
|
12
832487
Handle
|
832487 |
— | ||
|
13
|
13
832488
Spring Recoil Starter
|
832488 |
— | ||
|
14
|
14
832489
Ratchet
|
832489 |
— | ||
|
15
|
15
832490
Washer
|
832490 |
— | ||
|
16
|
16
832491
E Ring
|
832491 |
— | ||
|
17
|
17
832492
Friction Plate
|
832492 |
— | ||
|
18
|
18
832493
Spring Friction
|
832493 |
— | ||
|
19
|
19
832484
Spring Return
|
832484 |
— | ||
|
20
|
20
832485
Pulley Starter
|
832485 |
— | ||
|
21
|
21
832355
Bolt
|
832355 |
— | ||
|
22
|
22
832351
Bolt
|
832351 |
— | ||
|
23
|
23
832353
Bolt
|
832353 |
— | ||
|
24
|
24
832350
Bolt
|
832350 |
— | ||
|
25
|
25
832381
Lockwasher
|
832381 |
— | ||
|
26
|
26
832504
Packing Cowl
|
832504 |
— | ||
|
27
|
27
832494
Mount Recoil Starter
|
832494 |
— |
