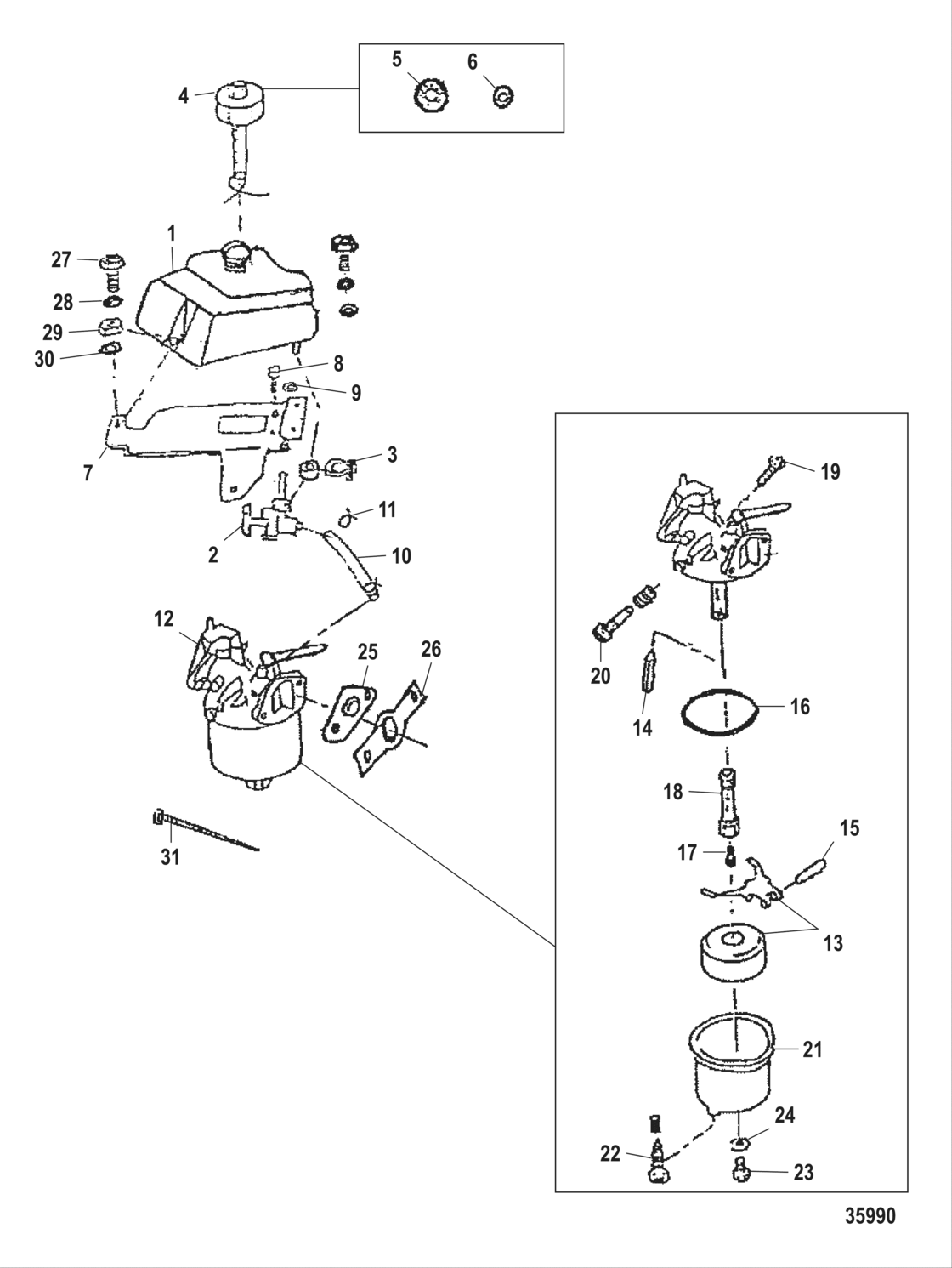

Fuel System Diagram Mercury-Mercruiser 2
- Power
- 2
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Country
- USA
- Серийный номер
- 0G413201 & Up
- Серия
- Thruster
- Кол-в цилиндров
- 1
- Подача топлива
- Карбюратор
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
832408
Tank Fuel
|
832408 |
— | ||
|
2
|
2
832409
Valve Fuel
|
832409 |
— | ||
|
3
|
3
832410
Clamp Assembly
|
832410 |
— | ||
|
4
|
4
832411
Cap Assembly Fuel Tank
|
832411 |
— | ||
|
5
|
5
832412
Gasket Cap
|
832412 |
— | ||
|
6
|
6
832413
Gasket Air Vent
|
832413 |
— | ||
|
7
|
7
832414
Bracket Fuel Tank
|
832414 |
— | ||
|
8
|
8
832366
Bolt (M5 X 16)
|
832366 |
— | ||
|
9
|
9
832379
Lockwasher
|
832379 |
— | ||
|
10
|
10
832415
Hose
|
832415 |
— | ||
|
11
|
11
832416
Clip
|
832416 |
— | ||
|
12
|
12
832417
Carburetor Assembly
|
832417 |
— | ||
|
13
|
13
832423
Float
|
832423 |
— | ||
|
14
|
14
832424
Needle Valve
|
832424 |
— | ||
|
15
|
15
832425
Pin Hinge
|
832425 |
— | ||
|
16
|
16
832422
O-Ring
|
832422 |
— | ||
|
17
|
17
832426
Main Jet
|
832426 |
— | ||
|
18
|
18
832427
Needle Jet
|
832427 |
— | ||
|
19
|
19
832428
Screw Idle Adjustment
|
832428 |
— | ||
|
20
|
20
832418
Screw Idle Mixture
|
832418 |
— | ||
|
21
|
21
832522
Float Chamber
|
832522 |
— | ||
|
22
|
22
832419
Screw
|
832419 |
— | ||
|
23
|
23
832420
Screw
|
832420 |
— | ||
|
24
|
24
832421
Gasket
|
832421 |
— | ||
|
25
|
25
832429
Plate
|
832429 |
— | ||
|
26
|
26
832430
Gasket
|
832430 |
— | ||
|
27
|
27
832351
Bolt
|
832351 |
— | ||
|
28
|
28
832381
Lockwasher
|
832381 |
— | ||
|
29
|
29
832374
Nut
|
832374 |
— | ||
|
30
|
30
832377
Washer (M6)
|
832377 |
— | ||
|
31
|
31
832431
Tie Strap
|
832431 |
— |
