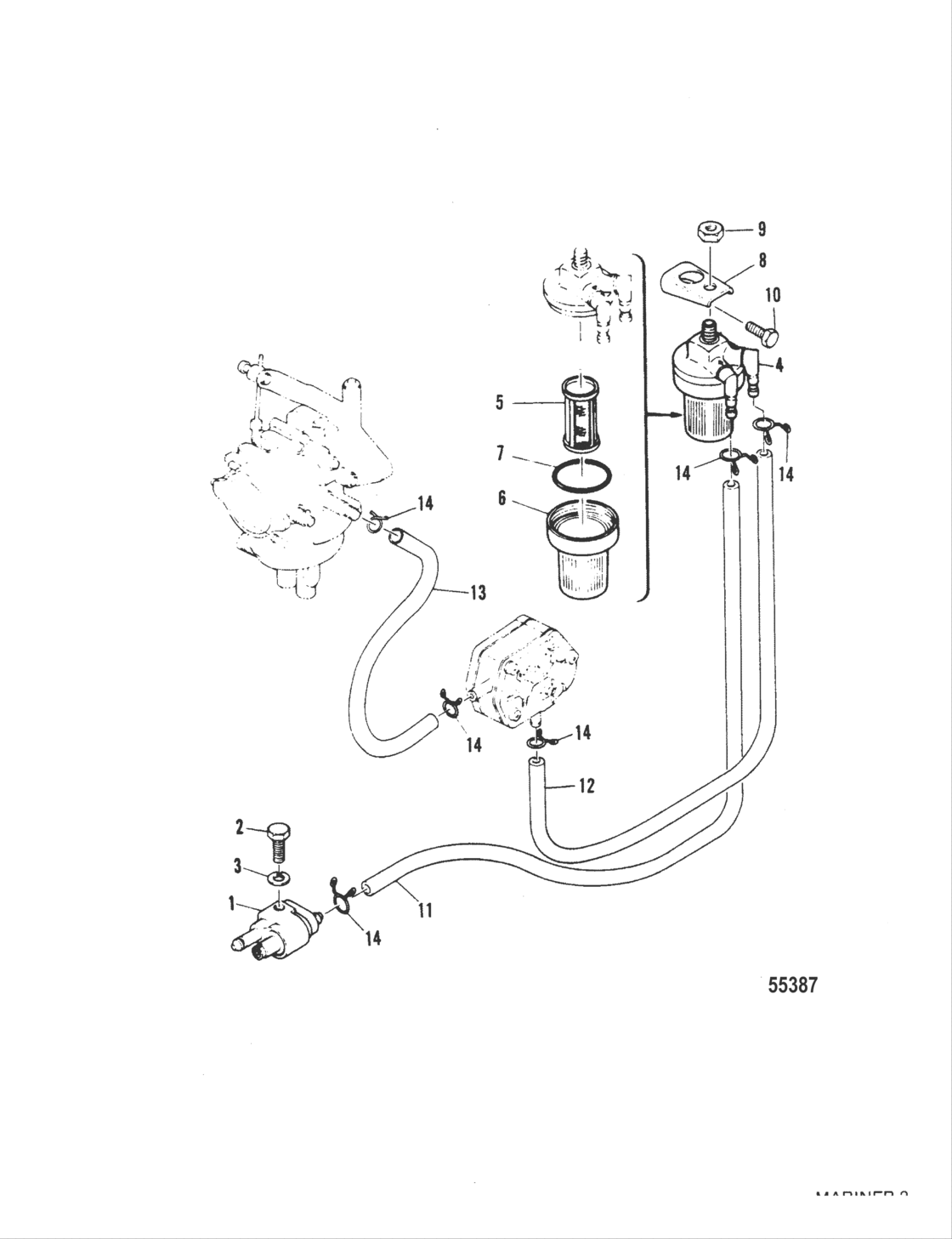

Fuel Lines And Filter Diagram Mercury-Mercruiser 20
- Power
- 20
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Country
- Canada
- Серийный номер
- 6A9-550694 & Up
- Серия
- Mariner
- Кол-в цилиндров
- 2
- Подача топлива
- Карбюратор
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
14187M New Genuine Part |
14187M |
US $78.72 |
||
| replacement | |||||
|
1
|
1
8M0121326
CONNECTOR-FUEL
|
8M0121326 |
— | ||
|
1
|
1
95483M New Genuine Part |
95483M |
US $78.72 |
||
| replacement | |||||
|
1
|
1
8M0121326
CONNECTOR-FUEL
|
8M0121326 |
— | ||
|
2
|
2
83539M Bolt (M6 X 20) |
83539M |
US $6.85 |
||
| replacement | |||||
|
2
|
2
84058M Bolt |
84058M |
US $6.85 |
||
|
3
|
3
82214M
Washer
|
82214M |
— | ||
|
4
|
4
11931M Filter Assembly |
11931M |
US $114.27 |
||
| replacement | |||||
|
4
|
4
8M0121336
FILTER ASSY
|
8M0121336 |
— | ||
|
5
|
5
11934M Filter |
11934M |
US $19.25 |
||
| replacement | |||||
|
5
|
5
826965T FILTER |
826965T |
US $19.25 |
||
|
6
|
6
11935M
N.l.a.
|
11935M |
— | ||
|
6
|
6
82784M
New Genuine Part
|
82784M |
— | ||
| replacement | |||||
|
6
|
6
11935M
N.l.a.
|
11935M |
— | ||
|
7
|
7
84957M O-Ring |
84957M |
US $5.79 |
||
|
8
|
8
80620M
New Genuine Part
|
80620M |
— | ||
|
9
|
9
82382M Nut |
82382M |
US $6.85 |
||
|
10
|
10
84303M
Bolt
|
84303M |
— | ||
| replacement | |||||
|
10
|
10
91772M
Bolt
|
91772M |
— | ||
|
11
|
11
84956M
Line Fuel Connector To Filter
|
84956M |
— | ||
| replacement | |||||
|
11
|
11
82012M
Hose
|
82012M |
— | ||
|
12
|
12
81566M
Line Fuel Fuel Filter To Fuel Pump
|
81566M |
— | ||
| replacement | |||||
|
12
|
12
81112M
Hose
|
81112M |
— | ||
|
13
|
13
80605M
Hose Pump To Carburetor
|
80605M |
— | ||
| replacement | |||||
|
13
|
13
81324M
Hose Exhuast Cover
|
81324M |
— | ||
|
14
|
14
82047M Clamp |
82047M |
US $6.85 |
||
