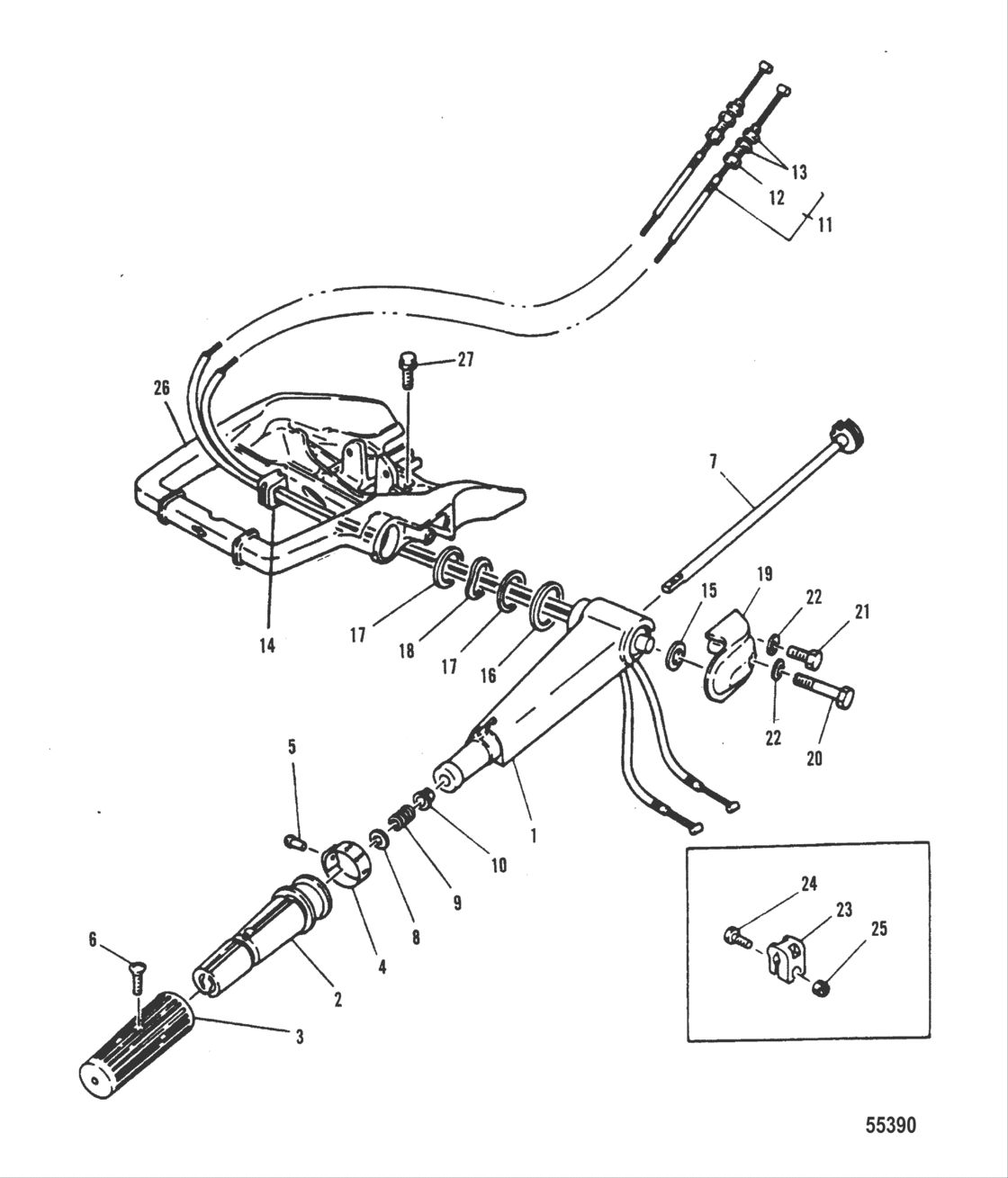

Steering Handle Diagram Mercury-Mercruiser 20
- Power
- 20
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Country
- Canada
- Серийный номер
- 6A9-550694 & Up
- Серия
- Mariner
- Кол-в цилиндров
- 2
- Подача топлива
- Карбюратор
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
0-1
|
0-1
95649M
N.l.a.
|
95649M |
— | ||
|
1
|
1
96664M
N.l.a.
|
96664M |
— | ||
|
2
|
2
81585M
New Genuine Part
|
81585M |
— | ||
|
3
|
3
95497M New Genuine Part |
95497M |
US $34.45 |
||
| replacement | |||||
|
3
|
3
8M0080456 GRIP |
8M0080456 |
US $34.45 |
||
|
4
|
4
41891M
N.l.a.
|
41891M |
— | ||
|
5
|
5
81907M
Rivet
|
81907M |
— | ||
|
6
|
6
84300M
Screw
|
84300M |
— | ||
| replacement | |||||
|
6
|
6
811916M
Screw
|
811916M |
— | ||
|
7
|
7
84856M New Genuine Part |
84856M |
US $29.66 |
||
|
8
|
8
82220M
Washer
|
82220M |
— | ||
|
9
|
9
82095M
Spring
|
82095M |
— | ||
|
10
|
10
81945M
Bushing
|
81945M |
— | ||
|
11
|
11
41892M New Genuine Part |
41892M |
US $30.34 |
||
|
12
|
12
81747M
Bolt
|
81747M |
— | ||
| replacement | |||||
|
12
|
12
815139M
Bolt
|
815139M |
— | ||
|
13
|
13
81765M
Nut
|
81765M |
— | ||
|
14
|
14
82064M
Grommet
|
82064M |
— | ||
|
15
|
15
82119M
Spacer
|
82119M |
— | ||
|
16
|
16
81861M
Spacer
|
81861M |
— | ||
|
17
|
17
84850M
Washer
|
84850M |
— | ||
|
18
|
18
84851M
Washer Wave
|
84851M |
— | ||
|
19
|
19
84852M
N.l.a.
|
84852M |
— | ||
|
20
|
20
84853M
Bolt
|
84853M |
— | ||
| replacement | |||||
|
20
|
20
84931M
Bolt
|
84931M |
— | ||
|
21
|
21
84058M Bolt |
84058M |
US $6.85 |
||
|
22
|
22
82214M
Washer
|
82214M |
— | ||
|
23
|
23
82895M
New Genuine Part
|
82895M |
— | ||
|
24
|
24
84058M Bolt |
84058M |
US $6.85 |
||
|
25
|
25
83056M
Nut
|
83056M |
— | ||
|
26
|
26
81138M
New Genuine Part
|
81138M |
— | ||
| replacement | |||||
|
26
|
26
19113M
New Genuine Part
|
19113M |
— | ||
|
27
|
27
84830M Bolt |
84830M |
US $6.85 |
||
