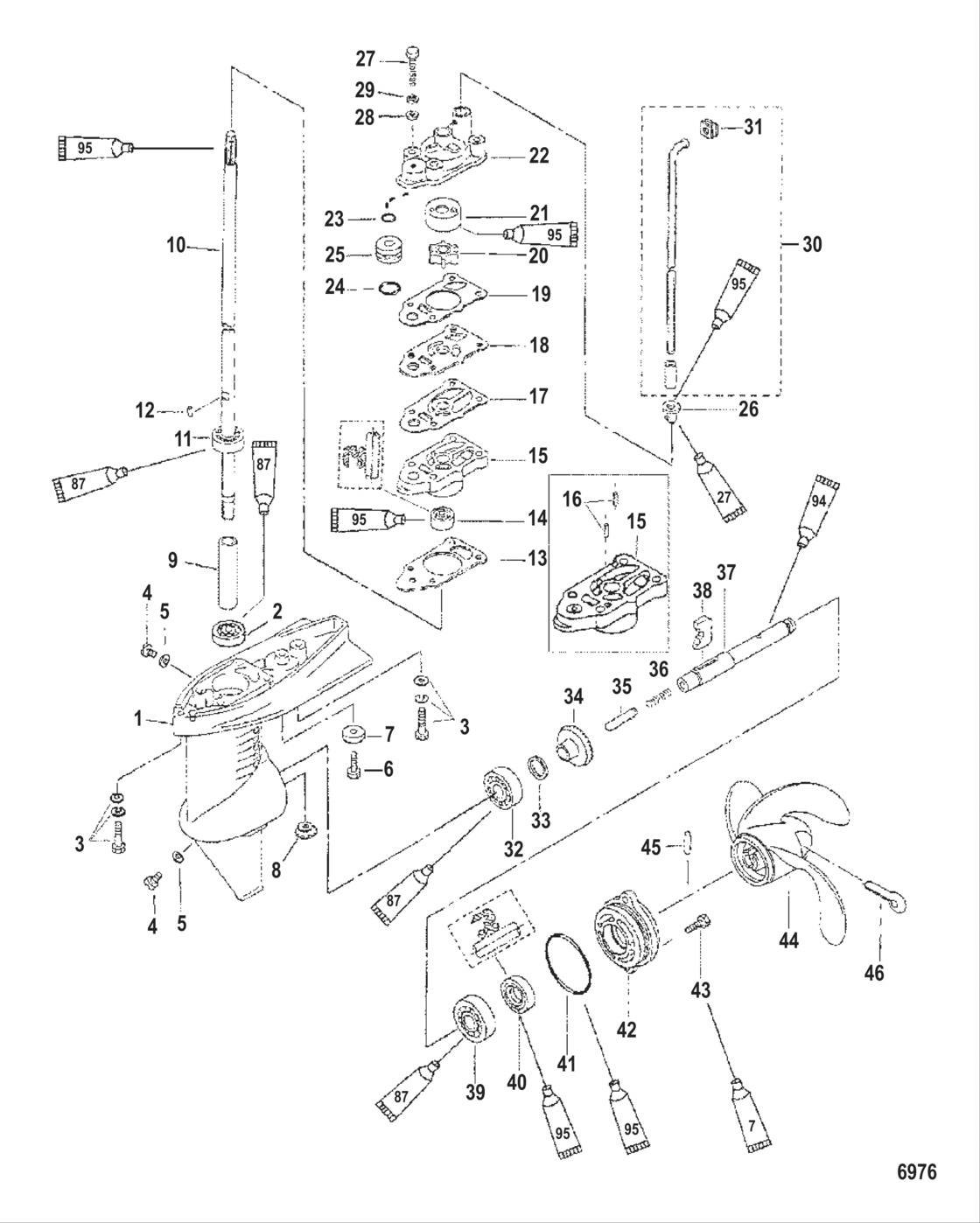

Gear Housing Assembly 3.3 Horsepower Diagram Mercury-Mercruiser 3.3
- Power
- 3.3
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Country
- USA
- Серийный номер
- 0T894577 & Up
- Кол-в цилиндров
- 1
- Подача топлива
- Карбюратор
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
825126T06 Корпус редуктора |
825126T06 |
US $212.78 |
||
|
2
|
2
95342 Bearing, ball, driveshaft |
95342 |
US $26.90 |
||
|
3
|
3
82304232 Bolt |
82304232 |
US $4.99 |
||
|
4
|
4
953683 Oil plug |
953683 |
US $9.28 |
||
|
5
|
5
95220
Gasket, oil plug
|
95220 |
— | ||
|
6
|
6
16832 Bolt |
16832 |
US $3.82 |
||
|
7
|
7
823913Q Anode 2 |
823913Q |
US $20.34 |
||
|
8
|
8
16138
Gear
|
16138 |
— | ||
|
9
|
9
8104711 Spacer |
8104711 |
US $15.07 |
||
|
10
|
10
823048 DriveshaftShort |
823048 |
US $95.22 |
||
| replacement | |||||
|
10
|
10
8M0116958 DRIVESHAFTShort |
8M0116958 |
US $95.22 |
||
|
10
|
10
8230481 DriveshaftLong |
8230481 |
US $179.22 |
||
| replacement | |||||
|
10
|
10
8M0116959 DRIVESHAFT SHORTLong |
8M0116959 |
US $179.22 |
||
|
11
|
11
95342 Bearing, ball, driveshaft |
95342 |
US $26.90 |
||
|
12
|
12
16155 Key |
16155 |
US $3.23 |
||
|
13
|
13
161642 Gasket |
161642 |
US $5.79 |
||
| replacement | |||||
|
13
|
13
898101333 Gasket, water pump housing - lower |
898101333 |
US $5.79 |
||
|
14
|
14
161621 Seal, oil |
161621 |
US $18.67 |
||
|
15
|
15
161613 Housing, lower water pump |
161613 |
US $93.89 |
||
| replacement | |||||
|
15
|
15
815113T03 HOUSING W/P |
815113T03 |
US $93.89 |
||
|
16
|
16
9521811 Pin, roll - stainless steel |
9521811 |
US $3.60 |
||
|
17
|
17
161603 Gasket |
161603 |
US $4.99 |
||
|
18
|
18
161591 Plate-guide |
161591 |
US $11.82 |
||
|
19
|
19
161588 Gasket |
161588 |
US $4.29 |
||
| replacement | |||||
|
19
|
19
898101331 Gasket, water pump housing - upper |
898101331 |
US $4.29 |
||
|
20
|
20
161543 Impeller |
161543 |
US $39.34 |
||
|
21
|
21
161571 liner |
161571 |
from US $12.85 |
||
|
22
|
22
161561 Housing, upper water pump |
161561 |
US $70.22 |
||
|
23
|
23
161771 O-ring |
161771 |
US $3.93 |
||
|
24
|
24
161781 O-ring |
161781 |
US $4.40 |
||
|
25
|
25
161761 Bushing |
161761 |
US $5.10 |
||
|
26
|
26
953611 Grommet |
953611 |
US $4.18 |
||
|
27
|
27
161251 Bolt |
161251 |
US $6.14 |
||
| replacement | |||||
|
27
|
27
8M0063198 BOLT |
8M0063198 |
US $6.14 |
||
|
28
|
28
16826 Washer, stainless steel |
16826 |
US $3.40 |
||
|
29
|
29
400256 Lockwasher |
400256 |
US $1.62 |
||
|
30
|
30
953591 Tube, waterShort |
953591 |
US $40.90 |
||
|
30
|
30
953592
Tube, water
Long |
953592 |
— | ||
|
31
|
31
953601 Grommet |
953601 |
US $3.25 |
||
|
32
|
32
16128 Bearing, ball |
16128 |
US $30.34 |
||
|
33
|
33
16141 Shim |
16141 |
US $6.45 |
||
|
33
|
33
813277 Shim |
813277 |
US $8.46 |
||
|
34
|
34
878343
Gear
|
878343 |
— | ||
| replacement | |||||
|
34
|
34
812944
Gear
|
812944 |
— | ||
|
35
|
35
823050 New Genuine Part |
823050 |
US $15.31 |
||
|
36
|
36
176671 Spring |
176671 |
US $4.86 |
||
|
37
|
37
952911 Propeller Shaft |
952911 |
US $210.67 |
||
|
38
|
38
823049 Clutch |
823049 |
US $87.01 |
||
|
39
|
39
95344 Bearing, ball, driveshaft |
95344 |
US $36.04 |
||
|
40
|
40
95348 Seal, oil, propeller shaft |
95348 |
US $18.14 |
||
|
41
|
41
16131 O-ring |
16131 |
US $11.22 |
||
|
42
|
42
825116 HOUSING |
825116 |
US $82.74 |
||
|
43
|
43
167051 Bolt |
167051 |
US $6.27 |
||
|
44
|
44
8150841 Propeller, aluminum |
8150841 |
US $104.45 |
||
| replacement | |||||
|
44
|
44
815084A02 BLKMAX 7 3/8 X 7 RH |
815084A02 |
US $104.45 |
||
|
44
|
44
8150831 Propeller, plastic |
8150831 |
US $72.86 |
||
| replacement | |||||
|
44
|
44
815083A02 BLKMAX 7 3/8 X 7 RH |
815083A02 |
US $72.86 |
||
|
45
|
45
815111 Shear pin, stainless steel |
815111 |
US $11.87 |
||
| replacement | |||||
|
45
|
45
815111Q02 Shear Pin Kit Brass |
815111Q02 |
US $11.87 |
||
|
45
|
45
8151111 Pin, brass |
8151111 |
US $11.87 |
||
| replacement | |||||
|
45
|
45
815111Q02 Shear Pin Kit Brass |
815111Q02 |
US $11.87 |
||
|
46
|
46
95295 Cotter pin, propeller |
95295 |
US $7.10 |
||
|
NI
|
NI
825126T04 Gear Housing Assembly CompleteShort |
825126T04 |
US $648.10 |
||
| replacement | |||||
|
NI
|
NI
8M0122311 GEAR HOUSINGShort |
8M0122311 |
US $648.10 |
||
|
NI
|
NI
825126T05
Gear Housing Assembly Complete
Long |
825126T05 |
— | ||
| replacement | |||||
|
NI
|
NI
8M0122312
GEAR HOUSING
Long |
8M0122312 |
— | ||
|
NI
|
NI
95220A4 Gasket Set Lower Unit |
95220A4 |
US $43.44 |
||
| replacement | |||||
|
NI
|
NI
8M0082881 GASKET SET |
8M0082881 |
US $43.44 |
||
|
NI
|
NI
16159A2 Repair kit-w/p |
16159A2 |
US $79.55 |
||
| replacement | |||||
|
NI
|
NI
8M0080264 Water Pump Repair Kit |
8M0080264 |
US $79.55 |
||
