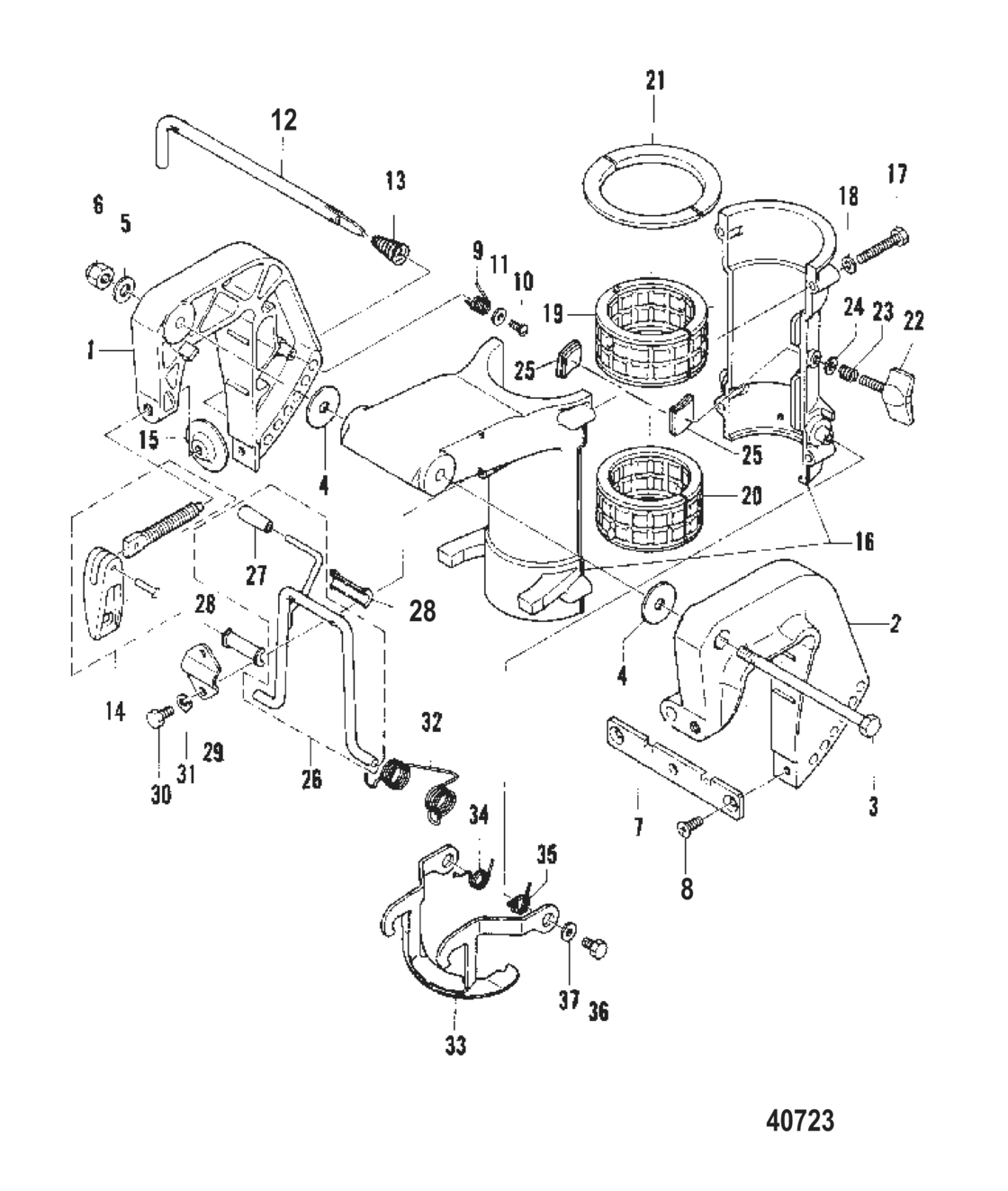

Clamp And Swivel Brackets Diagram Mercury-Mercruiser 5
- Power
- 5
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Country
- USA
- Серийный номер
- 0A809601 THRU 0A855096
- Серия
- International
- Кол-в цилиндров
- 1
- Подача топлива
- Карбюратор
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
9622 Clamp bracket |
9622 |
US $171.33 |
||
| replacement | |||||
|
1
|
1
9622T6 Clamp Bracket Starboard |
9622T6 |
US $218.82 |
||
|
2
|
2
9623 Clamp bracket |
9623 |
US $162 |
||
| replacement | |||||
|
2
|
2
96231 Clamp bracket, port |
96231 |
US $162 |
||
|
3
|
3
95373 Bolt, clamp bracket |
95373 |
US $25.01 |
||
| replacement | |||||
|
3
|
3
898101337 Screw |
898101337 |
US $25.01 |
||
|
4
|
4
95375 Washer, clamp bracket screw |
95375 |
US $3.94 |
||
|
5
|
5
16192 Washer |
16192 |
US $3.14 |
||
|
6
|
6
16829 Nut, clamp bracket bolt |
16829 |
US $8.58 |
||
| replacement | |||||
|
6
|
6
815088 Nut |
815088 |
US $8.58 |
||
|
7
|
7
16193 New Genuine Part |
16193 |
US $14.90 |
||
|
8
|
8
16194 Screw |
16194 |
US $3.25 |
||
|
9
|
9
16195 Spring |
16195 |
US $6.85 |
||
| replacement | |||||
|
9
|
9
161951 Spring |
161951 |
US $6.85 |
||
|
10
|
10
16196 Screw |
16196 |
US $2.54 |
||
|
11
|
11
16197 Washer |
16197 |
US $3.36 |
||
|
12
|
12
16198 New Genuine Part |
16198 |
US $49.01 |
||
| replacement | |||||
|
12
|
12
16198004 Thrust rod |
16198004 |
US $49.01 |
||
|
13
|
13
16199
Spring
|
16199 |
— | ||
| replacement | |||||
|
13
|
13
8150931
Spring
|
8150931 |
— | ||
|
14
|
14
16200
Clamp screw assembly
|
16200 |
— | ||
|
15
|
15
95379
Pad, thumb screw
|
95379 |
— | ||
|
16
|
16
813029
Swivel bracket
[USA-A838181/Belgium-9542671] & Up |
813029 |
— | ||
| replacement | |||||
|
16
|
16
813029T1 Swivel Bracket[USA-A838181/Belgium-9542671] & Up |
813029T1 |
US $504 |
||
|
16
|
16
9624
Swivel bracket
[USA-A838180/Belgium-9542670] & Below |
9624 |
— | ||
| replacement | |||||
|
16
|
16
813029T1 Swivel Bracket[USA-A838180/Belgium-9542670] & Below |
813029T1 |
US $504 |
||
|
17
|
17
16201 Bolt, long shaft |
16201 |
US $11.47 |
||
|
18
|
18
16826 Washer, stainless steel |
16826 |
US $3.40 |
||
|
19
|
19
16202 Bushing, swivel bracket |
16202 |
US $24.34 |
||
| replacement | |||||
|
19
|
19
8M0057473 BUSHING |
8M0057473 |
US $24.34 |
||
|
20
|
20
16203
Bushing
|
16203 |
— | ||
|
21
|
21
16204 New Genuine Part |
16204 |
US $17.10 |
||
|
22
|
22
16206 Screw |
16206 |
US $44.45 |
||
| replacement | |||||
|
22
|
22
162061 Adjusting screw |
162061 |
US $44.45 |
||
|
23
|
23
95383 Spring, adjusting screw |
95383 |
US $9.04 |
||
| replacement | |||||
|
23
|
23
953838 Spring |
953838 |
US $9.04 |
||
|
25
|
25
16205 New Genuine Part |
16205 |
US $19.55 |
||
| replacement | |||||
|
25
|
25
162051 Friction plate |
162051 |
US $19.55 |
||
|
26
|
26
16207
New Genuine Part
|
16207 |
— | ||
| replacement | |||||
|
26
|
26
8M0045584 STOP-TILT |
8M0045584 |
US $125.33 |
||
|
27
|
27
16208
New Genuine Part
|
16208 |
— | ||
|
28
|
28
16209
Bushing, tilt stop
|
16209 |
— | ||
|
29
|
29
16210
New Genuine Part
|
16210 |
— | ||
| replacement | |||||
|
29
|
29
16210002 Set plate |
16210002 |
US $6.90 |
||
|
30
|
30
16211 Bolt, set plate |
16211 |
US $4.86 |
||
| replacement | |||||
|
30
|
30
95396 Bolt, starter housing |
95396 |
US $4.86 |
||
|
31
|
31
16819 Lockwasher, cover hook bolt |
16819 |
US $1.62 |
||
| replacement | |||||
|
31
|
31
400256 Lockwasher |
400256 |
US $1.62 |
||
|
32
|
32
16212 Spring |
16212 |
US $35.44 |
||
|
33
|
33
16213 New Genuine Part |
16213 |
US $103.33 |
||
|
34
|
34
16215 Spring |
16215 |
US $7.89 |
||
|
35
|
35
16216 Spring |
16216 |
US $9.15 |
||
|
36
|
36
16214 Bolt |
16214 |
US $3.71 |
||
| replacement | |||||
|
36
|
36
16223 Bolt |
16223 |
US $3.71 |
||
|
37
|
37
16826 Washer, stainless steel |
16826 |
US $3.40 |
||
