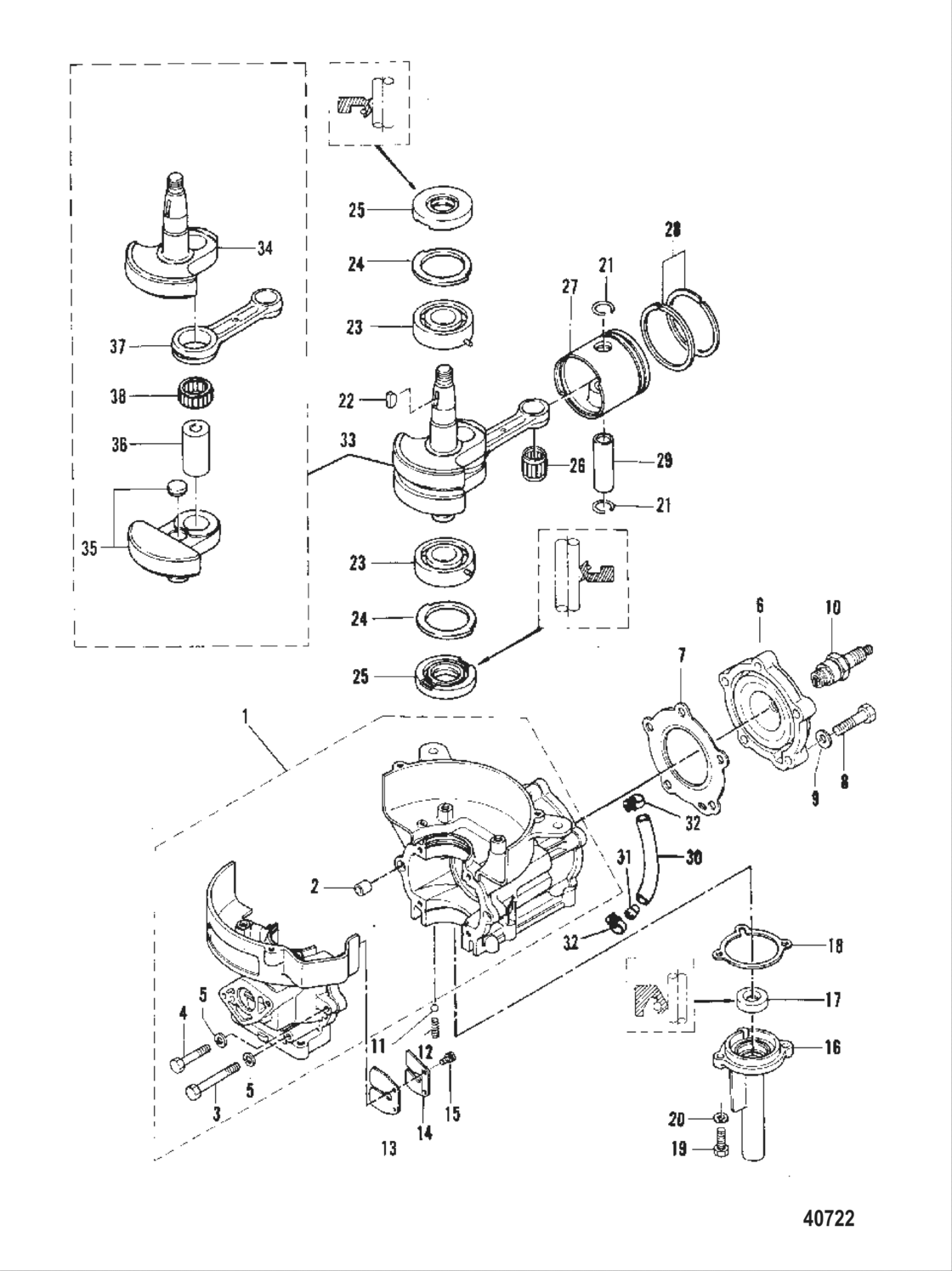

Cylinder Block/crankshaft/piston Diagram Mercury-Mercruiser 5
- Power
- 5
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Country
- USA
- Серийный номер
- 0A809601 THRU 0A855096
- Серия
- International
- Кол-в цилиндров
- 1
- Подача топлива
- Карбюратор
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
9629
Cylinder block
[USA-A838180/Belgium-9542670] & Below |
9629 |
— | ||
|
1
|
1
812938
Cylinder block
[USA-A838181/Belgium-9542671] & Up |
812938 |
— | ||
|
2
|
2
95218
Pin, dowel
|
95218 |
— | ||
|
3
|
3
16695 Bolt |
16695 |
US $3.47 |
||
|
4
|
4
16696 Bolt |
16696 |
US $2.78 |
||
|
5
|
5
16818 Lockwasher |
16818 |
US $1.28 |
||
|
6
|
6
9630 Cylinder head |
9630 |
US $79.33 |
||
| replacement | |||||
|
6
|
6
96301 Cylinder head |
96301 |
US $79.33 |
||
|
7
|
7
16697 Gasket, cylinder head[USA-A838180/Belgium-9542670] & Below |
16697 |
US $58.78 |
||
| replacement | |||||
|
7
|
7
812939015 GASKET[USA-A838180/Belgium-9542670] & Below |
812939015 |
US $72.35 |
||
|
7
|
7
812939
Gasket
[USA-A838181/Belgium-9542671] & Up |
812939 |
— | ||
| replacement | |||||
|
7
|
7
812939015 GASKET[USA-A838181/Belgium-9542671] & Up |
812939015 |
US $72.35 |
||
|
8
|
8
16698 Bolt |
16698 |
US $8.46 |
||
| replacement | |||||
|
8
|
8
16126 Bolt |
16126 |
US $8.46 |
||
|
9
|
9
16699 Washer, cylinder head bolt |
16699 |
US $1.28 |
||
| replacement | |||||
|
9
|
9
4002217 Washer |
4002217 |
US $1.28 |
||
|
10
|
10
97184 Spark Plug |
97184 |
US $5.55 |
||
| replacement | |||||
|
10
|
10
8M0114744 S PLUG BP7HS@4 |
8M0114744 |
US $7.51 |
||
|
11
|
11
16700 Check valve |
16700 |
US $3.14 |
||
|
12
|
12
16701
Spring, check valve
|
16701 |
— | ||
|
13
|
13
16706 Reed valve |
16706 |
US $18.21 |
||
|
14
|
14
16707 Stop(4 H.P.) |
16707 |
US $7.18 |
||
|
14
|
14
17666 Stop(5 H.P.) |
17666 |
US $8.46 |
||
|
15
|
15
16820 Screw |
16820 |
US $1.28 |
||
|
16
|
16
16702 New Genuine Part |
16702 |
US $64.78 |
||
| replacement | |||||
|
16
|
16
8150162 New Genuine Part |
8150162 |
US $64.78 |
||
|
17
|
17
16703 Seal, oil |
16703 |
US $11.14 |
||
| replacement | |||||
|
17
|
17
8M0101649 SEAL |
8M0101649 |
US $11.14 |
||
|
18
|
18
16704 Gasket |
16704 |
US $4.56 |
||
|
19
|
19
16705 Bolt |
16705 |
US $3.60 |
||
|
20
|
20
16819 Lockwasher, cover hook bolt |
16819 |
US $1.62 |
||
| replacement | |||||
|
20
|
20
400256 Lockwasher |
400256 |
US $1.62 |
||
|
21
|
21
16057 Clip |
16057 |
US $2.55 |
||
|
22
|
22
16053 Key |
16053 |
US $11.22 |
||
|
23
|
23
16049 Bearing, ball |
16049 |
US $41.10 |
||
|
24
|
24
16050 Plate-thrust |
16050 |
US $3.33 |
||
| replacement | |||||
|
24
|
24
8537122 Thrust plate |
8537122 |
US $3.33 |
||
|
25
|
25
16051 Seal, oil |
16051 |
US $19.22 |
||
|
26
|
26
16052 Bearing, roller |
16052 |
US $34.99 |
||
|
27
|
27
9615
Piston
(STANDARD) |
9615 |
— | ||
| replacement | |||||
|
27
|
27
9615T
Piston
(STANDARD) |
9615T |
— | ||
|
27
|
27
9616
Piston
(.5MM OVERSIZE) |
9616 |
— | ||
| replacement | |||||
|
27
|
27
9616T
Piston
(.5MM OVERSIZE) |
9616T |
— | ||
|
28
|
28
16054 Ring, piston(STANDARD) |
16054 |
US $29.44 |
||
| replacement | |||||
|
28
|
28
8M0080357 PISTON RING SET(STANDARD) |
8M0080357 |
US $36.30 |
||
|
28
|
28
16055 Ring, piston(.5MM OVERSIZE) |
16055 |
US $50.22 |
||
| replacement | |||||
|
28
|
28
8M0080356 PISTON RING SET(.5MM OVERSIZE) |
8M0080356 |
US $50.22 |
||
|
29
|
29
16056 Pin, piston |
16056 |
US $19.22 |
||
| replacement | |||||
|
29
|
29
898101918 PIN-PISTON |
898101918 |
US $23 |
||
|
30
|
30
812940 Hose[USA-A838181/Belgium-9542671] & Up |
812940 |
US $23.10 |
||
| replacement | |||||
|
30
|
30
8M0057112 Hose[USA-A838181/Belgium-9542671] & Up |
8M0057112 |
US $23.10 |
||
|
31
|
31
42657A1
Check valve assembly
[USA-A838181/Belgium-9542671] & Up |
42657A1 |
— | ||
| replacement | |||||
|
31
|
31
42657A3 CHECK VALVE[USA-A838181/Belgium-9542671] & Up |
42657A3 |
US $7.45 |
||
|
32
|
32
95224 Clip, drain hose[USA-A838181/Belgium-9542671] & Up |
95224 |
US $3.14 |
||
|
33
|
33
9614 Crankshaft assembly |
9614 |
US $393.33 |
||
| replacement | |||||
|
33
|
33
879147T15 CRANKSHAFT |
879147T15 |
US $393.33 |
||
|
34
|
34
813044
Crankshaft
|
813044 |
— | ||
|
35
|
35
813045
Crankshaft
|
813045 |
— | ||
|
36
|
36
813046 Pin, crank |
813046 |
US $23.10 |
||
| replacement | |||||
|
36
|
36
813046002 CRANK PIN |
813046002 |
US $23.10 |
||
|
37
|
37
813047 Connecting rod |
813047 |
US $90.78 |
||
|
38
|
38
813048 Bearing |
813048 |
US $23.89 |
||
|
NI
|
NI
19252 New Genuine Part(4 H.P.) [USA-A838180/Belgium-9542670] & Below |
19252 |
US $1,337.14 |
||
| replacement | |||||
|
NI
|
NI
815040T05
PH 4 2S
(4 H.P.) [USA-A838180/Belgium-9542670] & Below |
815040T05 |
— | ||
|
NI
|
NI
813024
New Genuine Part
(4 H.P.) [USA-A838181/Belgium-9542671] & Up |
813024 |
— | ||
|
NI
|
NI
19253
N.l.a.
(5 H.P.) [USA-A838180/Belgium-9542670] & Below |
19253 |
— | ||
|
NI
|
NI
813025
New Genuine Part
(5 H.P.) [USA-A838181/Belgium-9542671] & Up |
813025 |
— | ||
