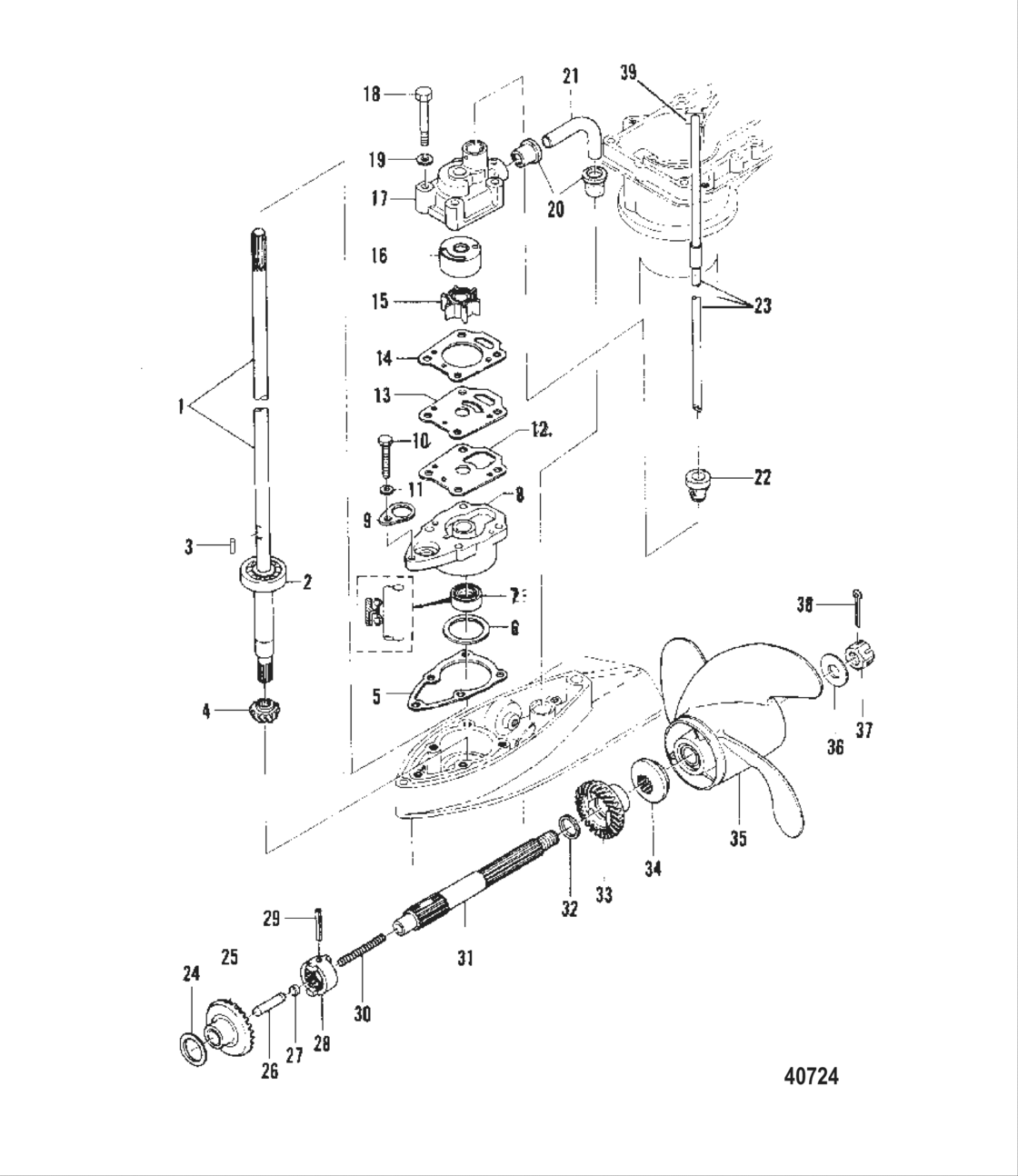

Gear Housing Components Diagram Mercury-Mercruiser 5
- Power
- 5
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Country
- USA
- Серийный номер
- 0A809601 THRU 0A855096
- Серия
- International
- Кол-в цилиндров
- 1
- Подача топлива
- Карбюратор
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
16135 Driveshaft(SHORT) |
16135 |
US $239.78 |
||
| replacement | |||||
|
1
|
1
8M0076367 DRIVESHAFT(SHORT) |
8M0076367 |
US $230.32 |
||
|
1
|
1
16136 Driveshaft(LONG) |
16136 |
US $242.34 |
||
| replacement | |||||
|
1
|
1
8M0076368 DRIVESHAFT(LONG) |
8M0076368 |
US $242.34 |
||
|
2
|
2
95347 Bearing, propeller shaft |
95347 |
US $32.38 |
||
|
3
|
3
16155 Key |
16155 |
US $3.23 |
||
|
4
|
4
16138
Gear
|
16138 |
— | ||
|
5
|
5
16164 Gasket |
16164 |
US $5.79 |
||
| replacement | |||||
|
5
|
5
16164003 Gasket |
16164003 |
US $6.90 |
||
|
6
|
6
16163 Shim |
16163 |
US $6.03 |
||
| replacement | |||||
|
6
|
6
161631 Shim |
161631 |
US $6.03 |
||
|
6
|
6
813276 Shim |
813276 |
US $7.78 |
||
| replacement | |||||
|
6
|
6
8132761 Shim |
8132761 |
US $7.78 |
||
|
7
|
7
16162 Seal, oil |
16162 |
US $20.20 |
||
|
8
|
8
16161
Housing, water pump
|
16161 |
— | ||
|
9
|
9
16165 New Genuine Part |
16165 |
US $6.03 |
||
|
10
|
10
16166 Bolt, stainless steel, starter housing |
16166 |
US $3.47 |
||
| replacement | |||||
|
10
|
10
4000330 Screw, adaptor |
4000330 |
US $4.54 |
||
|
11
|
11
16826 Washer, stainless steel |
16826 |
US $3.40 |
||
|
12
|
12
16160 Gasket |
16160 |
US $4.64 |
||
| replacement | |||||
|
12
|
12
16160004 Gasket |
16160004 |
US $5.51 |
||
|
13
|
13
16159 Plate-guide |
16159 |
US $11.36 |
||
|
14
|
14
16158 Gasket |
16158 |
US $4.53 |
||
| replacement | |||||
|
14
|
14
16158009 Gasket |
16158009 |
US $3.50 |
||
|
15
|
15
16154 Impeller |
16154 |
US $28.78 |
||
| replacement | |||||
|
15
|
15
161543 Impeller |
161543 |
US $39.34 |
||
|
16
|
16
16157 New Genuine Part |
16157 |
US $24.11 |
||
|
17
|
17
16156 Housing, upper water pump |
16156 |
US $75.22 |
||
|
18
|
18
16125 Bolt, gear housing |
16125 |
US $7.31 |
||
|
19
|
19
16826 Washer, stainless steel |
16826 |
US $3.40 |
||
|
20
|
20
16168 Seal |
16168 |
US $7.75 |
||
|
21
|
21
16167 Hose |
16167 |
US $15.42 |
||
|
22
|
22
16171 Seal |
16171 |
US $5.73 |
||
|
23
|
23
16169 Tube, water(SHORT) |
16169 |
US $64.34 |
||
|
23
|
23
16170 Tube, water(LONG) |
16170 |
US $53.10 |
||
|
24
|
24
16141 Shim |
16141 |
US $6.45 |
||
|
24
|
24
813277 Shim |
813277 |
US $8.46 |
||
|
25
|
25
812944
Gear
[USA-A838181/Belgium-9542671] & Up |
812944 |
— | ||
|
25
|
25
16137
Gear, propeller shaft
[USA-A838180/Belgium-9542670] & Below |
16137 |
— | ||
| replacement | |||||
|
25
|
25
812944
Gear
[USA-A838180/Belgium-9542670] & Below |
812944 |
— | ||
|
26
|
26
16152 CAM Follower |
16152 |
US $15.71 |
||
|
27
|
27
16153 RETAINER |
16153 |
US $5.62 |
||
|
28
|
28
812946 Clutch[USA-A838181/Belgium-9542671] & Up |
812946 |
US $108.34 |
||
|
28
|
28
16149
Clutch
[USA-A838180/Belgium-9542670] & Below |
16149 |
— | ||
|
29
|
29
16150 Pin, clutch |
16150 |
US $4.15 |
||
|
30
|
30
17667 Spring |
17667 |
US $6.29 |
||
|
31
|
31
19513 Propeller Shaft[USA-A828331/Belgium-9523184] & Up |
19513 |
US $244.22 |
||
| replacement | |||||
|
31
|
31
195133 Propeller Shaft[USA-A828331/Belgium-9523184] & Up |
195133 |
US $234.58 |
||
|
31
|
31
16148 Propeller Shaft[USA-A828330/Belgium-9523183] & Below |
16148 |
US $244.22 |
||
| replacement | |||||
|
31
|
31
195133 Propeller Shaft[USA-A828330/Belgium-9523183] & Below |
195133 |
US $234.58 |
||
|
32
|
32
16140 Washer |
16140 |
US $8 |
||
|
33
|
33
812945
Gear, propeller shaft
[USA-A838181/Belgium-9542671] & Up |
812945 |
— | ||
| replacement | |||||
|
33
|
33
8129451
Gear, reverse
[USA-A838181/Belgium-9542671] & Up |
8129451 |
— | ||
|
33
|
33
16139
Gear, propeller shaft
[USA-A838180/Belgium-9542670] & Below |
16139 |
— | ||
| replacement | |||||
|
33
|
33
8129451
Gear, reverse
[USA-A838180/Belgium-9542670] & Below |
8129451 |
— | ||
|
34
|
34
16145 New Genuine Part |
16145 |
US $14.24 |
||
| replacement | |||||
|
34
|
34
16145Q01 Thrustwasher2 |
16145Q01 |
US $14.24 |
||
|
35
|
35
812949 Propeller[USA-A828331/Belgium-9523184] & Up |
812949 |
US $102.51 |
||
| replacement | |||||
|
35
|
35
812949A02 Propeller (8.4 X 7 X 3Rh)[USA-A828331/Belgium-9523184] & Up |
812949A02 |
US $102.51 |
||
|
35
|
35
16142 Propeller[USA-A828330/Belgium-9523183] & Below |
16142 |
US $102.51 |
||
| replacement | |||||
|
35
|
35
812949A02 Propeller (8.4 X 7 X 3Rh)[USA-A828330/Belgium-9523183] & Below |
812949A02 |
US $102.51 |
||
|
35
|
35
812950 Propeller[USA-A829031/Belgium-9523184] & Up |
812950 |
US $102.51 |
||
| replacement | |||||
|
35
|
35
812950A02 Propeller[USA-A829031/Belgium-9523184] & Up |
812950A02 |
US $137.46 |
||
|
35
|
35
16143 Propeller[USA-A829030/Belgium-9523183] & Below |
16143 |
US $102.51 |
||
| replacement | |||||
|
35
|
35
812950A02 Propeller[USA-A829030/Belgium-9523183] & Below |
812950A02 |
US $137.46 |
||
|
35
|
35
16144
Propeller
|
16144 |
— | ||
| replacement | |||||
|
35
|
35
16144A01
Propeller
|
16144A01 |
— | ||
|
35
|
35
812951A1 Propeller(SAILPOWER) , |
812951A1 |
US $205.09 |
||
| replacement | |||||
|
35
|
35
812951A02 Propeller(SAILPOWER) , |
812951A02 |
US $205.09 |
||
|
35
|
35
16836A1 Propeller(SAILPOWER) , |
16836A1 |
US $205.09 |
||
| replacement | |||||
|
35
|
35
812951A02 Propeller(SAILPOWER) , |
812951A02 |
US $205.09 |
||
|
36
|
36
16146 Washer |
16146 |
US $11.87 |
||
|
37
|
37
16147 Prop nut |
16147 |
US $19.01 |
||
|
38
|
38
16073 Cotter pin, c.d. unit |
16073 |
US $2.75 |
||
| replacement | |||||
|
38
|
38
815026 Cotter pin |
815026 |
US $3.66 |
||
|
39
|
39
18876 Grommet |
18876 |
US $10.54 |
||
