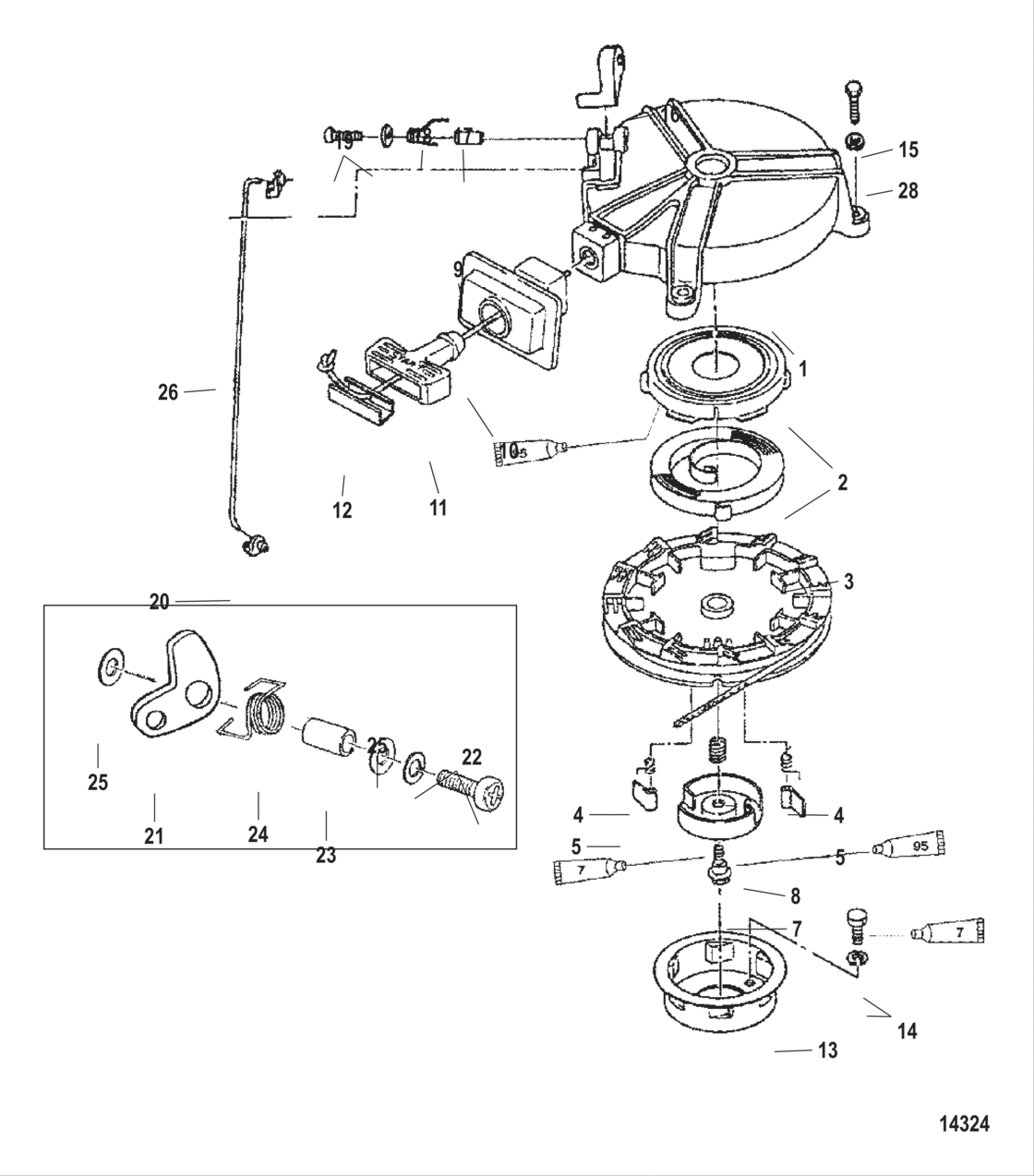

Recoil Starter Diagram Mercury-Mercruiser 5
- Power
- 5
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Country
- USA
- Серийный номер
- 0T894439 & Up
- Кол-в цилиндров
- 1
- Подача топлива
- Карбюратор
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
812632
New Genuine Part
|
812632 |
— | ||
| replacement | |||||
|
1
|
1
812632002 New Genuine Part |
812632002 |
US $131.75 |
||
|
2
|
2
812645T Spring Set Starter |
812645T |
US $82.82 |
||
|
3
|
3
812633 Sheeve-starter |
812633 |
US $86.67 |
||
|
4
|
4
812634 Spring, return |
812634 |
US $3.36 |
||
|
5
|
5
812635 New Genuine Part |
812635 |
US $12.80 |
||
| replacement | |||||
|
5
|
5
8M0060217 RATCHET |
8M0060217 |
US $10.43 |
||
|
6
|
6
812636 Spring, friction |
812636 |
US $3.25 |
||
|
7
|
7
812637 Bolt |
812637 |
US $5.46 |
||
| replacement | |||||
|
7
|
7
8M0060218 BOLT |
8M0060218 |
US $5.46 |
||
|
8
|
8
812638 Friction plate |
812638 |
US $22.34 |
||
|
9
|
9
161101 N.l.a. |
161101 |
US $54.45 |
||
|
10
|
10
850057Q02 Rope |
850057Q02 |
US $16.11 |
||
| replacement | |||||
|
10
|
10
8M0110704 STARTER ROPE |
8M0110704 |
US $16.35 |
||
|
11
|
11
812640 Handle-starter |
812640 |
US $16.11 |
||
|
12
|
12
812641 Retainer |
812641 |
US $16.58 |
||
|
13
|
13
812642 PULLEY Starter |
812642 |
US $51.34 |
||
|
14
|
14
168281 Screw and lockwasher |
168281 |
US $4.86 |
||
|
15
|
15
810755 Screw |
810755 |
US $11.25 |
||
|
16
|
16
17634 Lock-starter |
17634 |
US $9.39 |
||
|
17
|
17
17637 Collar |
17637 |
US $6.61 |
||
| replacement | |||||
|
17
|
17
895130 Collar |
895130 |
US $6.61 |
||
|
18
|
18
17638 Spring |
17638 |
US $3.47 |
||
| replacement | |||||
|
18
|
18
812645007 Spring |
812645007 |
US $3.47 |
||
|
19
|
19
8555449 Screw |
8555449 |
US $14.14 |
||
|
20
|
20
176431 Snap rod |
176431 |
US $3.71 |
||
|
21
|
21
8126431 New Genuine Part |
8126431 |
US $9.15 |
||
|
22
|
22
804364
Screw
|
804364 |
— | ||
|
23
|
23
804365 Collar |
804365 |
US $4.99 |
||
|
24
|
24
804366 Spring |
804366 |
US $5.10 |
||
|
25
|
25
16826 Washer, stainless steel |
16826 |
US $3.40 |
||
|
26
|
26
17642001 New Genuine Part |
17642001 |
US $11.71 |
||
|
27
|
27
400256 Lockwasher |
400256 |
US $1.62 |
||
|
NI
|
NI
812632A3 Starter-recoil |
812632A3 |
US $196.11 |
||
| replacement | |||||
|
NI
|
NI
803576T02 Starter assembly, recoil |
803576T02 |
US $241.16 |
||
