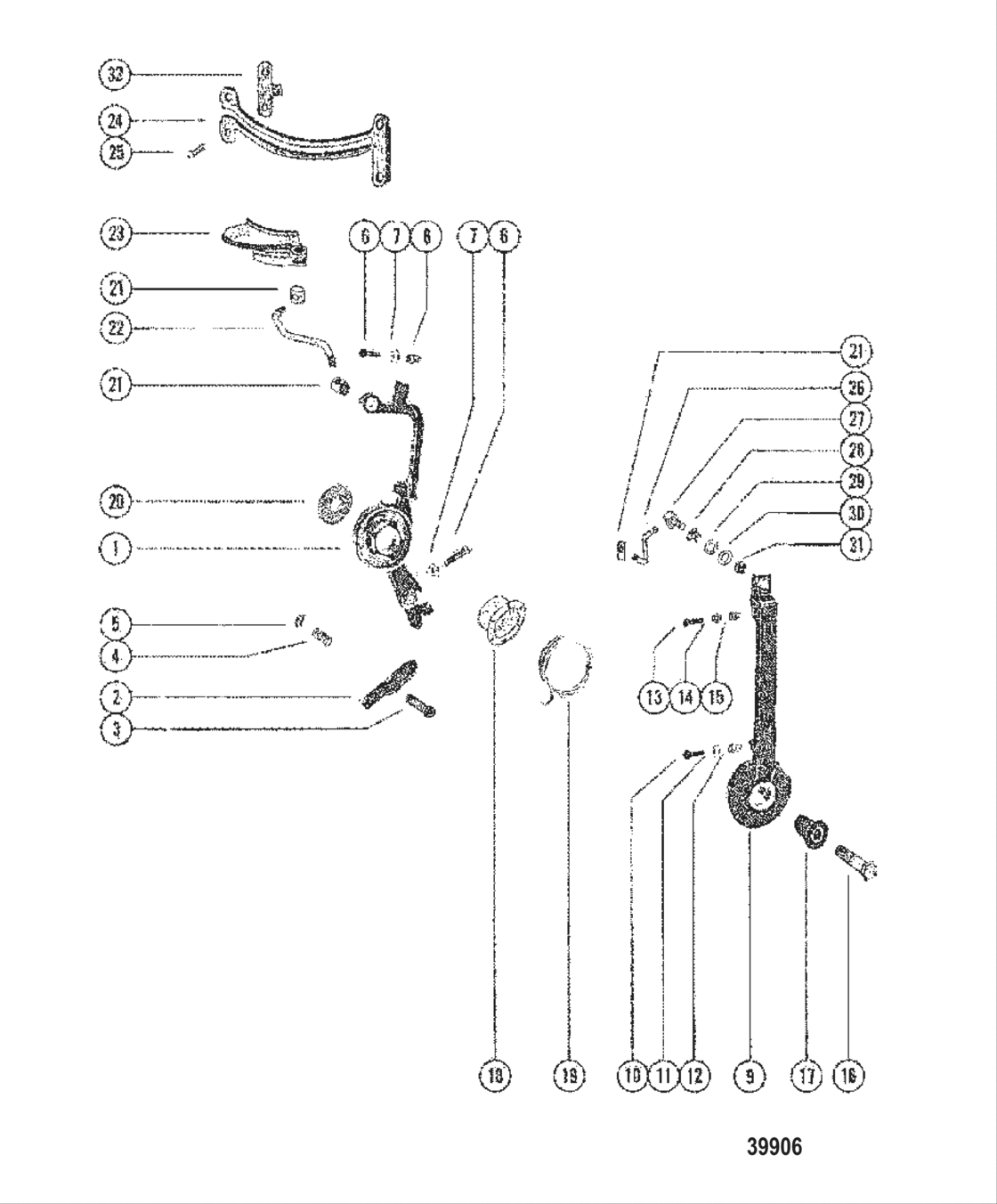

Throttle Lever And Spark Advance Lever Diagram Mercury-Mercruiser 80
- Power
- 80
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Country
- Canada
- Серийный номер
- 7146213 THRU 7208572
- Кол-в цилиндров
- 4
- Подача топлива
- Карбюратор
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
73416
N.l.a.
|
73416 |
— | ||
|
2
|
2
73404
N.l.a.
|
73404 |
— | ||
|
3
|
3
59702 Screw, latch to throttle lever |
59702 |
US $1.78 |
||
|
4
|
4
20099 Spring, compression - front cover release button |
20099 |
US $4.75 |
||
|
5
|
5
36069 Nut, carburetor stud |
36069 |
US $3.94 |
||
|
6
|
6
73654
Screw, adjusting-throttle lever
|
73654 |
— | ||
| replacement | |||||
|
6
|
6
69029
Screw, base to boat
|
69029 |
— | ||
|
7
|
7
64484 Nut, vertical shaft throttle lever screw |
64484 |
US $2.43 |
||
| replacement | |||||
|
7
|
7
29598 Nut, stud |
29598 |
US $2.43 |
||
|
8
|
8
52023
New Genuine Part
|
52023 |
— | ||
|
9
|
9
73414
N.l.a.
|
73414 |
— | ||
|
10
|
10
73656
Screw, spark advance adjusting
|
73656 |
— | ||
|
11
|
11
68219 Nut, stainless steel |
68219 |
US $3.40 |
||
|
12
|
12
48039 New Genuine Part |
48039 |
US $3.47 |
||
|
13
|
13
73655 Screw, throttle lever adjusting |
73655 |
US $6.96 |
||
| replacement | |||||
|
13
|
13
67916 Screw |
67916 |
US $6.96 |
||
|
14
|
14
64484 Nut, vertical shaft throttle lever screw |
64484 |
US $2.43 |
||
| replacement | |||||
|
14
|
14
29598 Nut, stud |
29598 |
US $2.43 |
||
|
15
|
15
52023
New Genuine Part
|
52023 |
— | ||
|
16
|
16
55337 ScrewLEVER AND ARM TO CYLINDER BLOCK (1-3/4") |
55337 |
US $4.53 |
||
| replacement | |||||
|
16
|
16
818165 ScrewLEVER AND ARM TO CYLINDER BLOCK (1-3/4") |
818165 |
US $5.34 |
||
|
17
|
17
55164 Bushing, throttle control lever screw |
55164 |
US $19.94 |
||
|
18
|
18
55171
Bushing, throttle control lever screw
|
55171 |
— | ||
|
19
|
19
86310 Spring, return-lever and arm screw |
86310 |
US $6.14 |
||
| replacement | |||||
|
19
|
19
73375 Spring, return - lever and arm screw |
73375 |
US $6.14 |
||
|
20
|
20
46765 Washer, , front anchor pin |
46765 |
US $11.99 |
||
|
21
|
21
60572 New Genuine Part |
60572 |
US $6.96 |
||
|
22
|
22
73374
N.l.a.
|
73374 |
— | ||
|
23
|
23
73432
New Genuine Part
|
73432 |
— | ||
|
24
|
24
77001
N.l.a.
|
77001 |
— | ||
|
25
|
25
69013 Screw, , horn attaching |
69013 |
US $1.62 |
||
|
26
|
26
77010 Rod-link |
77010 |
US $25.55 |
||
|
27
|
27
76158A1
N.l.a.
|
76158A1 |
— | ||
|
28
|
28
26856 Bushing, nylon-indicator gear |
26856 |
US $4.90 |
||
|
29
|
29
29402 Wave washer, shift cable adaptor stud |
29402 |
US $1.62 |
||
|
30
|
30
33786 Washer, shield screw |
33786 |
US $1.28 |
||
| replacement | |||||
|
30
|
30
73288 Washer |
73288 |
US $1.28 |
||
|
31
|
31
20110 Nut, , shift control lever to cam lever stud |
20110 |
US $1.50 |
||
|
32
|
32
77158
N.l.a.
|
77158 |
— | ||
