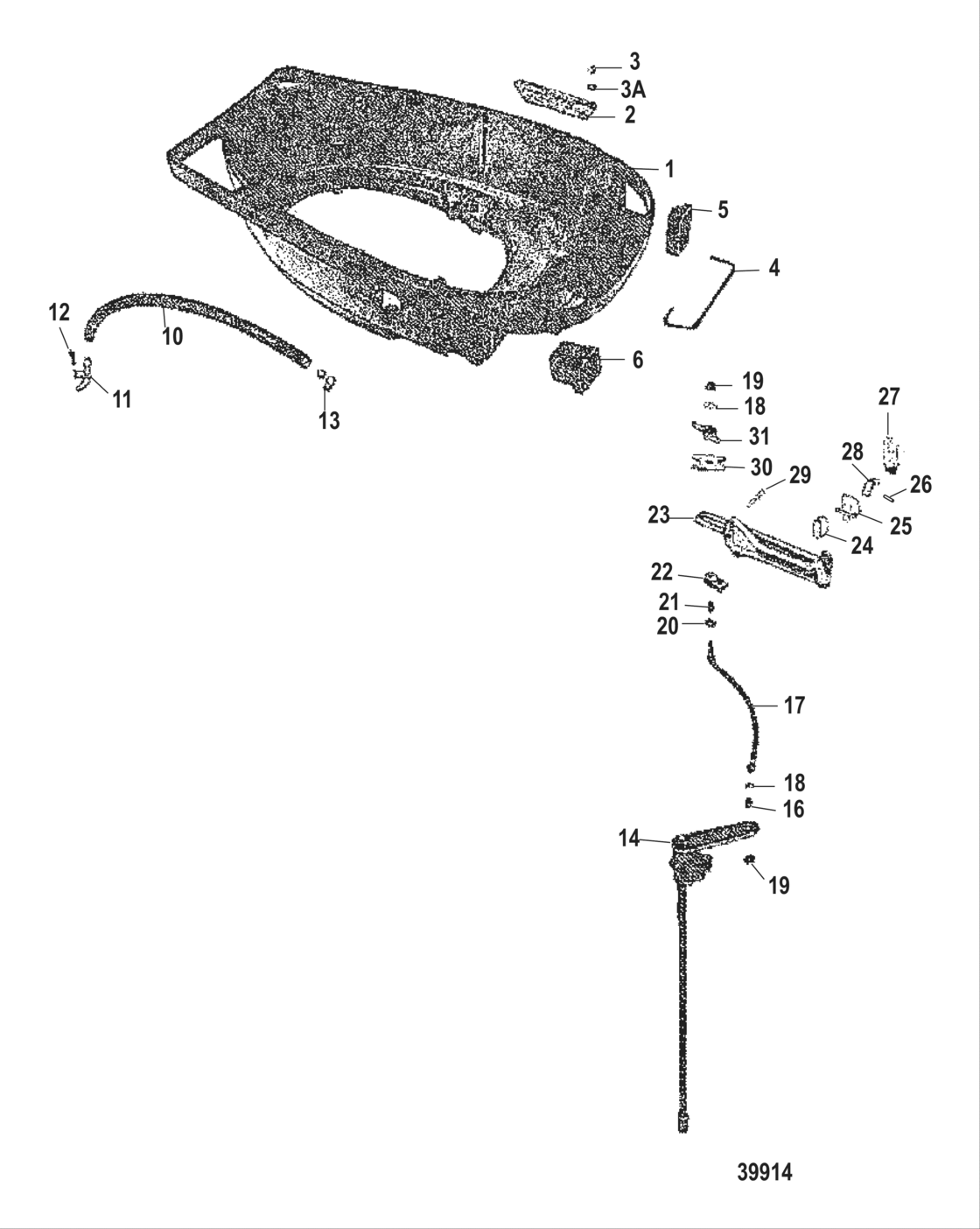

Bottom Cowl And Shift Linkage Diagram Mercury-Mercruiser 80
- Power
- 80
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Country
- Australia
- Серийный номер
- 8067015 & Up
- Кол-в цилиндров
- 4
- Подача топлива
- Карбюратор
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
7638
Cowl, bottom
|
7638 |
— | ||
| replacement | |||||
|
1
|
1
8708T
BOTTOM COWL
|
8708T |
— | ||
|
2
|
2
74303
N.l.a.
|
74303 |
— | ||
|
3
|
3
62568 Screw, , switch retainer to control panel |
62568 |
US $0.93 |
||
|
3A
|
3A
30164 Nla |
30164 |
US $1.97 |
||
|
4
|
4
73646
Gasket, bottom cowl
|
73646 |
— | ||
|
5
|
5
39616
N.l.a.
|
39616 |
— | ||
|
6
|
6
37637
N.l.a.
|
37637 |
— | ||
|
10
|
10
34395A1 Tube, tell tale |
34395A1 |
US $54.61 |
||
| replacement | |||||
|
10
|
10
8M0108355 Hose (57 Inches Bulk) To Vapor Separator Cover - Cut To 18 Inches |
8M0108355 |
US $54.61 |
||
|
11
|
11
52889
New Genuine Part
|
52889 |
— | ||
|
12
|
12
48408 Screw, exhaust relief cover |
48408 |
US $2.22 |
||
|
13
|
13
78279 Elbow, tell tale hose to block |
78279 |
US $6.14 |
||
| replacement | |||||
|
13
|
13
782792 Fitting, elbow 45 degree |
782792 |
US $6.14 |
||
|
14
|
14
60304A55
N.l.a.
(SHORT SHAFT) |
60304A55 |
— | ||
|
14
|
14
60304A54
Shaft assy-shift
(LONG SHAFT) |
60304A54 |
— | ||
|
16
|
16
26856 Bushing, nylon-indicator gear |
26856 |
US $4.90 |
||
|
17
|
17
73402
N.l.a.
|
73402 |
— | ||
|
18
|
18
35462 Washer, shift cable stud |
35462 |
US $1.62 |
||
|
19
|
19
36069 Nut, carburetor stud |
36069 |
US $3.94 |
||
|
20
|
20
29720 Wave washer, throttle link screw |
29720 |
US $1.20 |
||
|
21
|
21
20099 Spring, compression - front cover release button |
20099 |
US $4.75 |
||
|
22
|
22
37896
New Genuine Part
|
37896 |
— | ||
|
23
|
23
52732
New Genuine Part
|
52732 |
— | ||
| replacement | |||||
|
23
|
23
52732A6
N.l.a.
|
52732A6 |
— | ||
|
24
|
24
39519 New Genuine Part |
39519 |
US $4.64 |
||
|
25
|
25
39618
New Genuine Part
|
39618 |
— | ||
| replacement | |||||
|
25
|
25
87609A1
New Genuine Part
|
87609A1 |
— | ||
|
26
|
26
47175 Pin, locking levera and cover fastening |
47175 |
US $4.53 |
||
|
27
|
27
39667
New Genuine Part
|
39667 |
— | ||
|
28
|
28
65799
New Genuine Part
|
65799 |
— | ||
| replacement | |||||
|
28
|
28
87609A1
New Genuine Part
|
87609A1 |
— | ||
|
29
|
29
24234 Screw, , hydraulic pump to mounting bracket |
24234 |
US $0.93 |
||
| replacement | |||||
|
29
|
29
35386 Screw, , shift bracket to shift mounting bracket |
35386 |
US $1.28 |
||
|
30
|
30
52100 New Genuine Part |
52100 |
US $8.46 |
||
|
31
|
31
38279 New Genuine PartCONTROL CABLE FASTENING - ANCHOR BRACKET |
38279 |
US $6.61 |
||
| replacement | |||||
|
31
|
31
8M0036768 LatchCONTROL CABLE FASTENING - ANCHOR BRACKET |
8M0036768 |
US $6.61 |
||
|
NI
|
NI
73645A32 Gasket Set |
73645A32 |
US $121.22 |
||
| replacement | |||||
|
NI
|
NI
73645A87 Gasket Set |
73645A87 |
US $121.22 |
||
