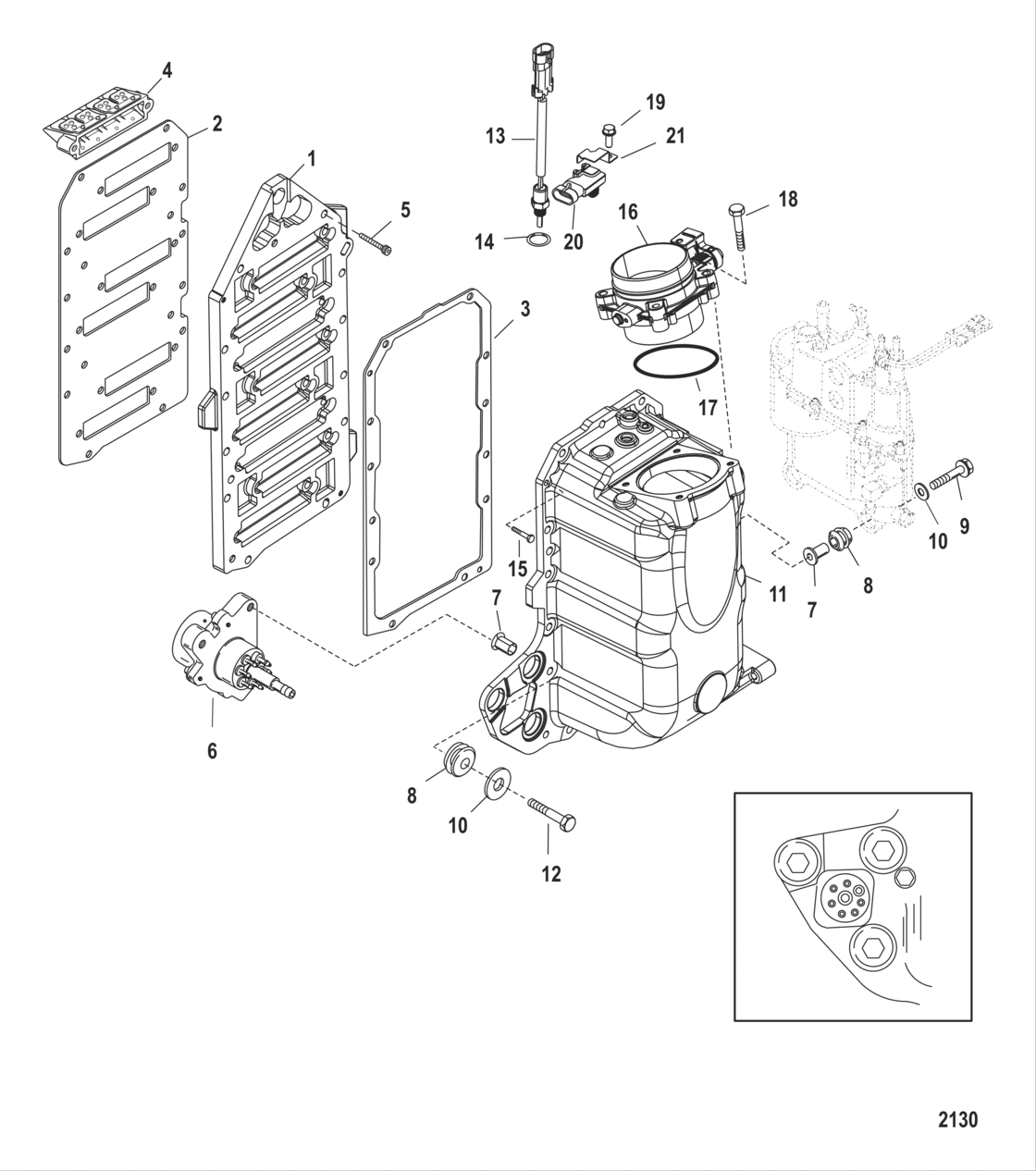

Air Handler Components Diagram Mercury-Mercruiser D135 OptiMax
- Engine Capacity
- 2.5
- Power
- 135
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Country
- USA
- Серийный номер
- 0T801000 THRU 1B226999
- Серия
- DFI
- Кол-в цилиндров
- 6
- Подача топлива
- EFI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
855420A1 N.l.a. |
855420A1 |
US $169.01 |
||
|
2
|
2
146973 Gasket |
146973 |
US $34.43 |
||
|
3
|
3
8500581 Gasket |
8500581 |
US $41.86 |
||
|
4
|
4
855952T3 New Genuine Part |
855952T3 |
US $151.33 |
||
|
5
|
5
55715 Screw, , oil pan to block |
55715 |
US $2.43 |
||
|
6
|
6
857149T2 New Genuine Part |
857149T2 |
US $632.21 |
||
| replacement | |||||
|
6
|
6
8M0128080 PUMP ASSY - OIL |
8M0128080 |
US $1,026.19 |
||
|
7
|
7
855364 Bushing |
855364 |
US $5.22 |
||
|
8
|
8
855362 Grommet[0T979999] & Below |
855362 |
US $2.78 |
||
| replacement | |||||
|
8
|
8
855362001 Grommet[0T979999] & Below |
855362001 |
US $2.78 |
||
|
8
|
8
855362001 Grommet[0T980000] & Up |
855362001 |
US $2.78 |
||
|
9
|
9
81893435 Screw |
81893435 |
US $4.03 |
||
|
10
|
10
817274 Washer |
817274 |
US $1.28 |
||
|
11
|
11
850248A2
Air plenum kit
|
850248A2 |
— | ||
|
12
|
12
81893430 Screw |
81893430 |
US $8.93 |
||
|
13
|
13
885342001 New Genuine Part |
885342001 |
US $57.89 |
||
| replacement | |||||
|
13
|
13
885342002 SENSOR TEMP |
885342002 |
from US $47.22 |
||
|
14
|
14
888814 O-ring |
888814 |
US $11.01 |
||
| replacement | |||||
|
14
|
14
896699 O-ring |
896699 |
US $11.01 |
||
|
15
|
15
883942 Screw |
883942 |
US $3.14 |
||
|
16
|
16
855422A1 New Genuine Part |
855422A1 |
US $321.10 |
||
|
17
|
17
855423 O-ring |
855423 |
US $26.67 |
||
|
18
|
18
82130040 Screw |
82130040 |
US $6.96 |
||
|
19
|
19
1993716 Screw |
1993716 |
US $2.54 |
||
|
20
|
20
854445 Sensor (map) |
854445 |
US $158.66 |
||
|
21
|
21
884522 New Genuine Part |
884522 |
US $11.82 |
||
|
NI
|
NI
855633T26 Air handler assy |
855633T26 |
US $2,201.01 |
||
| replacement | |||||
|
NI
|
NI
855633T33 Air handler assy |
855633T33 |
US $2,201.01 |
||
|
NI
|
NI
879808T04 New Genuine Part(135/150) |
879808T04 |
US $10,754.29 |
||
| replacement | |||||
|
NI
|
NI
879808T07 New Genuine Part(135/150) |
879808T07 |
US $10,754.29 |
||
|
NI
|
NI
879809T01 New Genuine Part(175) |
879809T01 |
US $10,971.42 |
||
| replacement | |||||
|
NI
|
NI
879809T07 Ph 175 dfi 2.5l(175) |
879809T07 |
US $10,971.42 |
||
