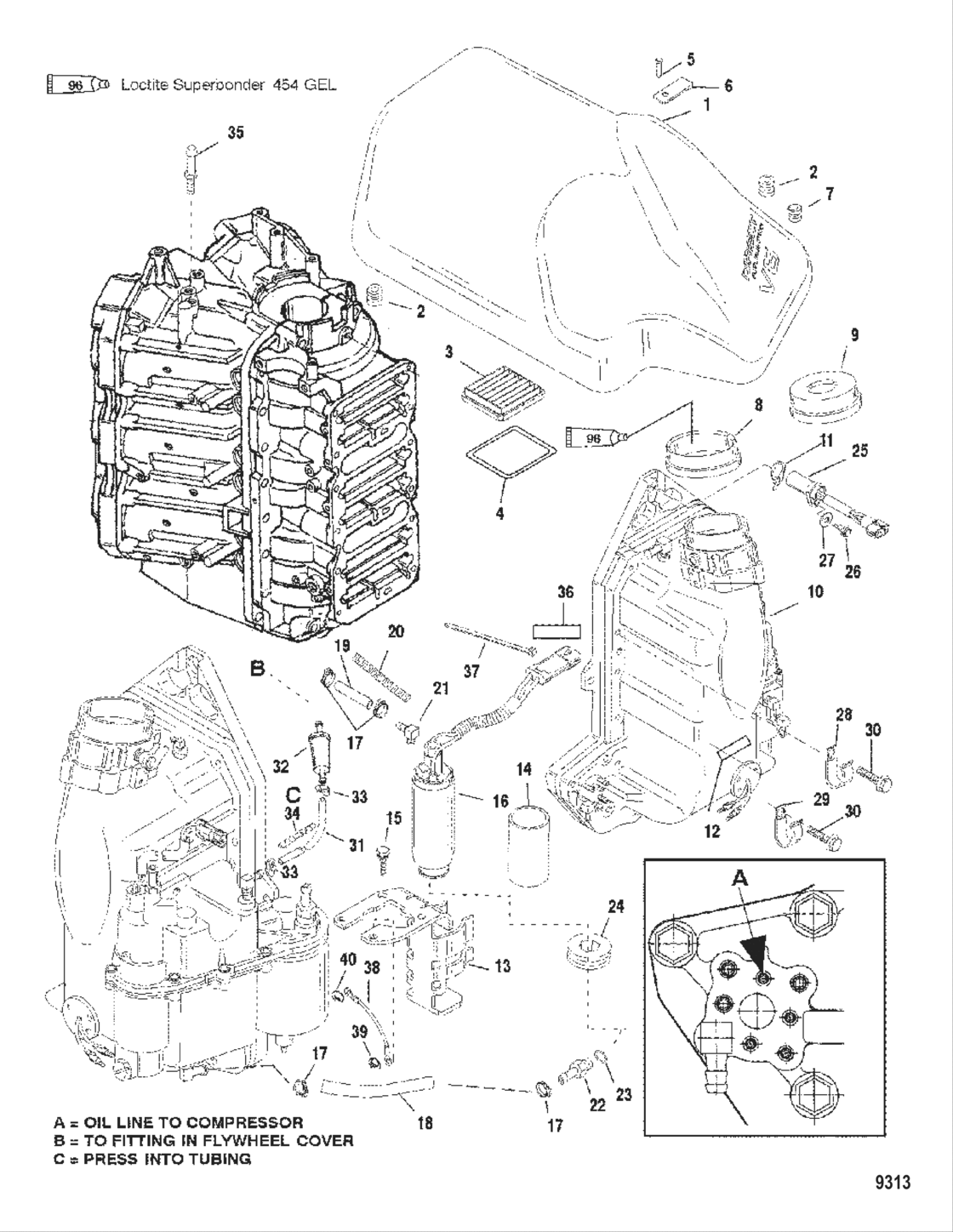

Air Handler Diagram Mercury-Mercruiser D150 OptiMax
- Engine Capacity
- 2.5
- Power
- 150
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Country
- USA
- Серийный номер
- 0G760300 THRU 0G960499
- Серия
- DFI
- Кол-в цилиндров
- 6
- Подача топлива
- EFI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
827325A7 New Genuine Part |
827325A7 |
US $355.01 |
||
|
2
|
2
821555 Grommet |
821555 |
US $4.99 |
||
| replacement | |||||
|
2
|
2
821555001 Grommet |
821555001 |
US $4.99 |
||
|
3
|
3
853333T Filter, air |
853333T |
US $19.52 |
||
|
4
|
4
853352 New Genuine Part |
853352 |
US $14.85 |
||
|
5
|
5
855590
Rivet
|
855590 |
— | ||
|
6
|
6
854633
New Genuine Part
|
854633 |
— | ||
|
7
|
7
857101 Grommet |
857101 |
US $1.50 |
||
|
8
|
8
855613 Grommet(150) |
855613 |
US $24.93 |
||
|
9
|
9
8556131 Grommet(135) |
8556131 |
US $44.67 |
||
|
10
|
10
855633A15
N.l.a.
|
855633A15 |
— | ||
|
11
|
11
856139 Shim |
856139 |
US $30 |
||
|
11
|
11
8561391 Shim(.010 THICK) |
8561391 |
US $28.56 |
||
|
12
|
12
NSS
Not Sold Separate O-Ring
|
NSS |
— | ||
|
13
|
13
8557561
New Genuine Part
|
8557561 |
— | ||
| replacement | |||||
|
13
|
13
855756A1
New Genuine Part
|
855756A1 |
— | ||
|
14
|
14
803818
Sleeve
|
803818 |
— | ||
|
15
|
15
1993716 Screw |
1993716 |
US $2.54 |
||
|
16
|
16
8558432 New Genuine Part |
8558432 |
US $567.30 |
||
| replacement | |||||
|
16
|
16
8M0047624 Pump Assembly |
8M0047624 |
US $567.30 |
||
|
17
|
17
13791 Clamp, , old design, new design use reference number 22 |
13791 |
US $1.86 |
||
|
18
|
18
856778
Hose
|
856778 |
— | ||
|
19
|
19
85564361 Hose |
85564361 |
US $68.90 |
||
|
20
|
20
83312531
Insulating sleeve
|
83312531 |
— | ||
|
21
|
21
855802 Elbow |
855802 |
US $32.56 |
||
| replacement | |||||
|
21
|
21
855802A1 Elbow |
855802A1 |
US $32.56 |
||
|
22
|
22
856812 Fitting |
856812 |
US $33.66 |
||
| replacement | |||||
|
22
|
22
880862A1 Fitting kit |
880862A1 |
US $33.66 |
||
|
23
|
23
805062 O-ring |
805062 |
US $3.71 |
||
|
24
|
24
856928
Grommet
|
856928 |
— | ||
|
25
|
25
8285581 Encoder |
8285581 |
US $291.33 |
||
|
26
|
26
418051 Screw |
418051 |
US $2.43 |
||
|
27
|
27
56681 Washer, throttle cable |
56681 |
US $1.62 |
||
|
28
|
28
97224 Clamp, inlet hose - rocker cover screw |
97224 |
US $8.93 |
||
|
29
|
29
65292 J clip |
65292 |
US $2.43 |
||
|
30
|
30
817504 Screw, stainless steel |
817504 |
US $4.18 |
||
|
31
|
31
830756109 Hose, , map sensor |
830756109 |
US $54.61 |
||
| replacement | |||||
|
31
|
31
8M0108355 Hose (57 Inches Bulk) To Vapor Separator Cover - Cut To 18 Inches |
8M0108355 |
US $54.61 |
||
|
32
|
32
855896T Filter |
855896T |
US $46.34 |
||
|
33
|
33
816311 Tie strap, |
816311 |
US $0.51 |
||
| replacement | |||||
|
33
|
33
816311T Tie Strap (8.00 Inches) |
816311T |
US $0.51 |
||
|
34
|
34
860273 Connector |
860273 |
US $2.43 |
||
|
35
|
35
821583 New Genuine Part |
821583 |
US $17.28 |
||
| replacement | |||||
|
35
|
35
8215832 New Genuine Part |
8215832 |
US $17.28 |
||
|
36
|
36
856985A13
Decal Epa Label Information
(1999) |
856985A13 |
— | ||
|
37
|
37
61990 New Genuine Part |
61990 |
US $1.15 |
||
|
38
|
38
88807A27
Cable Assembly
|
88807A27 |
— | ||
|
39
|
39
29245 Washer, stainless steel, water pump body stud |
29245 |
US $1.28 |
||
|
40
|
40
12038 Washer |
12038 |
US $1.92 |
||
|
NI
|
NI
804545T99
Powerhead opt150
[0G886267] & Up |
804545T99 |
— | ||
|
NI
|
NI
854008T99
Powerhead opt150
[0G886266] & Below |
854008T99 |
— | ||
| replacement | |||||
|
NI
|
NI
804545T99
Powerhead opt150
[0G886266] & Below |
804545T99 |
— | ||
