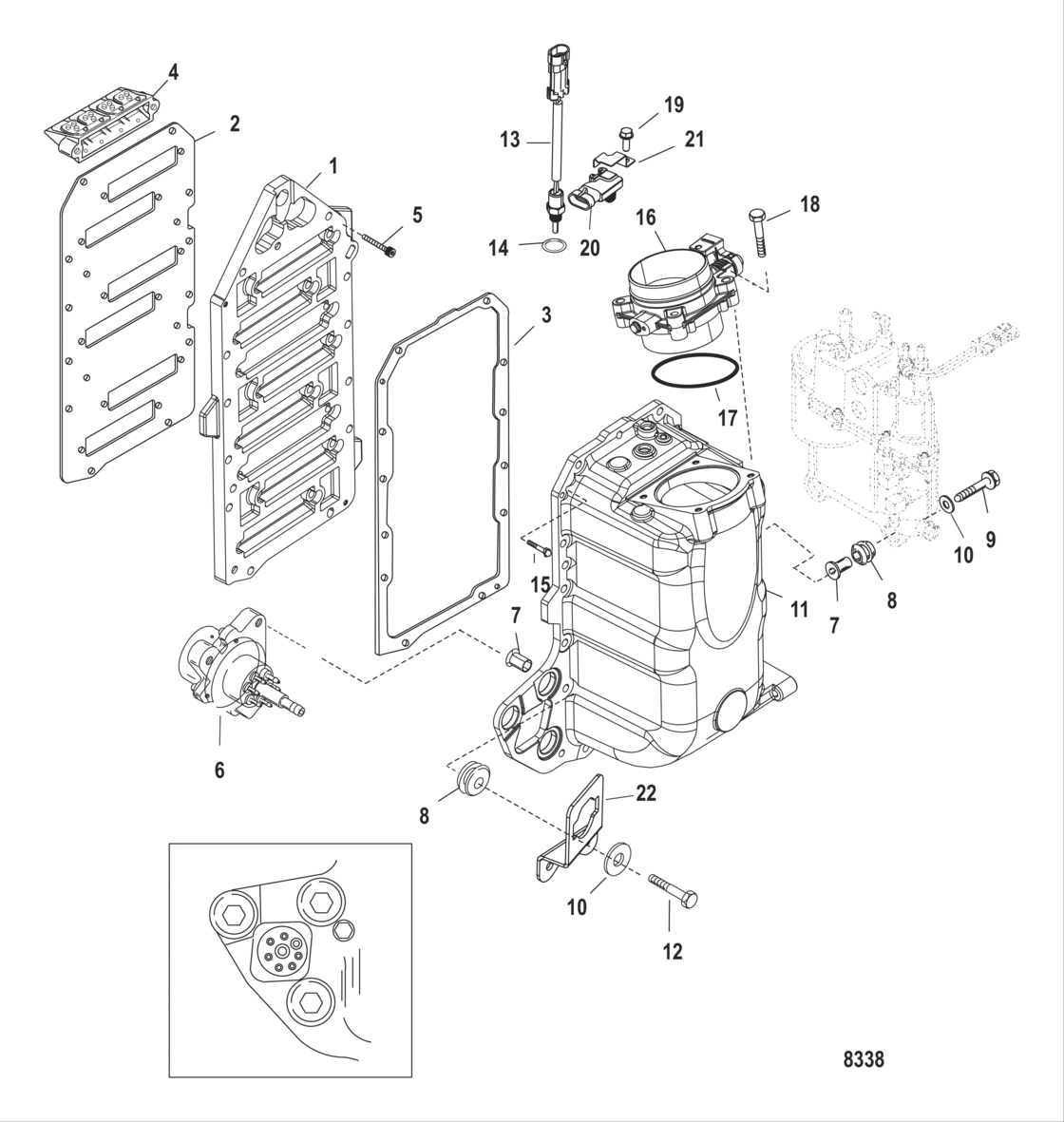

Air Handler Components Diagram Mercury-Mercruiser D175 OptiMax
- Engine Capacity
- 2.5
- Power
- 175
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Серийный номер
- 1B516339 & Up
- Серия
- Pro XS
- Кол-в цилиндров
- 6
- Подача топлива
- EFI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
855420T03 Adaptor plate kit |
855420T03 |
US $597.01 |
||
|
2
|
2
840484 Gasket |
840484 |
US $49.44 |
||
|
3
|
3
840485 Gasket |
840485 |
US $36.90 |
||
|
4
|
4
840805T1 New Genuine Part |
840805T1 |
US $293.44 |
||
|
5
|
5
55715 Screw, , oil pan to block |
55715 |
US $2.43 |
||
|
6
|
6
857149T05 New Genuine Part |
857149T05 |
US $632.21 |
||
| replacement | |||||
|
6
|
6
8M0128080 PUMP ASSY - OIL |
8M0128080 |
US $1,026.19 |
||
|
7
|
7
855364 Bushing |
855364 |
US $5.22 |
||
|
8
|
8
855362001 Grommet |
855362001 |
US $2.78 |
||
|
9
|
9
81893435 Screw |
81893435 |
US $4.03 |
||
|
10
|
10
817274 Washer |
817274 |
US $1.28 |
||
|
11
|
11
850248T03 Air plenum kit |
850248T03 |
US $215.15 |
||
|
12
|
12
81893430 Screw |
81893430 |
US $8.93 |
||
|
13
|
13
885342002 SENSOR TEMP |
885342002 |
from US $47.22 |
||
|
14
|
14
896699 O-ring |
896699 |
US $11.01 |
||
|
15
|
15
883942 Screw |
883942 |
US $3.14 |
||
|
16
|
16
855422T03 Throttle body kit |
855422T03 |
US $399.01 |
||
|
17
|
17
855423 O-ring |
855423 |
US $26.67 |
||
|
18
|
18
82130040 Screw |
82130040 |
US $6.96 |
||
|
19
|
19
1993716 Screw |
1993716 |
US $2.54 |
||
|
20
|
20
854445 Sensor (map) |
854445 |
US $158.66 |
||
|
21
|
21
884522 New Genuine Part |
884522 |
US $11.82 |
||
|
22
|
22
892296 Bracket |
892296 |
US $30.78 |
||
|
NI
|
NI
855633T34 Air Handler Assembly |
855633T34 |
US $4,217.14 |
||
|
NI
|
NI
879809A08 Long block assembly |
879809A08 |
US $11,817.14 |
||
