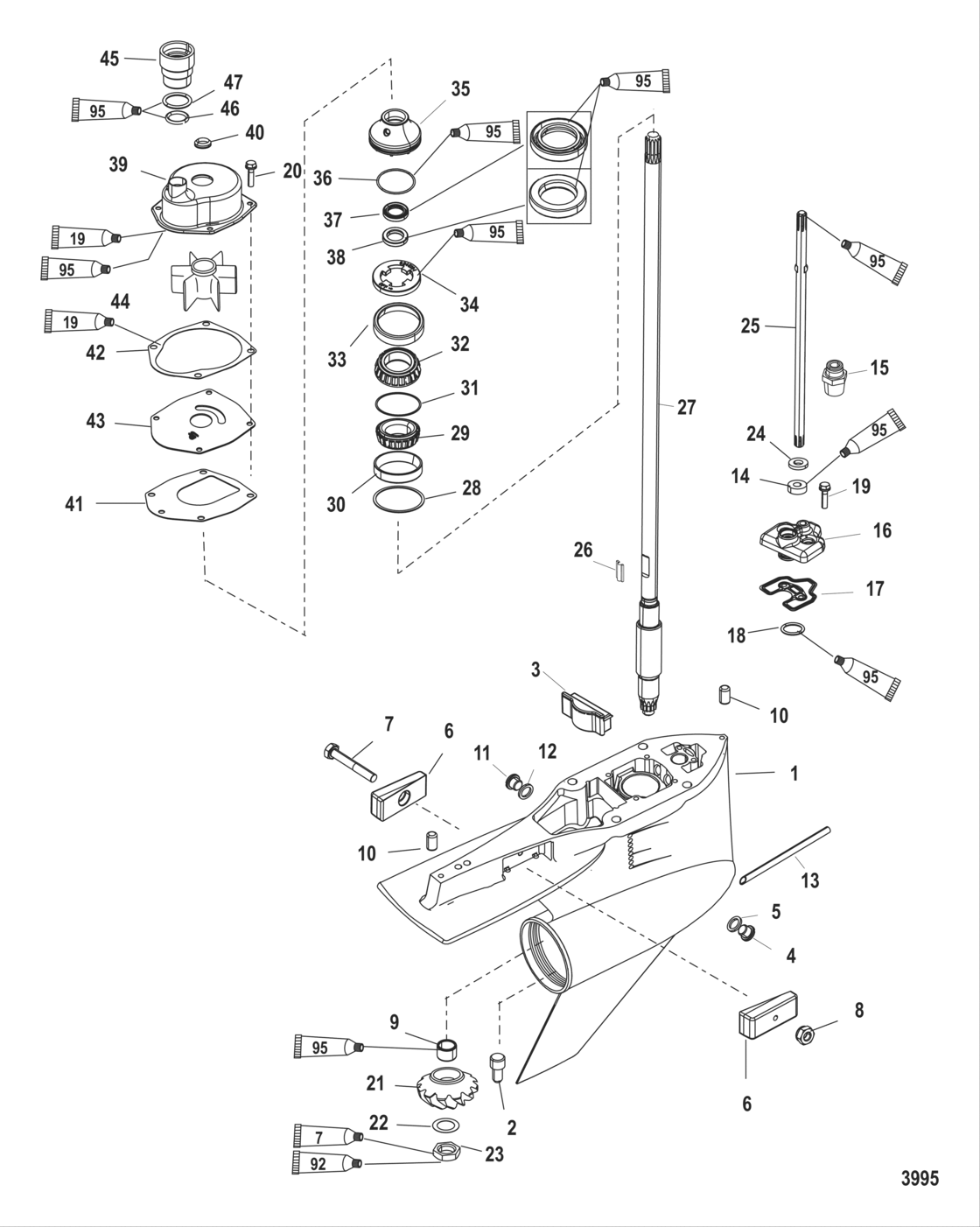

Gear Housing Driveshaft-Standard/counter-Fleetmaster Diagram Mercury-Mercruiser D185 OptiMax
- Engine Capacity
- 3.0
- Power
- 185
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Серийный номер
- 0T997974 THRU 1E003045
- Серия
- JP
- Кол-в цилиндров
- 6
- Подача топлива
- EFI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
859399T24 Gear Housing Assembly Complete Basic |
859399T24 |
US $2,759.06 |
||
|
2
|
2
379721 Pin |
379721 |
US $3.54 |
||
|
3
|
3
821526 New Genuine Part |
821526 |
US $16.82 |
||
| replacement | |||||
|
3
|
3
821526001 New Genuine Part |
821526001 |
US $20.74 |
||
|
4
|
4
79953Q2 Screw Kit (.375-16 X .250) Drain |
79953Q2 |
US $6.85 |
||
| replacement | |||||
|
4
|
4
79953Q04 Screw Kit Drain |
79953Q04 |
US $10.18 |
||
|
5
|
5
191833 Seal |
191833 |
US $1.68 |
||
|
6
|
6
826134Q Anode 3 |
826134Q |
US $19.53 |
||
|
7
|
7
4000333 Screw |
4000333 |
US $4.64 |
||
|
8
|
8
401386 Nut, stainless steel |
401386 |
US $5.22 |
||
|
9
|
9
42647A1 Bearing assembly, roller |
42647A1 |
US $86.36 |
||
|
10
|
10
43044 Pin, dowel - without hole |
43044 |
US $1.92 |
||
|
11
|
11
79953Q2 Screw Kit (.375-16 X .250) Drain |
79953Q2 |
US $6.85 |
||
| replacement | |||||
|
11
|
11
79953Q04 Screw Kit Drain |
79953Q04 |
US $10.18 |
||
|
12
|
12
191833 Seal |
191833 |
US $1.68 |
||
|
13
|
13
859402 Pilot tube |
859402 |
US $33.66 |
||
|
14
|
14
8164641 Seal, oil, bell housing |
8164641 |
US $17.99 |
||
| replacement | |||||
|
14
|
14
8M0204708 SEAL |
8M0204708 |
US $19.26 |
||
|
15
|
15
881866 Fitting |
881866 |
US $6.72 |
||
|
16
|
16
858934 New Genuine Part |
858934 |
US $125.89 |
||
|
17
|
17
858935 Gasket |
858935 |
US $5.10 |
||
|
18
|
18
36318 O-ring |
36318 |
US $1.82 |
||
|
19
|
19
82130016 Screw |
82130016 |
US $5.22 |
||
|
20
|
20
82130016 Screw |
82130016 |
US $5.22 |
||
|
21
|
21
NSS
Not Sold Separate O-Ring
|
NSS |
— | ||
|
22
|
22
92721 Washer |
92721 |
US $1.53 |
||
|
23
|
23
35921 Nut |
35921 |
US $8.18 |
||
|
24
|
24
77674 Washer |
77674 |
US $1.85 |
||
|
25
|
25
824145 Shaft-shift-lower |
824145 |
US $92 |
||
|
26
|
26
43037 Key |
43037 |
US $4.06 |
||
| replacement | |||||
|
26
|
26
8M0032833 Key |
8M0032833 |
US $4.47 |
||
|
27
|
27
881942 Driveshaft(X-Long) |
881942 |
US $507.33 |
||
|
27
|
27
881943 Driveshaft(XX-Long) |
881943 |
US $797.33 |
||
|
28
|
28
38657A1
Shim assembly
|
38657A1 |
— | ||
|
29
|
29
48939A2 Bearing, tapered roller |
48939A2 |
US $25.38 |
||
|
30
|
30
NSS
Not Sold Separate O-Ring
|
NSS |
— | ||
|
31
|
31
42637A1
Shim set
|
42637A1 |
— | ||
|
32
|
32
36387A1 Bearing, roller |
36387A1 |
US $104.79 |
||
| replacement | |||||
|
32
|
32
8M0146566 Bearing, roller |
8M0146566 |
US $107.70 |
||
|
33
|
33
NSS
Not Sold Separate O-Ring
|
NSS |
— | ||
|
34
|
34
8245191 New Genuine Part |
8245191 |
US $7.12 |
||
|
35
|
35
807929A1 GEAR HOUSING CARRIER |
807929A1 |
US $54.06 |
||
| replacement | |||||
|
35
|
35
8M0214948 GEAR HOUSING CARRIER |
8M0214948 |
US $54.06 |
||
|
36
|
36
90011 O-ring (2,175х0,175) |
90011 |
US $0.85 |
||
| replacements | |||||
|
36
|
36
896523 O-ring (2.175 x .103) |
896523 |
US $1.21 |
||
|
36
|
36
8M0142854 O RING |
8M0142854 |
US $1.24 |
||
|
37
|
37
66302 Seal, oil |
66302 |
US $20.71 |
||
|
38
|
38
66302 Seal, oil |
66302 |
US $20.71 |
||
|
39
|
39
817275A5 Rebuild kit-w/p |
817275A5 |
US $164.78 |
||
|
40
|
40
816575A2 Seal Kit |
816575A2 |
US $11.15 |
||
|
41
|
41
430331 Gasket |
430331 |
US $11.37 |
||
|
42
|
42
8172771 Gasket, water pump assembly |
8172771 |
US $6.24 |
||
|
43
|
43
8172761 Faceplate-w/p |
8172761 |
from US $16.54 |
||
| replacement | |||||
|
43
|
43
8M0204709 Faceplate-w/p |
8M0204709 |
US $16.54 |
||
|
44
|
44
43026T2 Impeller |
43026T2 |
US $50.47 |
||
|
45
|
45
832942A1 New Genuine Part |
832942A1 |
US $30.03 |
||
|
46
|
46
21836 O-ring |
21836 |
US $2.72 |
||
|
47
|
47
35027 O-ring |
35027 |
US $1.50 |
||
|
NI
|
NI
859399T43 Gear Housing Assembly Complete(Standard/X-Long) |
859399T43 |
US $11,069.42 |
||
| replacement | |||||
|
NI
|
NI
842004T24 Gear Housing Assembly Xl, Complete(Standard/X-Long) |
842004T24 |
US $9,808.35 |
||
|
NI
|
NI
859399T37 Gear Housing Assembly Complete(Standard/XX-Long) |
859399T37 |
US $11,302.19 |
||
| replacement | |||||
|
NI
|
NI
842004T18 Gear Housing Assembly Complete(Standard/XX-Long) |
842004T18 |
US $11,302.19 |
||
|
NI
|
NI
859399T44 Gear Housing Assembly Complete(Counter Rotation/X-Long) |
859399T44 |
US $12,228.30 |
||
| replacement | |||||
|
NI
|
NI
842004T25 Gear Housing Assembly Cxl, Complete(Counter Rotation/X-Long) |
842004T25 |
US $10,835.18 |
||
|
NI
|
NI
859399T38 Gear Housing Assembly Complete(Counter Rotation/XX-Long) |
859399T38 |
US $9,365.79 |
||
| replacement | |||||
|
NI
|
NI
842004T19 Gear Housing Assembly Complete(Counter Rotation/XX-Long) |
842004T19 |
US $9,365.79 |
||
|
NI
|
NI
816575A4 Seal Kit Gear Housing |
816575A4 |
US $58.94 |
||
|
NI
|
NI
817275A5 Rebuild kit-w/p |
817275A5 |
US $164.78 |
||
