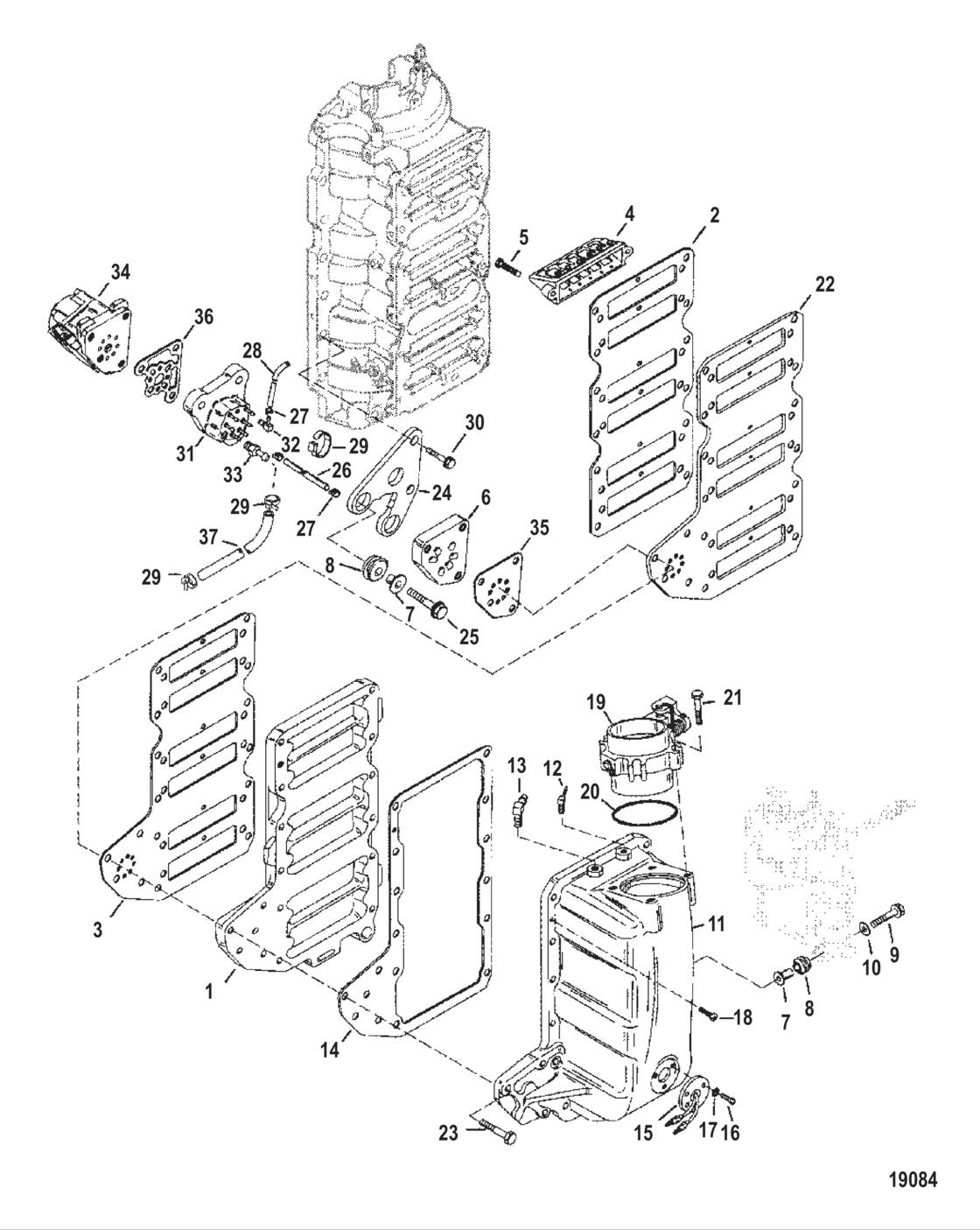

Air Handler Components Diagram Mercury-Mercruiser D200 OptiMax
- Engine Capacity
- 3.0
- Power
- 200
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Country
- USA
- Серийный номер
- 0G760300 THRU 0G960499
- Серия
- DFI
- Кол-в цилиндров
- 6
- Подача топлива
- EFI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
850281A1
New Genuine Part
|
850281A1 |
— | ||
|
2
|
2
850283
Gasket
|
850283 |
— | ||
|
3
|
3
850282 Gasket |
850282 |
US $39.22 |
||
|
4
|
4
828623T New Genuine Part |
828623T |
US $190.78 |
||
| replacement | |||||
|
4
|
4
828623T6 New Genuine Part |
828623T6 |
US $268.60 |
||
|
5
|
5
855525
Screw
|
855525 |
— | ||
|
6
|
6
855644T
New Genuine Part
|
855644T |
— | ||
|
7
|
7
855364 Bushing |
855364 |
US $5.22 |
||
|
8
|
8
855362 Grommet |
855362 |
US $2.78 |
||
| replacement | |||||
|
8
|
8
855362001 Grommet |
855362001 |
US $2.78 |
||
|
9
|
9
4000355 Screw |
4000355 |
US $3.71 |
||
|
10
|
10
817274 Washer |
817274 |
US $1.28 |
||
|
11
|
11
855631A1
Air plenum kit
|
855631A1 |
— | ||
|
12
|
12
8554249
Elbow
|
8554249 |
— | ||
|
13
|
13
8554242
Elbow
|
8554242 |
— | ||
|
14
|
14
879194027 Gasket |
879194027 |
US $40.78 |
||
|
15
|
15
13221A1 New Genuine Part |
13221A1 |
US $80.11 |
||
| replacement | |||||
|
15
|
15
13221T01 SENSOR |
13221T01 |
US $80.11 |
||
|
16
|
16
4005685 Screw |
4005685 |
US $1.78 |
||
|
17
|
17
26995 Lockwasher, starter solenoid terminal |
26995 |
US $0.93 |
||
|
18
|
18
4001987 Screw |
4001987 |
US $1.62 |
||
|
19
|
19
855425A1
Body kit-throttle
|
855425A1 |
— | ||
|
20
|
20
855426 O-ring |
855426 |
US $32.90 |
||
|
21
|
21
82130040 Screw |
82130040 |
US $6.96 |
||
|
22
|
22
855524
New Genuine Part
|
855524 |
— | ||
|
23
|
23
81893450 Screw |
81893450 |
US $4.75 |
||
|
24
|
24
855588
New Genuine Part
|
855588 |
— | ||
|
25
|
25
81893440 Screw |
81893440 |
US $3.71 |
||
|
26
|
26
85583445
Tubing
|
85583445 |
— | ||
| replacement | |||||
|
26
|
26
85583464
Tubing,
|
85583464 |
— | ||
|
27
|
27
56762 New Genuine Part |
56762 |
US $0.35 |
||
|
28
|
28
85606064 Tubing, |
85606064 |
US $39.78 |
||
| replacement | |||||
|
28
|
28
8M0054152 Tubing (39.00 Inches Bulk) (Cut To 20.50 Inches) |
8M0054152 |
US $39.78 |
||
|
29
|
29
816311 Tie strap, |
816311 |
US $0.51 |
||
| replacement | |||||
|
29
|
29
816311T Tie Strap (8.00 Inches) |
816311T |
US $0.51 |
||
|
30
|
30
81893440 Screw |
81893440 |
US $3.71 |
||
|
31
|
31
8552842
N.l.a.
|
8552842 |
— | ||
|
32
|
32
8554243 Fitting |
8554243 |
US $6.03 |
||
|
33
|
33
64705 Fitting, pump inlet |
64705 |
US $10.08 |
||
|
34
|
34
855884P1
N.l.a.
|
855884P1 |
— | ||
|
35
|
35
856542 Gasket |
856542 |
US $21.57 |
||
|
36
|
36
8565421 Gasket |
8565421 |
US $4.64 |
||
|
37
|
37
82381455 Tubing, |
82381455 |
US $25.04 |
||
|
NI
|
NI
850287T10
Air handler
|
850287T10 |
— | ||
|
NI
|
NI
854198A99
New Genuine Part
(200) |
854198A99 |
— | ||
|
NI
|
NI
854199A99
New Genuine Part
(225) |
854199A99 |
— | ||
|
NI
|
NI
832934A98
Gasket Set
|
832934A98 |
— | ||
