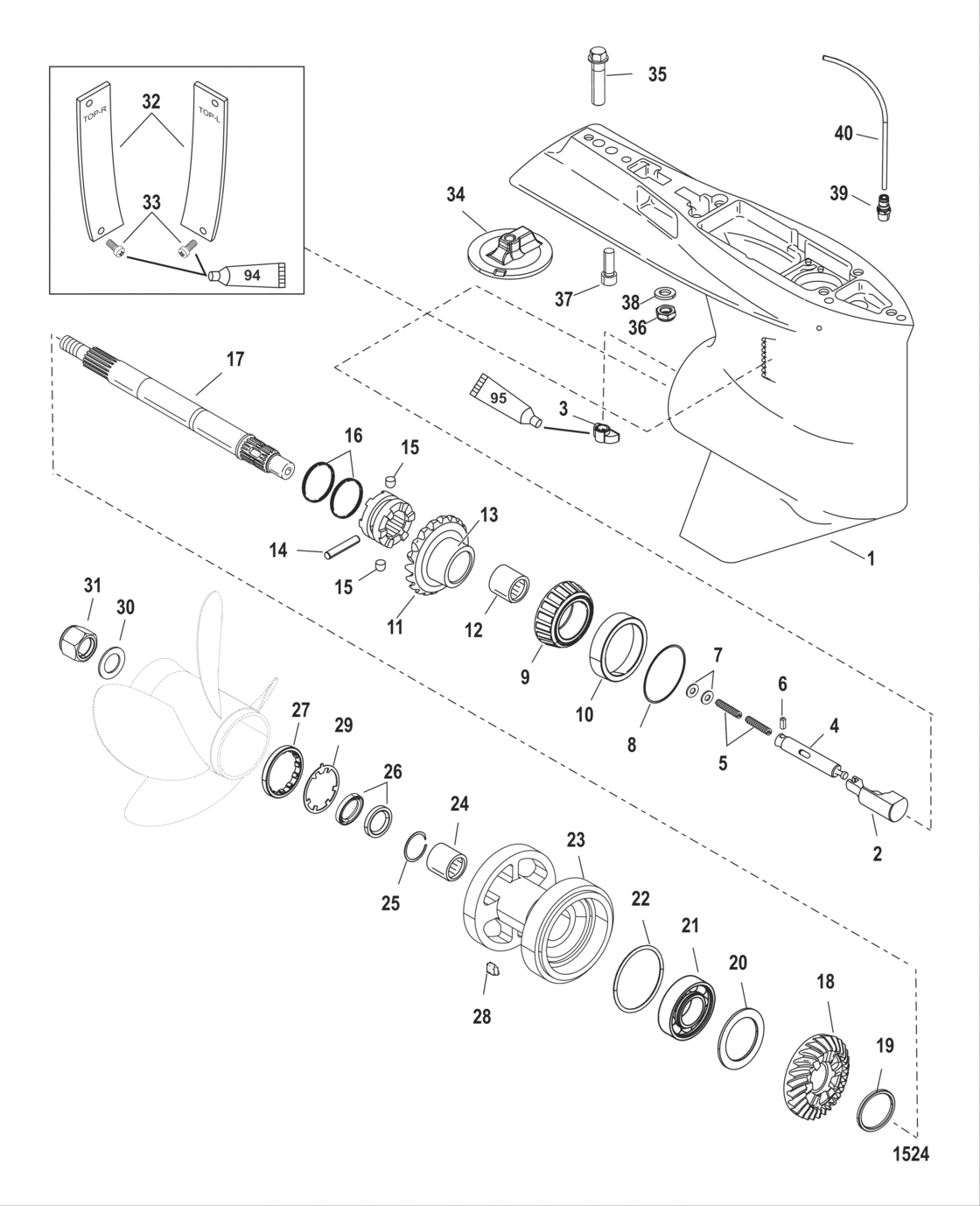

Gear Housing Propeller Shaft Torque Master Diagram Mercury-Mercruiser D200 OptiMax
- Engine Capacity
- 2.5
- Power
- 200
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Country
- USA
- Серийный номер
- 0T818181 THRU 1E000796
- Серия
- XS
- Кол-в цилиндров
- 6
- Подача топлива
- EFI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
827214T25 Gear Housing Assembly Basic(BASIC) |
827214T25 |
US $3,346.22 |
||
|
2
|
2
89594A1 Cam/follower kit |
89594A1 |
US $232.22 |
||
|
3
|
3
789562 New Genuine Part |
789562 |
US $10.21 |
||
|
4
|
4
79911A1 Rod kit-clutch |
79911A1 |
US $190.90 |
||
|
5
|
5
79910 Spring, compression |
79910 |
US $7.31 |
||
|
6
|
6
78906 Pin, spring locator |
78906 |
US $3.01 |
||
| replacement | |||||
|
6
|
6
8M0084245 Pin Spring Locator |
8M0084245 |
US $3.01 |
||
|
7
|
7
78910 Washer, compression spring |
78910 |
US $1.74 |
||
|
8
|
8
47397A1 Shim set |
47397A1 |
US $21.03 |
||
|
9
|
9
78172A1 Bearing assembly, tapered roller |
78172A1 |
US $103.01 |
||
|
10
|
10
NSS
Not Sold Separate O-Ring
|
NSS |
— | ||
|
11
|
11
44104A7 Gear Set (Included Pinion)(Includes Pinion) |
44104A7 |
US $1,359.22 |
||
|
12
|
12
549281 Bearing, roller |
549281 |
US $25.78 |
||
|
13
|
13
42672T Ratchet |
42672T |
US $307.84 |
||
|
14
|
14
42671 Pin Cross |
42671 |
US $68.69 |
||
|
15
|
15
78909 Pin, detent, ratchet |
78909 |
US $20.18 |
||
|
16
|
16
78962 Spring, retaining - cross pin |
78962 |
US $9.74 |
||
|
17
|
17
840451A03 Propeller Shaft |
840451A03 |
US $862.45 |
||
|
18
|
18
822824A1 Gear Assembly Reverse |
822824A1 |
US $525.60 |
||
|
19
|
19
822823 Thrust Ring |
822823 |
US $59.73 |
||
|
20
|
20
681001 RING-THRUST |
681001 |
US $20.52 |
||
|
21
|
21
88957T Bearing Ball |
88957T |
US $84.32 |
||
|
22
|
22
31534 O-ring, bearing carrier |
31534 |
US $6.92 |
||
|
23
|
23
848840T1 New Genuine Part |
848840T1 |
US $415.07 |
||
| replacement | |||||
|
23
|
23
848840A1 New Genuine Part |
848840A1 |
US $415.07 |
||
|
24
|
24
817072 Bearing, roller |
817072 |
US $90.32 |
||
|
25
|
25
817071 Ring, snap |
817071 |
US $3.36 |
||
|
26
|
26
815565 Seal, oil |
815565 |
US $29.01 |
||
|
27
|
27
79448
New Genuine Part
|
79448 |
— | ||
| replacement | |||||
|
27
|
27
8M2011027
Retainer
|
8M2011027 |
— | ||
|
28
|
28
30281 Key |
30281 |
US $1.28 |
||
|
29
|
29
79447 Tab washer, gear housing cover |
79447 |
US $12.06 |
||
|
30
|
30
423511 Lockwasher, toothed |
423511 |
US $3.49 |
||
|
31
|
31
52707Q1 Prop Nut Kit (.750-16) |
52707Q1 |
US $19.24 |
||
|
32
|
32
832066A1 Plate kit-inlet |
832066A1 |
US $158.78 |
||
|
33
|
33
188642 Screw |
188642 |
US $0.93 |
||
|
34
|
34
76214Q5 Anode kit 2 |
76214Q5 |
US $41.63 |
||
|
35
|
35
66024 Screw, trim tab to gear housing |
66024 |
US $10.27 |
||
|
36
|
36
859116 Nut, , bell housing stud |
859116 |
US $5.34 |
||
|
37
|
37
30206 Screw, stainless steel, gear housing to driveshaft housing |
30206 |
US $3.71 |
||
|
38
|
38
822836 Washer (.445 X .805 X .108) |
822836 |
US $4.13 |
||
|
39
|
39
881866 Fitting |
881866 |
US $6.72 |
||
|
40
|
40
85944975 Tubing, |
85944975 |
US $58.32 |
||
|
NI
|
NI
827214T23
Gear Housing Assembly Complete
|
827214T23 |
— | ||
|
NI
|
NI
840389K06 Hub kit-hd prop |
840389K06 |
US $173.97 |
||
|
NI
|
NI
840382A02 Snubber strip kit |
840382A02 |
US $29.42 |
||
|
NI
|
NI
89238A3 Seal Kit Gear Housing |
89238A3 |
US $161.04 |
||
