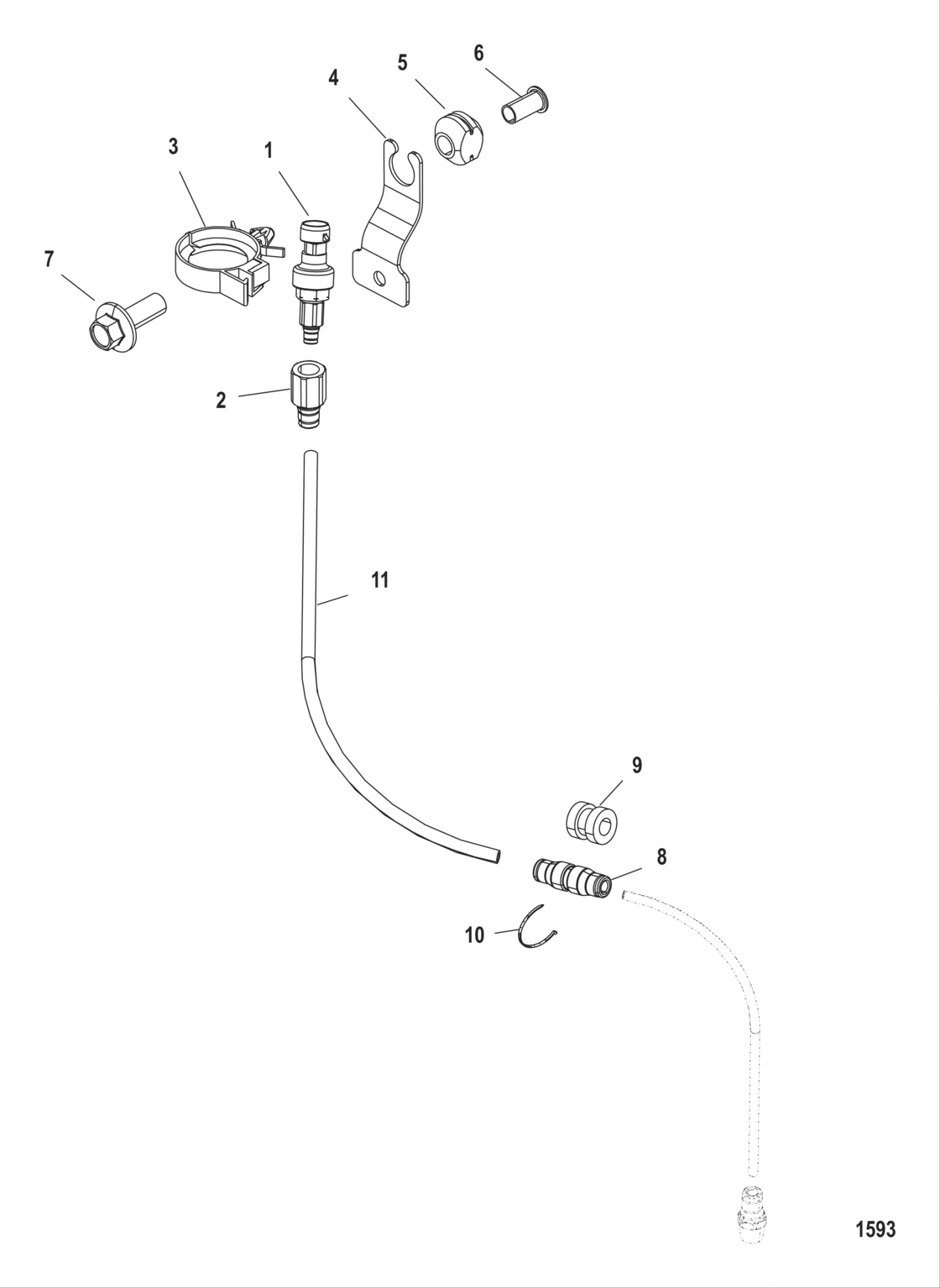

Speedometer Pickup (Serial Number 0T979999 And Below) Diagram Mercury-Mercruiser D200 OptiMax
- Engine Capacity
- 3.0
- Power
- 200
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Country
- USA
- Серийный номер
- 0T980000 THRU 1B417701
- Серия
- DTS
- Кол-в цилиндров
- 6
- Подача топлива
- EFI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
881879A6 New Genuine Part |
881879A6 |
US $201.01 |
||
| replacement | |||||
|
1
|
1
881879T11 Sensor, pressure |
881879T11 |
US $201.01 |
||
|
2
|
2
859431 Fitting |
859431 |
US $16.46 |
||
| replacement | |||||
|
2
|
2
892403 Fitting |
892403 |
US $16.46 |
||
|
3
|
3
883066 Clip |
883066 |
US $1.86 |
||
|
4
|
4
859313 New Genuine Part |
859313 |
US $32 |
||
|
5
|
5
818967 Grommet |
818967 |
US $2.78 |
||
|
6
|
6
818968 Bushing |
818968 |
US $2.43 |
||
|
7
|
7
82130025 Screw |
82130025 |
US $3.47 |
||
|
8
|
8
859448 Fitting(Use where Applicable) |
859448 |
US $16.82 |
||
| replacement | |||||
|
8
|
8
859448T FITTING(Use where Applicable) |
859448T |
US $16.82 |
||
|
9
|
9
821555 Grommet(Use where Applicable) |
821555 |
US $4.99 |
||
| replacement | |||||
|
9
|
9
821555001 Grommet(Use where Applicable) |
821555001 |
US $4.99 |
||
|
10
|
10
850181 Tie strap,(Use where Applicable) |
850181 |
US $0.46 |
||
|
11
|
11
85944975 Tubing, |
85944975 |
US $58.32 |
||
