	Description	OEM Part #	Price
1	1 832937A06 Housing Assembly Driveshaft - Long	832937A06	US $4,019.26
1	1 832938A06 Housing assembly, driveshaft - x/xx-long	832938A06	US $3,093.71
2	2 8M0008031 Stud (M12 X 1.75 X 52) Long/X-Long	8M0008031	US $10.78
	replacement
2	2 8M0070951 Stud (M12 X 1.75 X 52) Long/X-Long	8M0070951	US $10.78
3	3 88552835 Screw Long/X-Long	88552835	US $6.50
	replacement
3	3 8M0102995 Screw (M12) Long/X-Long	8M0102995	US $7.63
4	4 8331231 Grommet	8331231	US $8.35
5	5 856982 Washer, stainless steel	856982	US $1.62
6	6 896895 Nut	896895	US $2.43
7	7 64649 Plug, plastic - water pick-up hole	64649	US $4.64
8	8 898834 Bolt	898834	US $25.15
9	9 88238A10 CABLE ASSY	88238A10	US $6.83
10	10 815432 Washer	815432	US $9.97
11	11 8154331 Washer	8154331	US $5.57
12	12 8137711 New Genuine Part	8137711	US $189.78
13	13 825190 Washer	825190	US $3.25
14	14 896602 Nut	896602	US $4.86
15	15 8M4501006 Cover Lower Mount	8M4501006	US $12.75
16	16 8M4501003 Clamp	8M4501003	US $36.67
17	17 69079 Screw, wiring harness leads	69079	US $0.93
18	18 81893435 Screw	81893435	US $4.03
19	19 72521 Lockwasher, internal tooth	72521	US $1.28
20	20 8329321 New Genuine Part	8329321	US $41.50
21	21 833116A19 New Genuine Part	833116A19	US $920.40
22	22 8M0026113 Strainer	8M0026113	US $39.01
23	23 81893435 Screw	81893435	US $4.03
24	24 8329417 Tube, water Long	8329417	US $48.45
	replacement
24	24 8M0042785 TUBE-WATER Long	8M0042785	US $48.45
24	24 8M0042786 Tube Water X-Long	8M0042786	US $74.90
24	24 8329419 Tube, water XX-Long	8329419	US $135.10
	replacement
24	24 8M0042787 TUBE-WATER XX-Long	8M0042787	US $135.10
25	25 832940001 New Genuine Part	832940001	US $6.85
26	26 8329391 New Genuine Part	8329391	US $10.21
27	27 41508 Scerw, starter solenoid to bracket	41508	US $3.36
28	28 880647T04 SPACER XX-Long XX-Long	880647T04	US $359.30
	replacement
28	28 8M0105088 Spacer Driveshaft Housing X-Long XX-Long	8M0105088	US $386.11
29	29 43044 Pin, dowel - without hole XX-Long	43044	US $1.92
30	30 8M0008047 Stud XX-Long	8M0008047	US $40.22
31	31 857137 Screw (M12 x 160) XX-Long	857137	US $15.69
32	32 81893435 Screw [2B360628] & Below	81893435	US $4.03
32	32 8M0103814 Screw (M8 X 35 Mm) [2B360628] & Up	8M0103814	US $3.71
33	33 847541 Washer	847541	US $3.71
34	34 856982 Washer, stainless steel	856982	US $1.62
NI	NI 879150A90 Cover Kit Lower Mount	879150A90	US $66

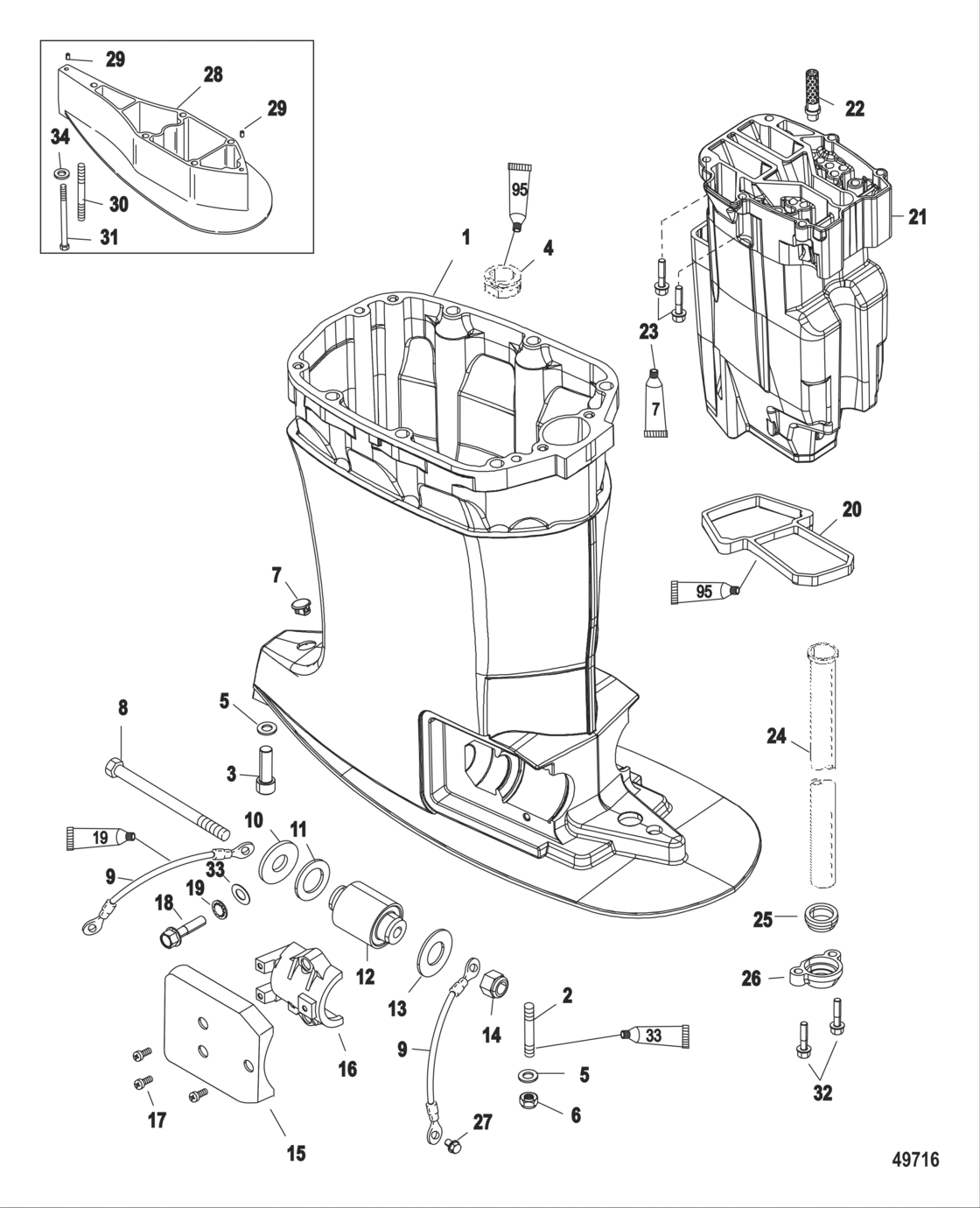

Driveshaft Housing And Exhaust Tube Diagram Mercury-Mercruiser D200 OptiMax 18242171-945896

Driveshaft Housing And Exhaust Tube Diagram Mercury-Mercruiser D200 OptiMax 18242171-945896
