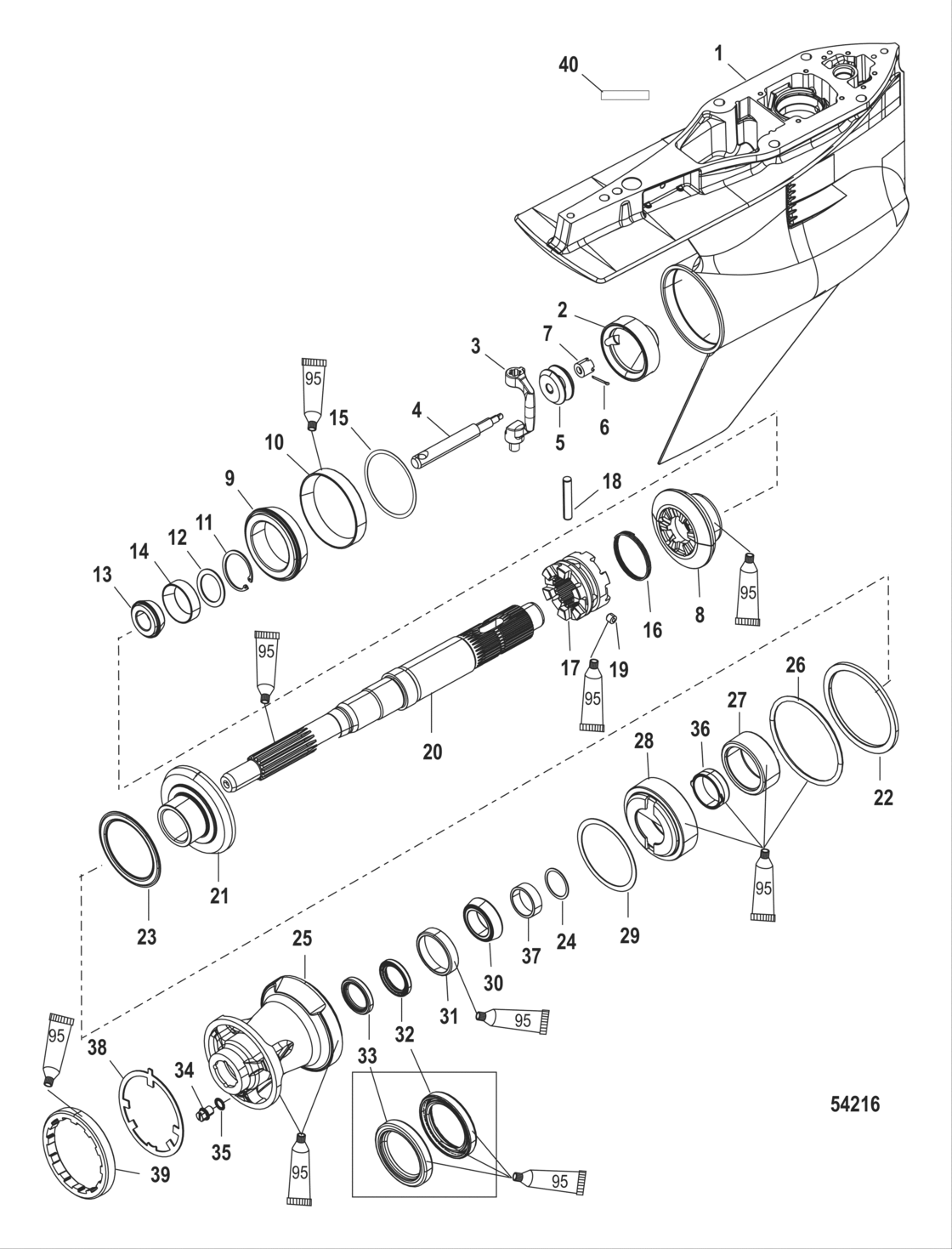

Gear Housing Prop Shaft - Counter Rotation 2B014226 & Up Diagram Mercury-Mercruiser D200 OptiMax
- Engine Capacity
- 3.0
- Power
- 200
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Серийный номер
- 1B912786 & Up
- Серия
- DFI
- Кол-в цилиндров
- 6
- Подача топлива
- EFI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
8M0056631 Gear Housing Assembly Basic Used With 1/4 Inch Shift Crank |
8M0056631 |
US $2,537.01 |
||
|
2
|
2
NSS
Not Sold Separate O-Ring
|
NSS |
— | ||
|
3
|
3
8M0046215 Crank, Shifter 1/4 Pivot Pin |
8M0046215 |
US $68.78 |
||
|
4
|
4
19755T7 New Genuine Part |
19755T7 |
US $48.22 |
||
|
5
|
5
NSS
Not Sold Separate O-Ring
|
NSS |
— | ||
|
6
|
6
469501 Cotter pin, clutch actuating shaft |
469501 |
US $3.82 |
||
|
7
|
7
NSS
Not Sold Separate O-Ring
|
NSS |
— | ||
|
8
|
8
880723A02 Gear Reverse |
880723A02 |
US $749.78 |
||
|
9
|
9
884323T01 Bearing assembly, roller |
884323T01 |
US $86.12 |
||
|
10
|
10
NSS
Not Sold Separate O-Ring
|
NSS |
— | ||
|
11
|
11
23721 Ring, retaining - lower mount |
23721 |
US $1.97 |
||
| replacement | |||||
|
11
|
11
8M0051043 Retaining Ring |
8M0051043 |
US $2.43 |
||
|
12
|
12
892805 Thrust washer |
892805 |
US $15.89 |
||
| replacement | |||||
|
12
|
12
8M0053823 Thrust Washer |
8M0053823 |
US $15.89 |
||
|
13
|
13
884325T01 Bearing assembly, roller-tappered |
884325T01 |
US $101.78 |
||
|
14
|
14
NSS
Not Sold Separate O-Ring
|
NSS |
— | ||
|
15
|
15
884328A01
Shim set
|
884328A01 |
— | ||
|
16
|
16
30893 Spring, retainer-cross pin |
30893 |
US $3.15 |
||
|
17
|
17
880714T01 Clutch |
880714T01 |
US $320.90 |
||
|
18
|
18
30632 Pin, cross |
30632 |
US $3.82 |
||
| replacement | |||||
|
18
|
18
8M0100263 PIN @3 |
8M0100263 |
US $3.82 |
||
|
19
|
19
828356 Pin, detent |
828356 |
US $8.69 |
||
|
20
|
20
8M0069774 Propeller Shaft |
8M0069774 |
US $890.90 |
||
| replacement | |||||
|
20
|
20
8M0140446 Propeller Shaft |
8M0140446 |
US $890.90 |
||
|
21
|
21
880720A03 Gear Kit Forward/pinion |
880720A03 |
US $714.34 |
||
| replacement | |||||
|
21
|
21
8M0119539 Gear Assembly Forward |
8M0119539 |
US $714.34 |
||
|
22
|
22
880699 New Genuine Part |
880699 |
US $9.50 |
||
|
23
|
23
815480 Bearing, thrust |
815480 |
US $33.22 |
||
|
24
|
24
8M0076745 Shim Set |
8M0076745 |
US $537.08 |
||
|
24
|
24
8M0050423 Washer .020 |
8M0050423 |
US $35.44 |
||
|
24
|
24
8M0050424 Washer .022 |
8M0050424 |
US $35.44 |
||
|
24
|
24
8M0050425 Washer .024 |
8M0050425 |
US $20.11 |
||
|
24
|
24
8M0050427 Washer .026 |
8M0050427 |
US $30.78 |
||
|
24
|
24
8M0050428 Washer .028 |
8M0050428 |
US $30.78 |
||
|
24
|
24
8M0050429 Washer .030 |
8M0050429 |
US $19.44 |
||
|
24
|
24
8M0050430 Washer .032 |
8M0050430 |
US $20.34 |
||
|
24
|
24
8M0050431 Washer .034 |
8M0050431 |
US $26.67 |
||
|
24
|
24
8M0050432 Washer .036 |
8M0050432 |
US $26.45 |
||
|
24
|
24
8M0050433 Washer .038 |
8M0050433 |
US $26.45 |
||
|
24
|
24
8M0050434 Washer .040 |
8M0050434 |
US $27.01 |
||
|
24
|
24
8M0050435 Washer .042 |
8M0050435 |
US $29.44 |
||
|
24
|
24
8M0050436 Washer .044 |
8M0050436 |
US $31.22 |
||
|
24
|
24
8M0050437 Washer .046 |
8M0050437 |
US $30.56 |
||
|
24
|
24
8M0050438 Washer .048 |
8M0050438 |
US $27.33 |
||
|
24
|
24
8M0050439 Washer .050 |
8M0050439 |
US $27.44 |
||
|
25
|
25
8M0086846 Carrier Assembly Bearing |
8M0086846 |
US $561.89 |
||
|
26
|
26
896524 O-ring |
896524 |
US $1.92 |
||
|
27
|
27
814653T Bearing Assembly Needle Rollers |
814653T |
US $103.44 |
||
|
28
|
28
880728 Adaptor-bearing |
880728 |
US $232.67 |
||
|
29
|
29
47397A1 Shim set |
47397A1 |
US $21.03 |
||
|
30
|
30
884330T01 Bearing assembly, tappered |
884330T01 |
US $47.04 |
||
|
31
|
31
NSS
Not Sold Separate O-Ring
|
NSS |
— | ||
|
32
|
32
888483 Seal, oil |
888483 |
US $26.04 |
||
| replacement | |||||
|
32
|
32
8M0204700 Seal, oil |
8M0204700 |
US $30.48 |
||
|
33
|
33
888483 Seal, oil |
888483 |
US $26.04 |
||
| replacement | |||||
|
33
|
33
8M0204700 Seal, oil |
8M0204700 |
US $30.48 |
||
|
34
|
34
880717A01 Screw/seal kit |
880717A01 |
US $31.33 |
||
|
35
|
35
830749 Seal |
830749 |
US $5.93 |
||
| replacement | |||||
|
35
|
35
8M0204693 Seal |
8M0204693 |
US $5.93 |
||
|
36
|
36
8M0053183 Adapter |
8M0053183 |
US $20.78 |
||
|
37
|
37
8M0064306 Spacer |
8M0064306 |
US $18.78 |
||
|
38
|
38
880697 Keyed washer |
880697 |
US $5.92 |
||
|
39
|
39
79448
New Genuine Part
|
79448 |
— | ||
| replacement | |||||
|
39
|
39
8M2011027
Retainer
|
8M2011027 |
— | ||
|
40
|
40
NSS
Not Sold Separate O-Ring
|
NSS |
— | ||
|
NI
|
NI
880686A52 Gear Housing Assembly Complete |
880686A52 |
US $9,873.60 |
||
|
NI
|
NI
880686A53 Gear Housing Assembly Complete |
880686A53 |
US $7,965.71 |
||
|
NI
|
NI
830749A01 Seal Kit Gear Housing |
830749A01 |
US $89.44 |
||
