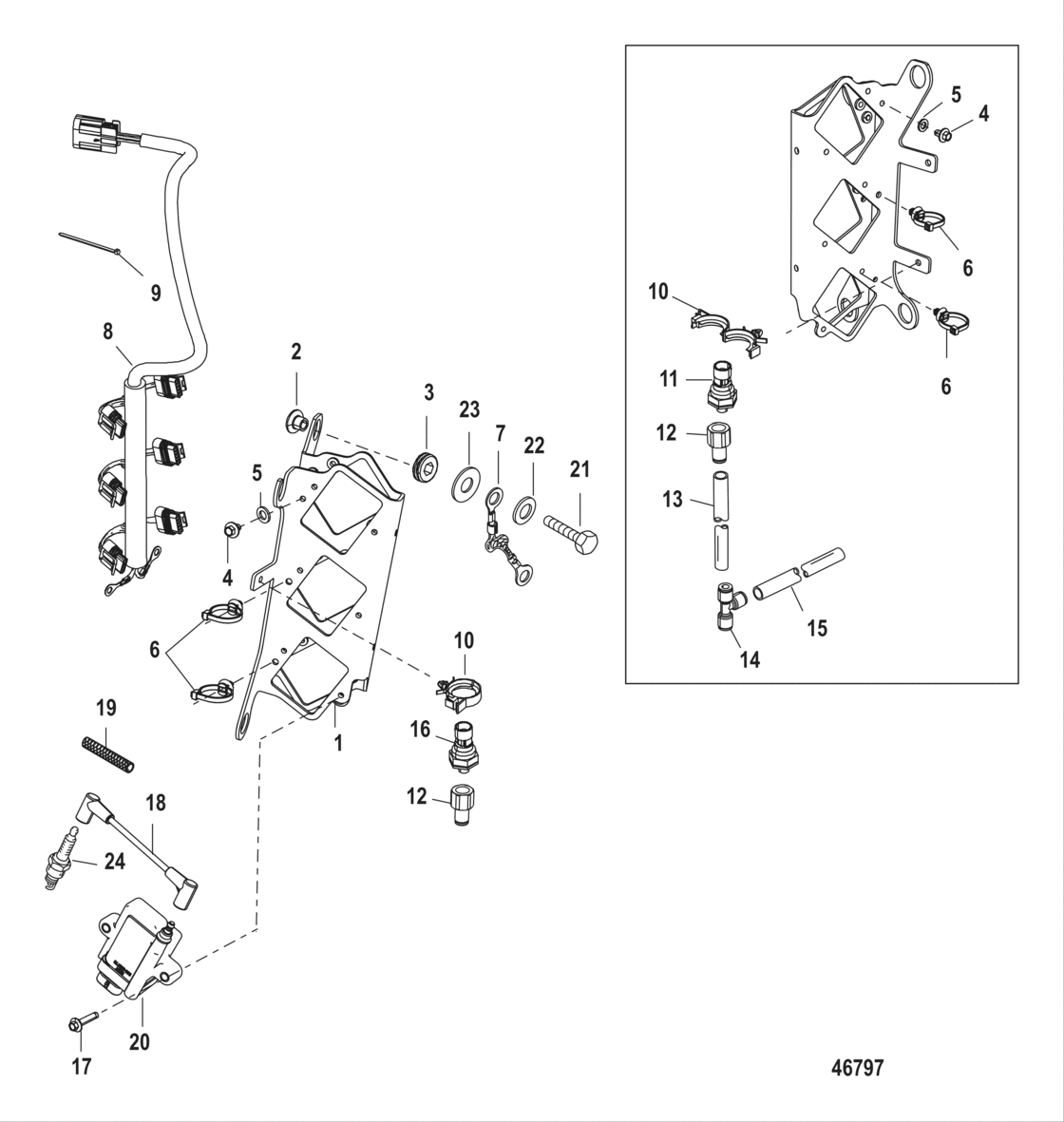

Coil Plate Assembly Diagram Mercury-Mercruiser D200 OptiMax
- Engine Capacity
- 2.5
- Power
- 200
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Серийный номер
- 1E050629 & Up
- Серия
- XS SST
- Кол-в цилиндров
- 6
- Подача топлива
- EFI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
884271 Plate-coil |
884271 |
US $97.89 |
||
|
2
|
2
8502341 Bushing |
8502341 |
US $2.54 |
||
|
3
|
3
833155 Grommet |
833155 |
US $3.71 |
||
|
4
|
4
82129110 Screw |
82129110 |
US $1.62 |
||
|
5
|
5
29245 Washer, stainless steel, water pump body stud |
29245 |
US $1.28 |
||
|
6
|
6
899145 Clip, tie strap |
899145 |
US $3.01 |
||
|
7
|
7
858414A1 Cable Assembly Braided |
858414A1 |
US $19.44 |
||
|
8
|
8
892910T03 Harness Assembly Coil |
892910T03 |
US $170 |
||
|
9
|
9
816311T Tie Strap (8.00 Inches) |
816311T |
US $0.51 |
||
|
10
|
10
883066 Clip |
883066 |
US $1.86 |
||
|
11
|
11
881879010 New Genuine Part |
881879010 |
US $206.67 |
||
| replacement | |||||
|
11
|
11
8M6000623 Sensor |
8M6000623 |
US $206.67 |
||
|
12
|
12
892403 Fitting |
892403 |
US $16.46 |
||
|
13
|
13
85978571 Tubing, |
85978571 |
US $53.68 |
||
|
14
|
14
875207 Tee, fitting |
875207 |
US $13.46 |
||
|
15
|
15
85978571 Tubing, |
85978571 |
US $53.68 |
||
|
16
|
16
881879T11 Sensor, pressure |
881879T11 |
US $201.01 |
||
|
17
|
17
82129130 Screw |
82129130 |
US $3.94 |
||
|
18
|
18
881908T Cable set |
881908T |
US $192.34 |
||
|
19
|
19
82854735
Conduit
|
82854735 |
— | ||
|
20
|
20
879984T01 Coil, Ignition |
879984T01 |
from US $229.78 |
||
| replacement | |||||
|
20
|
20
8M0077471 IGNITION COIL |
8M0077471 |
US $229.78 |
||
|
21
|
21
60411 Screw |
60411 |
US $1.28 |
||
|
22
|
22
8M0042642 Washer (.323 X .562 X .063) |
8M0042642 |
US $1.80 |
||
|
23
|
23
49436 Washer |
49436 |
US $0.69 |
||
|
24
|
24
8M0009927 Spark Plug (Ngk-Izfr7M) |
8M0009927 |
US $40.69 |
||
|
NI
|
NI
NSS
Not Sold Separate O-Ring
|
NSS |
— | ||
