Exhaust Plate Diagram Mercury-Mercruiser D200 OptiMax

Engine Capacity
2.5
Power
200
Stroke (2-stroke or 4-stroke)
2 stroke
Серийный номер
1E050629 & Up
Серия
XS SST
Кол-в цилиндров
6
Подача топлива
EFI

Difficulties in parts search?

Parts list

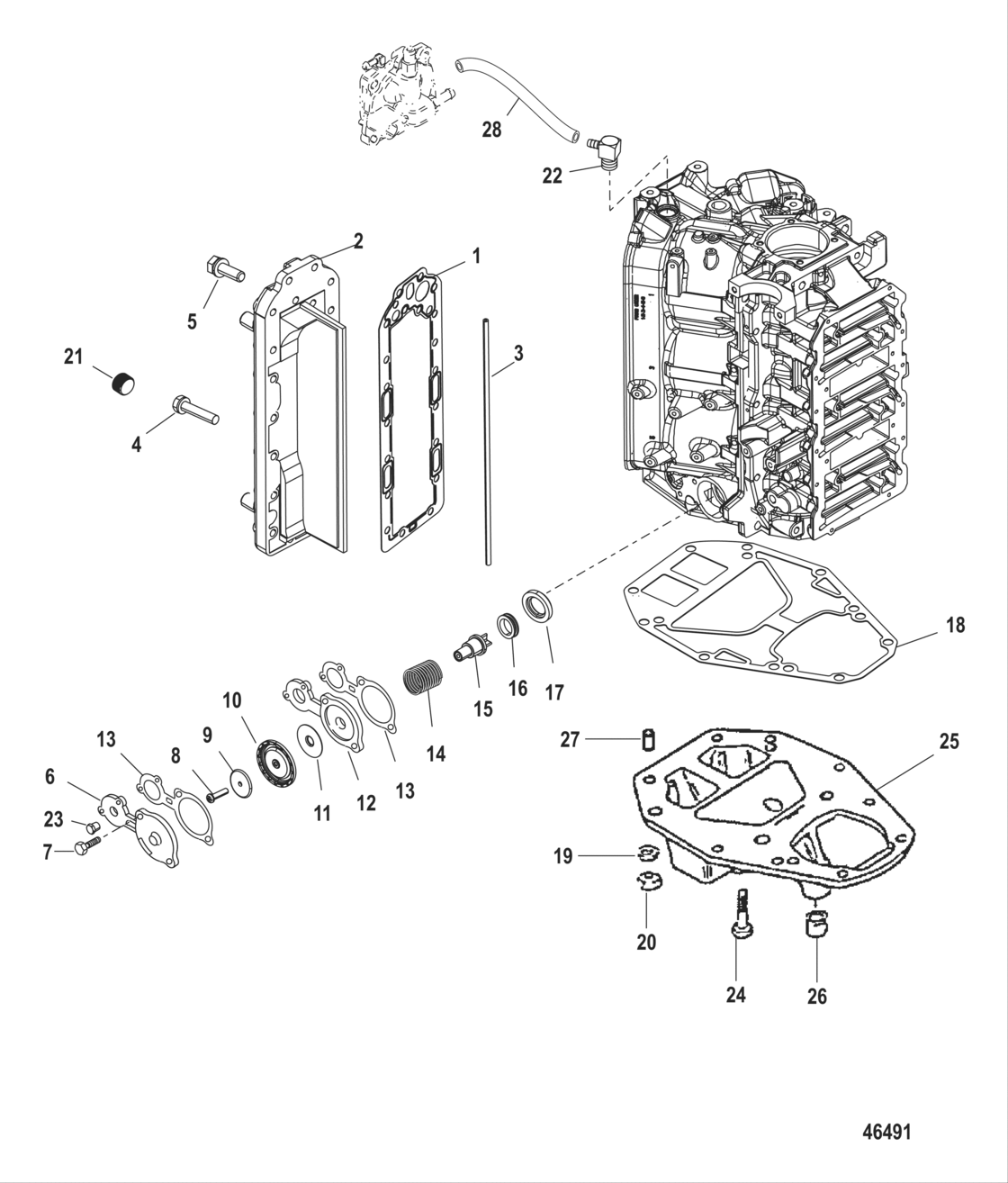

Exhaust Plate

Difficulties in parts search?

Exhaust Plate
Description OEM Part # Price
1
1

190506

Gasket

190506

US $35.14

2
2

828343A05

New Genuine Part

828343A05

US $319.44

3
3

814754

Seal

814754

US $9.28

4
4

8263561

Screw and washer,

8263561

US $1.62

5
5

881190

Screw

881190

US $1.28

6
6

8M0039767

Cover Relief Valve

8M0039767

US $53.01

7
7

31984

Screw, fuel pump to block

31984

US $1.62

8
8

69570

Screw, , valve body to reservoir

69570

US $1.62

9
9

76451

Washer

76451

US $2.21

10
10

144791

New Genuine Part

144791

US $18.21

11
11

16496

New Genuine Part

16496

US $3.60

12
12

16497A1

New Genuine Part

16497A1

US $39.89

13
13

78690002

Gasket

78690002

US $3.14

14
14

42996

Spring

42996

US $1.62

15
15

14480

New Genuine Part

14480

US $9.15

16
16

64872

Grommet, poppet valve

64872

US $3.14

17
17

65848

New Genuine Part

65848

US $3.01

18
18

8231422

Gasket (Powerhead)

8231422

US $72.82

19
19

822838

Washer (.401 X .745 X .097) (Powerhead Attaching)

822838

US $1.98

20
20

82671013

Nut, stainless steel

82671013

US $4.06

21
21

428611

Fitting, pipe - brass

428611

US $8.98

22
22

8603001

Fitting

8603001

US $22.03

23
23

36382

Fitting, brass, pipe

36382

US $4.86

24
24

818218

Screw (.375-16 X 2.500)

818218

US $29.84

25
25

8M0053611

Plate Assembly Exhaust Extension

8M0053611

US $1,203.49

26
26

88397

Seal

88397

US $5.95

27
27

16527

Pin Dowel

16527

US $37.84

28
28

774572

Hose, , coolant recovery bottle

(Cut to Fit)

774572

US $72.11

NI
NI

881805A01

Gasket Set Engine

881805A01

US $178.22

NI
NI

848040A51

Powerhead Assembly Partial

848040A51

US $12,397.38
