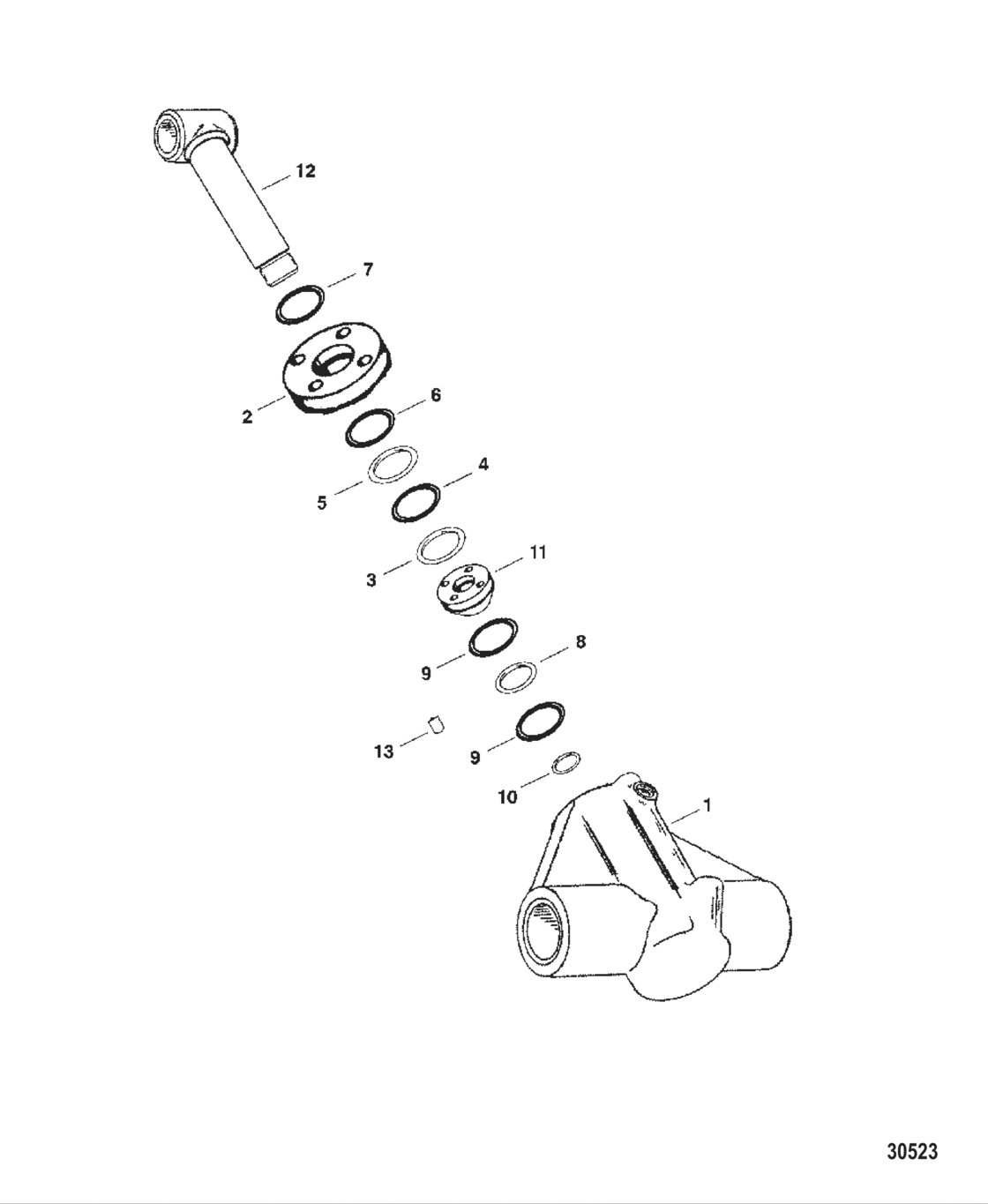

Trim Cylinder Assembly Diagram Mercury-Mercruiser D200 OptiMax
- Engine Capacity
- 2.5
- Power
- 200
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Серийный номер
- 1E050629 & Up
- Серия
- XS SST
- Кол-в цилиндров
- 6
- Подача топлива
- EFI
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
NSS
Not Sold Separate O-Ring
(Black) |
NSS |
— | ||
|
2
|
2
44123 New Genuine Part |
44123 |
US $103.90 |
||
|
3
|
3
NSS
Not Sold Separate O-Ring
|
NSS |
— | ||
|
4
|
4
NSS
Not Sold Separate O-Ring
|
NSS |
— | ||
|
5
|
5
NSS
Not Sold Separate O-Ring
|
NSS |
— | ||
|
6
|
6
NSS
Not Sold Separate O-Ring
|
NSS |
— | ||
|
7
|
7
NSS
Not Sold Separate O-Ring
|
NSS |
— | ||
|
8
|
8
NSS
Not Sold Separate O-Ring
|
NSS |
— | ||
|
9
|
9
NSS
Not Sold Separate O-Ring
|
NSS |
— | ||
|
10
|
10
NSS
Not Sold Separate O-Ring
|
NSS |
— | ||
|
11
|
11
44125 New Genuine Part |
44125 |
US $305.33 |
||
|
12
|
12
8185162 New Genuine Part |
8185162 |
US $723.36 |
||
|
13
|
13
822103 New Genuine Part |
822103 |
US $7.36 |
||
|
NI
|
NI
44120A5 New Genuine Part |
44120A5 |
US $1,896.32 |
||
| replacement | |||||
|
NI
|
NI
8M0050805 TRIM CYL ASSY |
8M0050805 |
US $1,896.32 |
||
|
NI
|
NI
11163A1 Repair Kit Trim Cylinder |
11163A1 |
US $43.98 |
||
