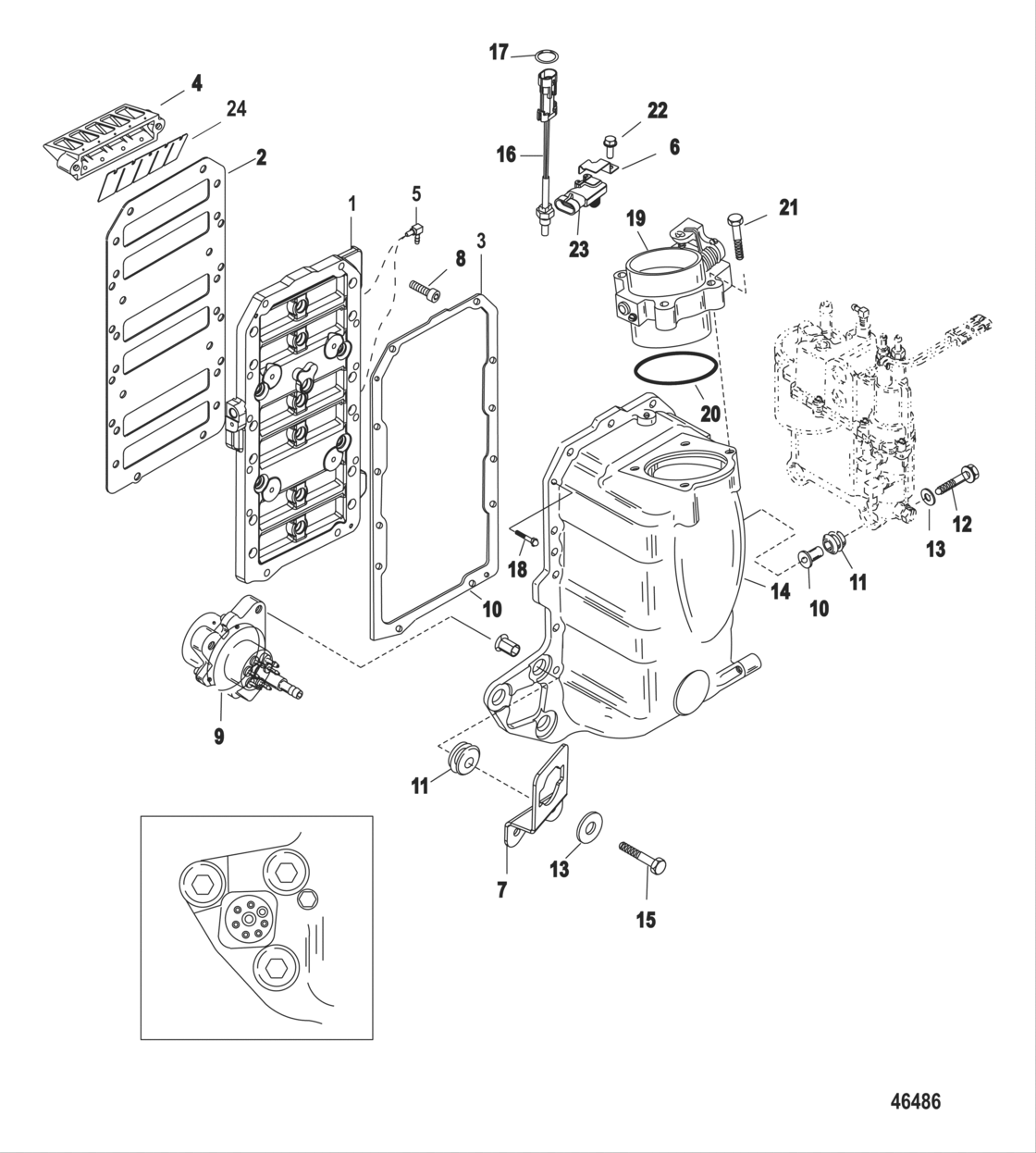

Air Handler Components Diagram Mercury-Mercruiser D200 OptiMax
- Engine Capacity
- 2.5
- Power
- 200
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Серийный номер
- 1E050852 & Up
- Серия
- XS ROS
- Кол-в цилиндров
- 6
- Подача топлива
- EFI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
8M0055654 Adapter Plate Kit |
8M0055654 |
US $350.02 |
||
|
2
|
2
840484 Gasket |
840484 |
US $49.44 |
||
|
3
|
3
840485 Gasket |
840485 |
US $36.90 |
||
|
4
|
4
840805T1 New Genuine Part |
840805T1 |
US $293.44 |
||
|
5
|
5
15133 Elbow |
15133 |
US $22.03 |
||
|
6
|
6
884522 New Genuine Part |
884522 |
US $11.82 |
||
|
7
|
7
892296 Bracket |
892296 |
US $30.78 |
||
|
8
|
8
55715 Screw, , oil pan to block |
55715 |
US $2.43 |
||
|
9
|
9
857149T05 New Genuine Part |
857149T05 |
US $632.21 |
||
| replacement | |||||
|
9
|
9
8M0128080 PUMP ASSY - OIL |
8M0128080 |
US $1,026.19 |
||
|
10
|
10
855364 Bushing |
855364 |
US $5.22 |
||
|
11
|
11
855362001 Grommet |
855362001 |
US $2.78 |
||
|
12
|
12
81893435 Screw |
81893435 |
US $4.03 |
||
|
13
|
13
817274 Washer |
817274 |
US $1.28 |
||
|
14
|
14
850248T03 Air plenum kit |
850248T03 |
US $215.15 |
||
|
15
|
15
81893430 Screw |
81893430 |
US $8.93 |
||
|
16
|
16
885342002 SENSOR TEMP |
885342002 |
from US $47.22 |
||
|
17
|
17
896699 O-ring |
896699 |
US $11.01 |
||
|
18
|
18
883942 Screw |
883942 |
US $3.14 |
||
|
19
|
19
855422A1 New Genuine Part |
855422A1 |
US $321.10 |
||
|
20
|
20
855423 O-ring |
855423 |
US $26.67 |
||
|
21
|
21
82130040 Screw |
82130040 |
US $6.96 |
||
|
22
|
22
1993716 Screw |
1993716 |
US $2.54 |
||
|
23
|
23
854445 Sensor (map) |
854445 |
US $158.66 |
||
|
24
|
24
8M0020312 New Genuine Part |
8M0020312 |
US $25.25 |
||
|
NI
|
NI
8M0055651 Air Handler Assembly |
8M0055651 |
US $2,223.76 |
||
|
NI
|
NI
848040A51 Powerhead Assembly Partial |
848040A51 |
US $12,397.38 |
||
