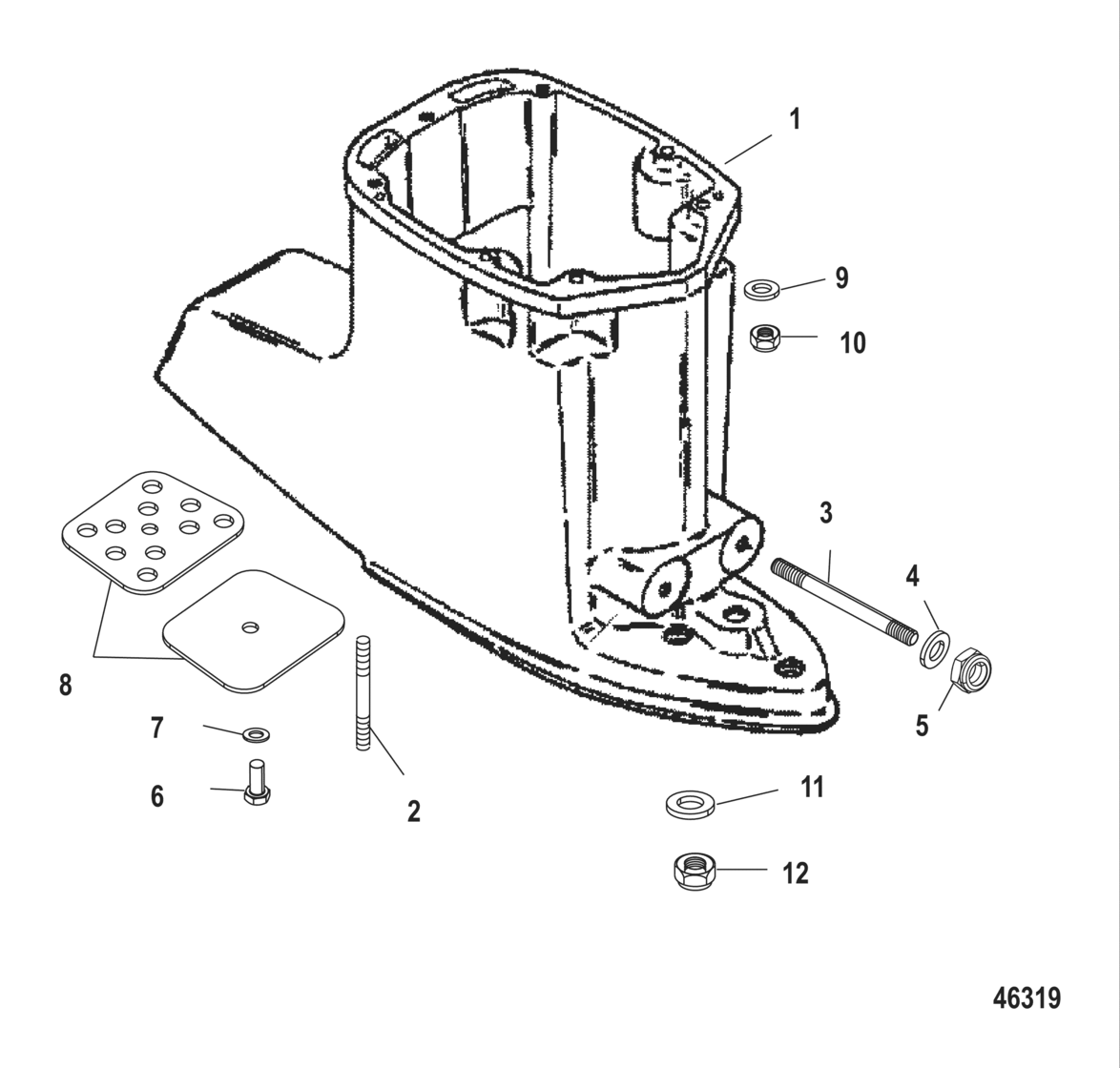

Driveshaft Housing Diagram Mercury-Mercruiser D200 OptiMax
- Engine Capacity
- 2.5
- Power
- 200
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Серийный номер
- 1E050852 & Up
- Серия
- XS ROS
- Кол-в цилиндров
- 6
- Подача топлива
- EFI
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
818900T24 Housing Driveshaft |
818900T24 |
US $3,692.02 |
||
|
2
|
2
59579 Stud, , bell housing to driveshaft housing |
59579 |
US $9.15 |
||
|
3
|
3
818908 Stud (.500-13/.500-20 X 4.120) |
818908 |
US $33.47 |
||
|
4
|
4
816056 Washer |
816056 |
US $3.65 |
||
|
5
|
5
898832 Nut |
898832 |
US $3.14 |
||
|
6
|
6
39349 Screw, stainless steel |
39349 |
US $1.62 |
||
|
7
|
7
847539 Washer |
847539 |
US $3.01 |
||
|
8
|
8
818909 New Genuine Part |
818909 |
US $26.02 |
||
|
9
|
9
822838 Washer (.401 X .745 X .097) (Powerhead Attaching) |
822838 |
US $1.98 |
||
|
10
|
10
826709113
Nut
(HEIGHT = .281) |
826709113 |
— | ||
|
10
|
10
82671013 Nut, stainless steel(HEIGHT = .468) |
82671013 |
US $4.06 |
||
|
11
|
11
822836 Washer (.445 X .805 X .108) |
822836 |
US $4.13 |
||
|
12
|
12
859116 Nut, , bell housing stud |
859116 |
US $5.34 |
||
|
NI
|
NI
881805A01 Gasket Set Engine |
881805A01 |
US $178.22 |
