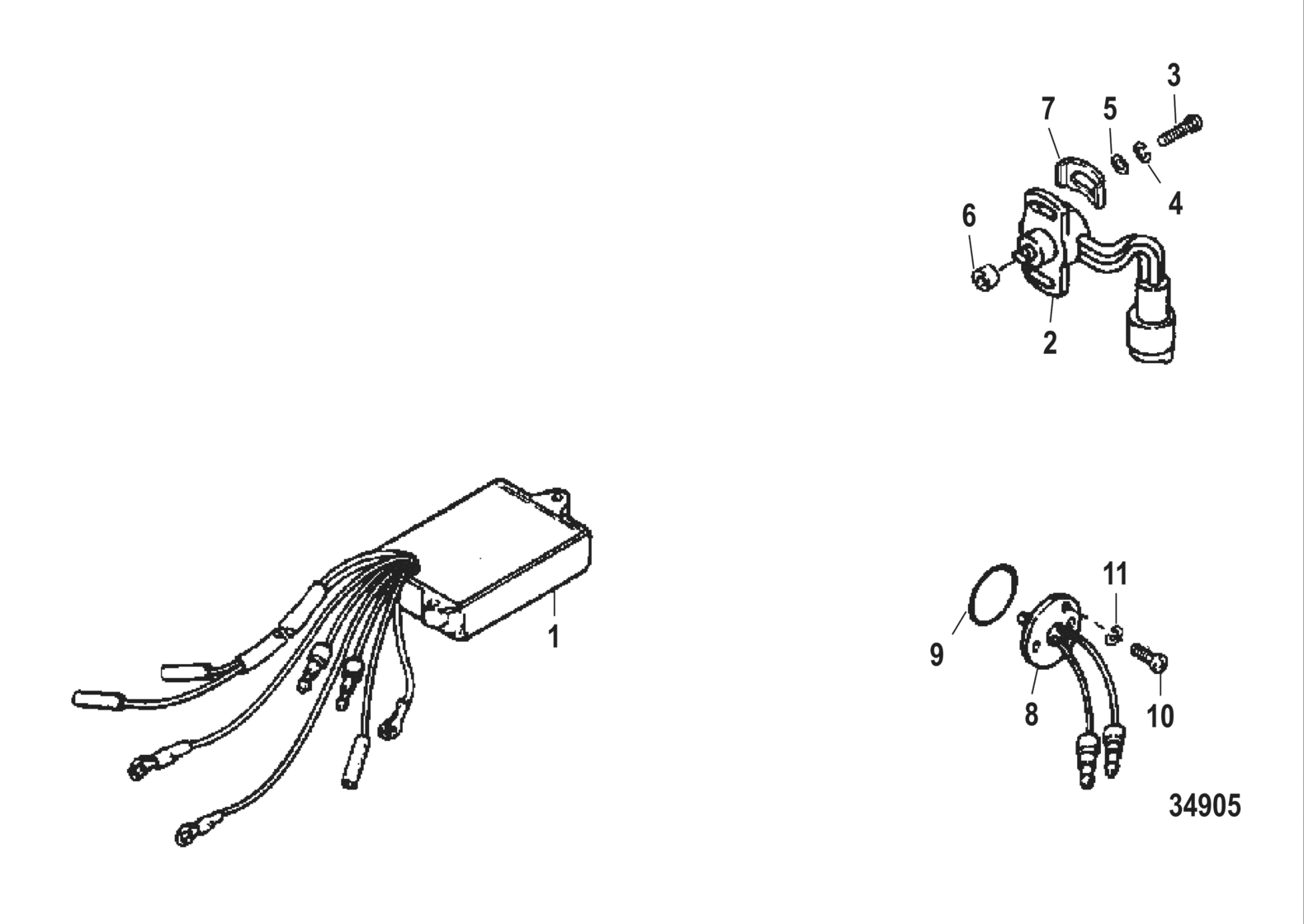

Temperature Sensor Diagram Mercury-Mercruiser E150 Pro MAX / Super Magnum
- Power
- 150
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Country
- Canada
- Серийный номер
- 0G610050 THRU 0G856999
- Кол-в цилиндров
- 6
- Подача топлива
- EFI
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
41470A25 New Genuine Part |
41470A25 |
US $468.74 |
||
|
2
|
2
14851 New Genuine Part |
14851 |
US $875.78 |
||
| replacement | |||||
|
2
|
2
14851T03 INDICATOR |
14851T03 |
US $875.78 |
||
|
3
|
3
15150 Screw |
15150 |
US $1.50 |
||
|
4
|
4
26995 Lockwasher, starter solenoid terminal |
26995 |
US $0.93 |
||
|
5
|
5
30164 Nla |
30164 |
US $1.97 |
||
|
6
|
6
15885 Sleeve |
15885 |
US $12.18 |
||
|
7
|
7
813501 New Genuine Part |
813501 |
US $9.74 |
||
|
8
|
8
13221A1 New Genuine Part |
13221A1 |
US $80.11 |
||
| replacement | |||||
|
8
|
8
13221T01 SENSOR |
13221T01 |
US $80.11 |
||
|
9
|
9
45711 O-ring, , valve cover |
45711 |
US $1.62 |
||
|
10
|
10
57583 Screw |
57583 |
US $1.15 |
||
| replacement | |||||
|
10
|
10
57583T Screw #8-32X3/8 |
57583T |
US $1.15 |
||
|
11
|
11
26995 Lockwasher, starter solenoid terminal |
26995 |
US $0.93 |
||
|
NI
|
NI
823142A98 Gasket Set Engine |
823142A98 |
US $322.34 |
||
