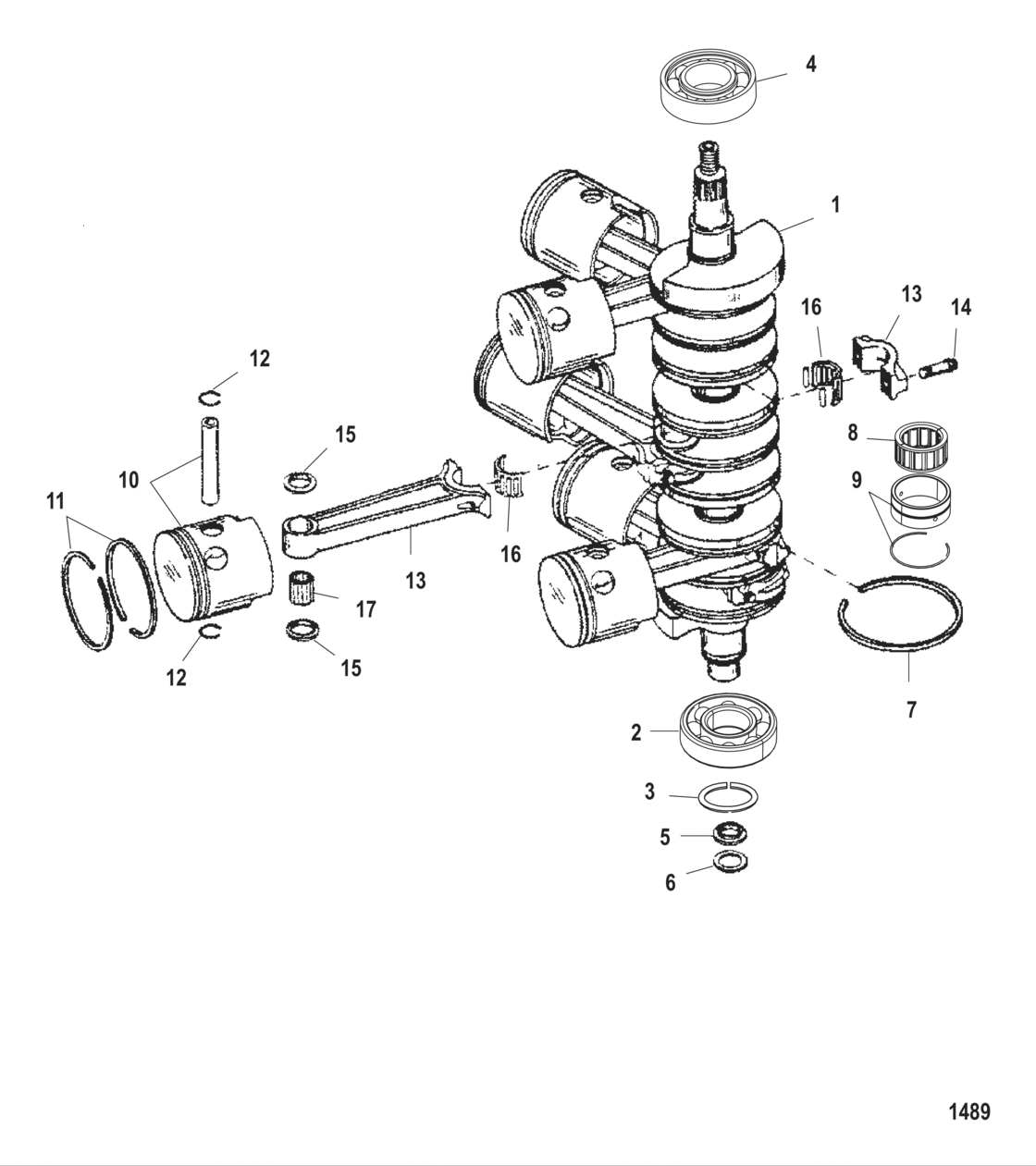

Crankshaft, Pistons And Connecting Rods Diagram Mercury-Mercruiser E2.5
- Year
- 2.5
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Country
- USA
- Серийный номер
- 0G857000 THRU 0T999519
- Кол-в цилиндров
- 6
- Подача топлива
- EFI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
848330T4 Crankshaft Assembly |
848330T4 |
US $2,931.44 |
||
|
2
|
2
67923T Bearing Ball |
67923T |
US $114.45 |
||
|
3
|
3
67446 Ring, ball bearing |
67446 |
US $3.25 |
||
|
4
|
4
849819 Bearing Ball (Upper) |
849819 |
US $349.15 |
||
|
5
|
5
54196A6 New Genuine Part |
54196A6 |
US $22.45 |
||
|
6
|
6
65800 New Genuine Part |
65800 |
US $3.94 |
||
|
7
|
7
673773 Ring (Crankshaft Sealing) |
673773 |
US $54.78 |
||
| replacement | |||||
|
7
|
7
8M0072093 RING |
8M0072093 |
US $54.78 |
||
|
8
|
8
16756T8 Bearing Center Main |
16756T8 |
US $97.66 |
||
|
9
|
9
NSS
Not Sold Separate O-Ring
|
NSS |
— | ||
|
10
|
10
827352T9 PistonStarboard [0T430855] & Below |
827352T9 |
US $578.94 |
||
| replacement | |||||
|
10
|
10
827352T20 PistonStarboard [0T430855] & Below |
827352T20 |
US $578.94 |
||
|
10
|
10
827352T20 PistonStarboard [0T430856] & Up |
827352T20 |
US $578.94 |
||
|
10
|
10
827353T9 PistonPort [0T430855] & Below |
827353T9 |
US $578.94 |
||
| replacement | |||||
|
10
|
10
827353T20 PistonPort [0T430855] & Below |
827353T20 |
US $578.94 |
||
|
10
|
10
827353T20 PistonPort [0T430856] & Up |
827353T20 |
US $578.94 |
||
|
11
|
11
848200A12 Ring Set Piston[0T430855] & Below |
848200A12 |
US $618.22 |
||
|
11
|
11
840663A12 Ring Set Piston[0T430856] & Up |
840663A12 |
US $813.65 |
||
|
12
|
12
857196 Lock ring |
857196 |
US $3.50 |
||
|
13
|
13
818141A9
Connecting Rod Assembly
|
818141A9 |
— | ||
|
14
|
14
848475 Screw |
848475 |
US $31.66 |
||
|
15
|
15
812876 New Genuine Part |
812876 |
US $5.41 |
||
| replacement | |||||
|
15
|
15
8M0012298 Шайба |
8M0012298 |
US $4.64 |
||
|
16
|
16
8M0082405 Bearing Kit |
8M0082405 |
US $100.11 |
||
|
17
|
17
822553 needle |
822553 |
US $0.46 |
||
|
NI
|
NI
849770A1 Gasket Set Engine |
849770A1 |
US $652.98 |
||
|
NI
|
NI
848040T40
Powerhead Assembly
|
848040T40 |
— | ||
| replacement | |||||
|
NI
|
NI
848040T48
POWERHEAD
|
848040T48 |
— | ||
