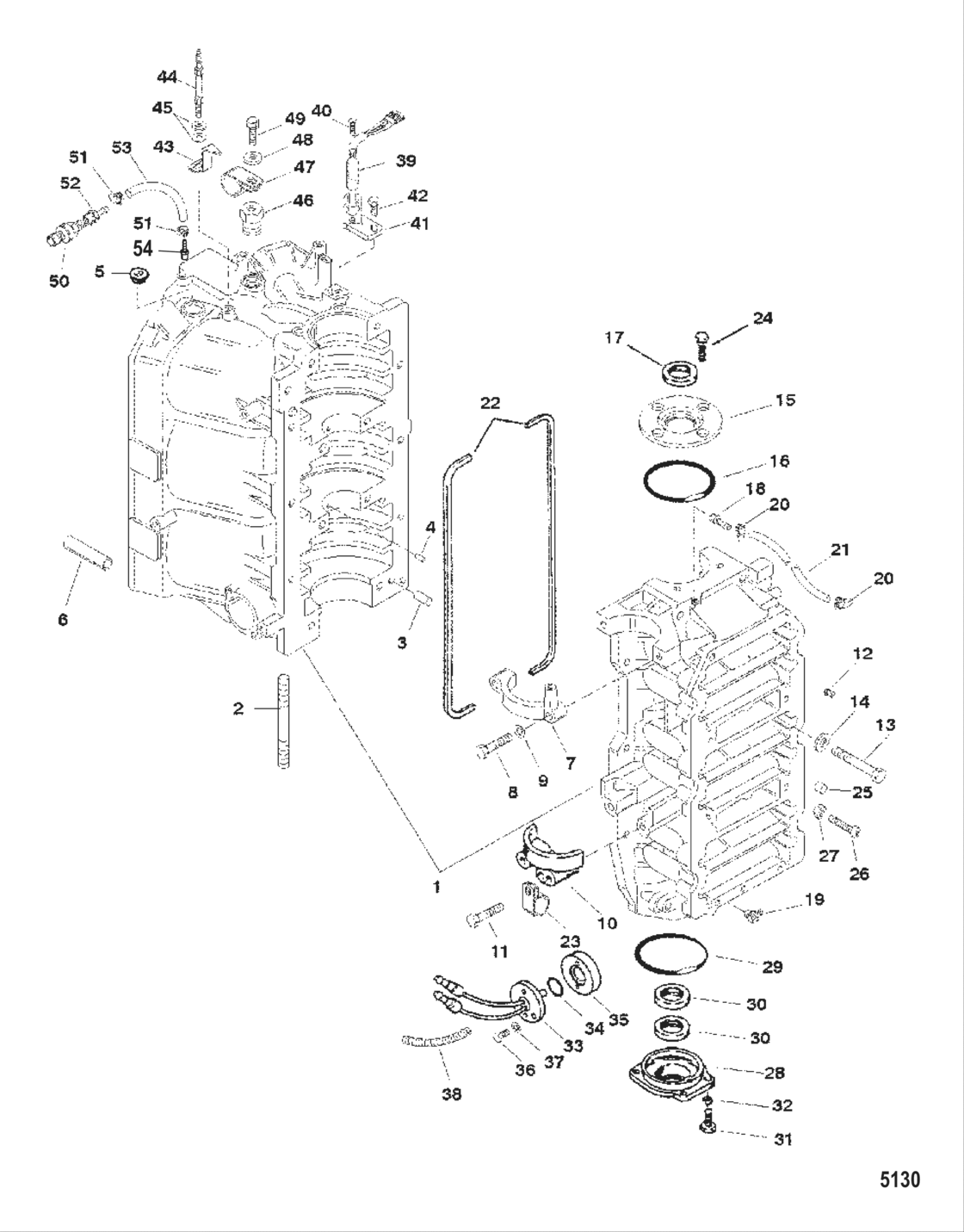

Cylinder Block And End Caps Diagram Mercury-Mercruiser E2.5
- Year
- 2.5
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Country
- USA
- Серийный номер
- 0G857000 THRU 0T999519
- Кол-в цилиндров
- 6
- Подача топлива
- EFI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
822230A47
Cylinder Block
|
822230A47 |
— | ||
|
2
|
2
847530 Stud (.375-16/.375-24 X 2.040) (1-3/4 In.)(2 Inches) |
847530 |
US $19.55 |
||
| replacement | |||||
|
2
|
2
8M0034443 STUD(2 Inches) |
8M0034443 |
US $19.55 |
||
|
2
|
2
847529 Stud (.375-16/.375-24 X 2.490)(2-1/2 Inches) |
847529 |
US $28.70 |
||
| replacement | |||||
|
2
|
2
8M0034430 STUD(2-1/2 Inches) |
8M0034430 |
US $28.70 |
||
|
2
|
2
822358
Stud (2-3/4 In.)
(2-3/4 Inches) |
822358 |
— | ||
|
2
|
2
847532 Stud (.375-16/.375-24 X 5.750)(5-3/4 Inches)(Short and Offshore) |
847532 |
US $28.50 |
||
| replacement | |||||
|
2
|
2
8M0034437 STUD(5-3/4 Inches)(Short and Offshore) |
8M0034437 |
US $28.50 |
||
|
2
|
2
847533 Stud (7 In.)(Long)(7 Inches)(Long-Non-Offshore) |
847533 |
US $29.95 |
||
|
3
|
3
43044 Pin, dowel - without hole |
43044 |
US $1.92 |
||
|
4
|
4
67296 Dowel pin |
67296 |
US $3.14 |
||
| replacement | |||||
|
4
|
4
8M0036405 Pin (Bearing Race) |
8M0036405 |
US $3.14 |
||
|
5
|
5
821881
Pipe Plug
|
821881 |
— | ||
|
6
|
6
830756109 Hose, , map sensorCut to 1-1/2 Inches |
830756109 |
US $54.61 |
||
| replacement | |||||
|
6
|
6
8M0108355 Hose (57 Inches Bulk) To Vapor Separator Cover - Cut To 18 InchesCut to 1-1/2 Inches |
8M0108355 |
US $54.61 |
||
|
7
|
7
422491 New Genuine Part |
422491 |
US $129.33 |
||
| replacement | |||||
|
7
|
7
8M0088723 BRACKET-STARTER |
8M0088723 |
US $129.33 |
||
|
8
|
8
840202 Screw (.312-18 X 1.500) |
840202 |
US $4.18 |
||
|
9
|
9
53166 Lockwasher |
53166 |
US $1.62 |
||
|
10
|
10
76867 N.l.a. |
76867 |
US $27.66 |
||
|
11
|
11
815549 Screw |
815549 |
US $3.71 |
||
|
12
|
12
42657A3 CHECK VALVE |
42657A3 |
US $7.45 |
||
|
13
|
13
66717 Screw, , crankcase to cylinder block(3-1/4 Inches) |
66717 |
US $4.40 |
||
|
13
|
13
823188 Screw (3/8-16 X 3-1/2 In.)(3-1/2 Inches.) |
823188 |
US $8.62 |
||
|
13
|
13
8231991 Screw (3/8-16 X 1-1/4 In.)(1.25 Inches) |
8231991 |
US $2.56 |
||
|
14
|
14
822838 Washer (.401 X .745 X .097) (Powerhead Attaching) |
822838 |
US $1.98 |
||
|
15
|
15
849366T1 End cap-upper |
849366T1 |
US $191.81 |
||
|
16
|
16
54030 "o" ring, gear housing |
54030 |
US $6.21 |
||
|
17
|
17
41953 Oil seal |
41953 |
US $22.02 |
||
|
18
|
18
426233 Check valve |
426233 |
US $6.96 |
||
|
19
|
19
818189A1 Check Valve (Bottom Of Crankcase) |
818189A1 |
US $27.70 |
||
|
20
|
20
56762 New Genuine Part |
56762 |
US $0.35 |
||
|
21
|
21
6628570 Tubing Tygon (48.00 Inches Bulk) |
6628570 |
US $36 |
||
|
22
|
22
11338 Gasket, sealing |
11338 |
US $2.54 |
||
|
23
|
23
849525 Clip |
849525 |
US $5.76 |
||
|
24
|
24
881190 Screw |
881190 |
US $1.28 |
||
|
25
|
25
26852 New Genuine Part |
26852 |
US $3.47 |
||
|
26
|
26
64022 Screw, stop bracket adjusting |
64022 |
US $3.25 |
||
|
27
|
27
64015 Nut, alternator terminal |
64015 |
US $2.43 |
||
|
28
|
28
7809T1 End Cap Assembly Lower |
7809T1 |
US $250.56 |
||
|
29
|
29
62700 "o" ring, oil filter adaptor |
62700 |
US $3.47 |
||
|
30
|
30
41953 Oil seal |
41953 |
US $22.02 |
||
|
31
|
31
28636 Scerw, cover |
28636 |
US $2.09 |
||
|
32
|
32
26992 Lockwasher, stainless steel, control valve screw |
26992 |
US $0.93 |
||
|
33
|
33
13221A1 New Genuine Part |
13221A1 |
US $80.11 |
||
| replacement | |||||
|
33
|
33
13221T01 SENSOR |
13221T01 |
US $80.11 |
||
|
34
|
34
45711 O-ring, , valve cover |
45711 |
US $1.62 |
||
|
35
|
35
816885 New Genuine Part |
816885 |
US $30.21 |
||
|
36
|
36
34696 Screw, plate - metal |
34696 |
US $4.64 |
||
|
37
|
37
20670 Washer, fuel pump stud |
20670 |
US $1.50 |
||
|
38
|
38
828547253 Conduit, , cut to 13 inches |
828547253 |
US $2.78 |
||
|
39
|
39
8285581 Encoder |
8285581 |
US $291.33 |
||
|
40
|
40
31716
Screw, rubber bumper to saddle
|
31716 |
— | ||
|
41
|
41
8494832 New Genuine Part |
8494832 |
US $99.66 |
||
|
42
|
42
90192 Screw, , extension to plate |
90192 |
US $1.62 |
||
|
43
|
43
849364
New Genuine Part
|
849364 |
— | ||
|
44
|
44
849823
Stud
|
849823 |
— | ||
|
45
|
45
72761 Washer, stainless steel |
72761 |
US $1.55 |
||
|
46
|
46
328022 Plug, pipe brass |
328022 |
US $6.72 |
||
|
47
|
47
849775 Clamp |
849775 |
US $7.31 |
||
|
48
|
48
814806 Washer, stainless steel |
814806 |
US $1.62 |
||
|
49
|
49
90285 Screw, mounting bracket |
90285 |
US $1.62 |
||
|
50
|
50
881879A7 New Genuine Part[0G980967] & Up |
881879A7 |
US $258.90 |
||
|
50
|
50
856535 New Genuine Part[0G980966] & Below |
856535 |
US $168.34 |
||
| replacement | |||||
|
50
|
50
8M6000628 SENSOR PRESSURE[0G980966] & Below |
8M6000628 |
US $168.34 |
||
|
51
|
51
816311T Tie Strap (8.00 Inches) |
816311T |
US $0.51 |
||
|
52
|
52
856594 Fitting, barbed |
856594 |
US $9.39 |
||
|
53
|
53
9912878 Hose(26 Inches Required)(DESIGN II) |
9912878 |
US $26.67 |
||
|
54
|
54
859092 Fitting(DESIGN I) |
859092 |
US $4.06 |
||
|
NI
|
NI
18594T11 Liner Assembly Cylinder(.020 Oversize) |
18594T11 |
US $441.10 |
||
|
NI
|
NI
849770A1 Gasket Set Engine |
849770A1 |
US $652.98 |
||
|
NI
|
NI
848040T40
Powerhead Assembly
|
848040T40 |
— | ||
| replacement | |||||
|
NI
|
NI
848040T48
POWERHEAD
|
848040T48 |
— | ||
