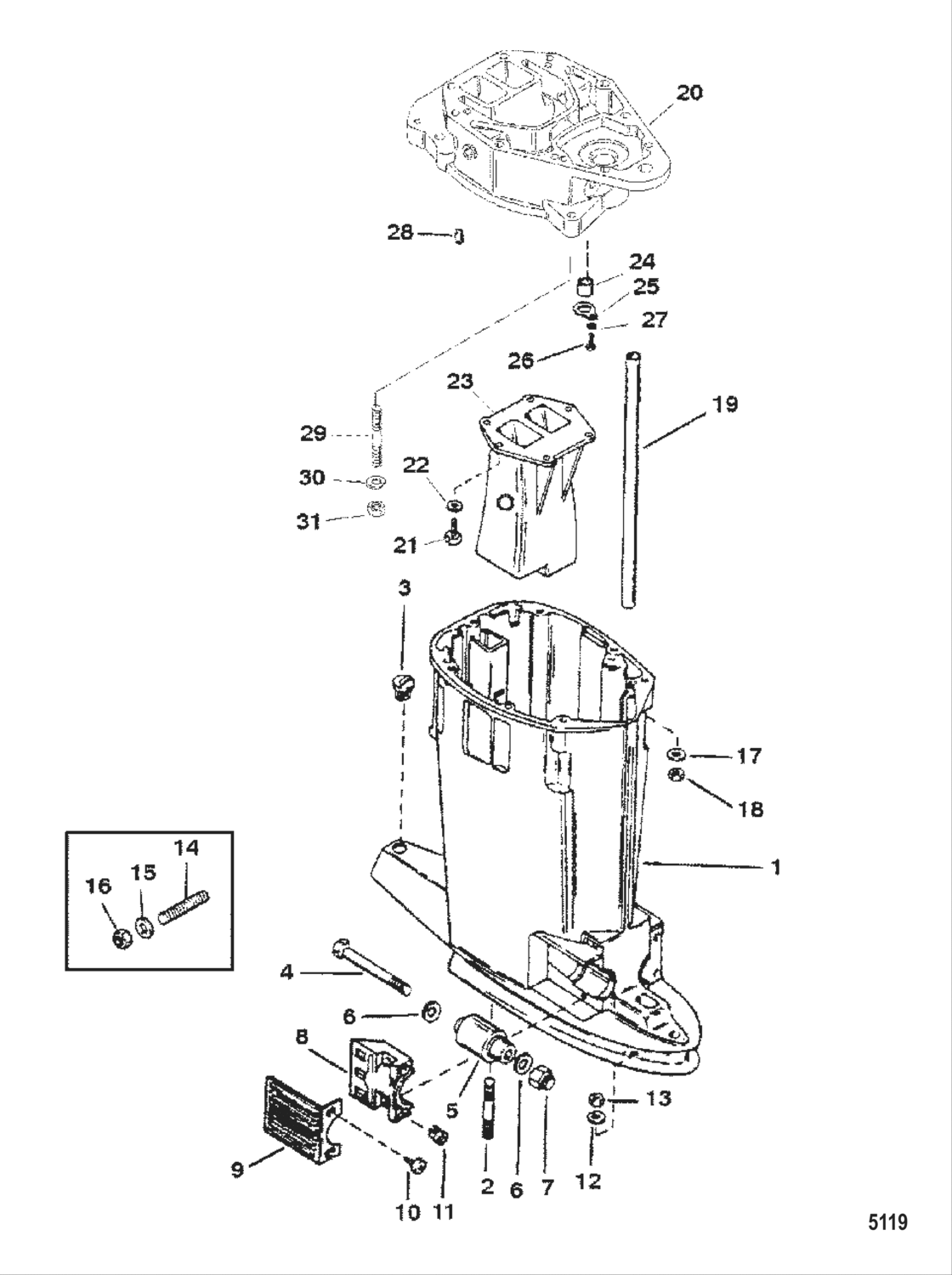

Driveshaft Housing Long-Standard Diagram Mercury-Mercruiser E2.5
- Year
- 2.5
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Country
- USA
- Серийный номер
- 0G857000 THRU 0T999519
- Кол-в цилиндров
- 6
- Подача топлива
- EFI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
8837T5
Housing Assembly Driveshaft
|
8837T5 |
— | ||
|
2
|
2
59579 Stud, , bell housing to driveshaft housing |
59579 |
US $9.15 |
||
|
3
|
3
64649 Plug, plastic - water pick-up hole |
64649 |
US $4.64 |
||
|
4
|
4
63474 Screw, , lower mount |
63474 |
US $22.14 |
||
| replacement | |||||
|
4
|
4
898831 Screw |
898831 |
US $22.14 |
||
|
5
|
5
816054T1 New Genuine Part |
816054T1 |
US $114.24 |
||
|
6
|
6
816056 Washer |
816056 |
US $3.65 |
||
|
7
|
7
82670817 Nut |
82670817 |
US $3.14 |
||
| replacement | |||||
|
7
|
7
898832 Nut |
898832 |
US $3.14 |
||
|
8
|
8
67076 Clamp, lower mount |
67076 |
US $22.67 |
||
| replacement | |||||
|
8
|
8
8M0036782 CLAMP |
8M0036782 |
US $22.67 |
||
|
9
|
9
67077T Cover-lower-black |
67077T |
US $24.22 |
||
| replacement | |||||
|
9
|
9
8M4500752 COVER |
8M4500752 |
US $24.22 |
||
|
10
|
10
88417 Screw, cover |
88417 |
US $1.62 |
||
|
11
|
11
35521 Nut, lower mount clamp cover |
35521 |
US $2.43 |
||
|
12
|
12
822836 Washer (.445 X .805 X .108) |
822836 |
US $4.13 |
||
|
13
|
13
859116 Nut, , bell housing stud |
859116 |
US $5.34 |
||
|
14
|
14
69058 Stud, exhaust plate |
69058 |
US $10.54 |
||
| replacement | |||||
|
14
|
14
8M0034449 Stud (.312 X 1.69) (Water Pump) |
8M0034449 |
US $10.54 |
||
|
15
|
15
22753 Washer |
22753 |
US $3.82 |
||
|
16
|
16
82670811 Nut |
82670811 |
US $2.21 |
||
|
17
|
17
822838 Washer (.401 X .745 X .097) (Powerhead Attaching) |
822838 |
US $1.98 |
||
|
18
|
18
82671013 Nut, stainless steel(FULL) |
82671013 |
US $4.06 |
||
|
18
|
18
826709113
Nut
(THIN) |
826709113 |
— | ||
|
19
|
19
8476502 Tube Water (Long) |
8476502 |
US $113.22 |
||
|
20
|
20
848284T15
Plate asy-exh-2.5
|
848284T15 |
— | ||
|
21
|
21
823258 Screw (.312-18 X 1.250) |
823258 |
US $6.98 |
||
|
22
|
22
822714 Washer |
822714 |
US $14.30 |
||
|
23
|
23
848308T3 New Genuine Part |
848308T3 |
US $765.86 |
||
|
24
|
24
88397 Seal |
88397 |
US $5.95 |
||
|
25
|
25
8476581 New Genuine Part |
8476581 |
US $22.64 |
||
|
26
|
26
28635 Screw, stainless steel, water tube sealing cover to gimbal housing |
28635 |
US $1.62 |
||
|
27
|
27
26992 Lockwasher, stainless steel, control valve screw |
26992 |
US $0.93 |
||
|
28
|
28
43044 Pin, dowel - without hole(PLATE TO DRIVESHAFT HOUSING) |
43044 |
US $1.92 |
||
|
28
|
28
823106 Pin, dowel(PLATE TO POWERHEAD) |
823106 |
US $2.13 |
||
| replacement | |||||
|
28
|
28
8M0043826 Pin Dowel (Plate To Powerhead)(PLATE TO POWERHEAD) |
8M0043826 |
US $2.13 |
||
|
29
|
29
56295 Stud, , driveshaft housing to gear housing |
56295 |
US $4.53 |
||
|
30
|
30
822836 Washer (.445 X .805 X .108) |
822836 |
US $4.13 |
||
|
31
|
31
859116 Nut, , bell housing stud |
859116 |
US $5.34 |
||
