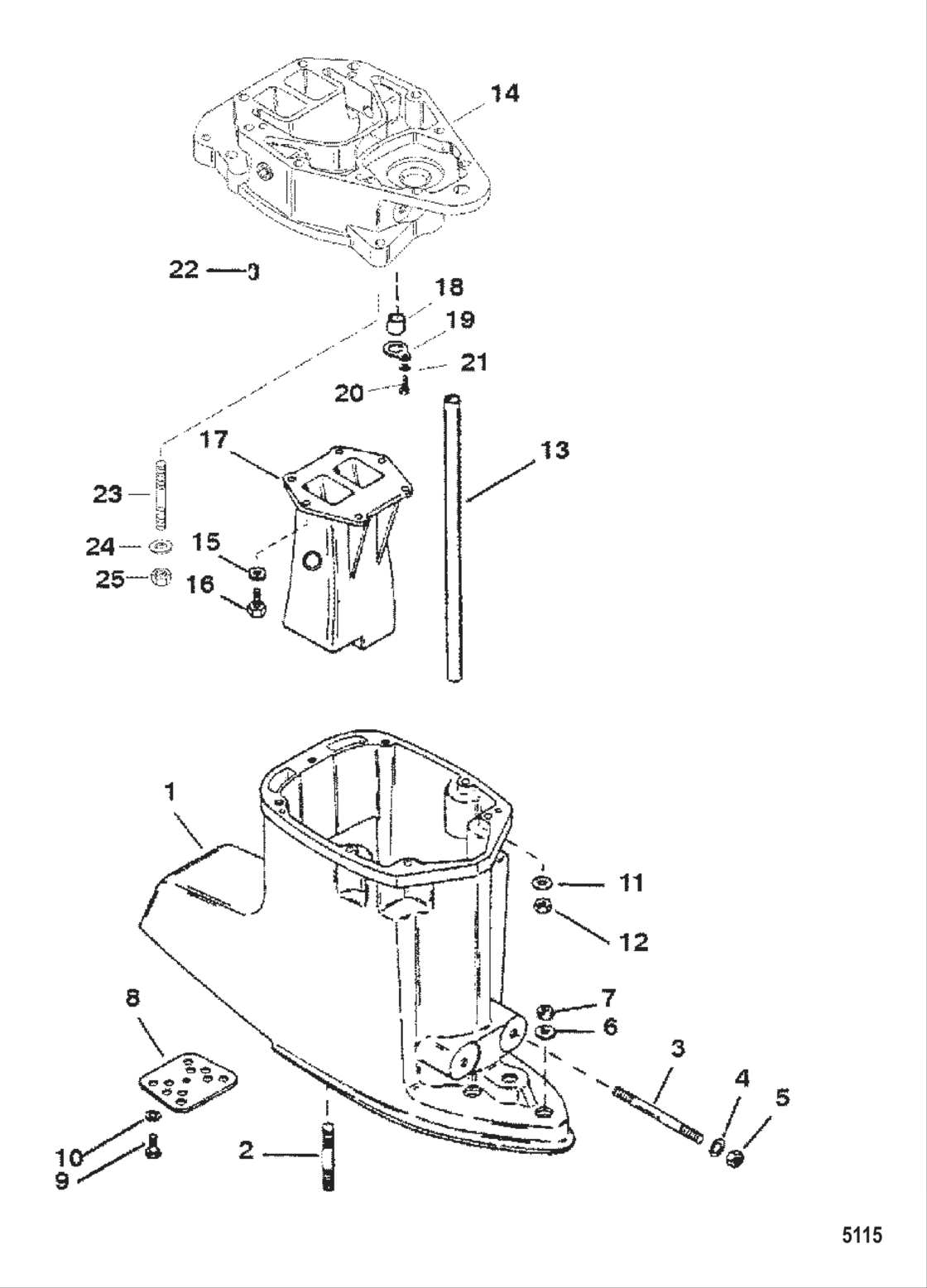

Driveshaft Housing Short-Standard Diagram Mercury-Mercruiser E2.5
- Year
- 2.5
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Country
- USA
- Серийный номер
- 0G857000 THRU 0T999519
- Кол-в цилиндров
- 6
- Подача топлива
- EFI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
818900T8 Housing Driveshaft |
818900T8 |
US $3,692.02 |
||
| replacement | |||||
|
1
|
1
818900T24 Housing Driveshaft |
818900T24 |
US $3,692.02 |
||
|
2
|
2
59579 Stud, , bell housing to driveshaft housing |
59579 |
US $9.15 |
||
|
3
|
3
818908 Stud (.500-13/.500-20 X 4.120) |
818908 |
US $33.47 |
||
|
4
|
4
816056 Washer |
816056 |
US $3.65 |
||
|
5
|
5
82670817 Nut |
82670817 |
US $3.14 |
||
| replacement | |||||
|
5
|
5
898832 Nut |
898832 |
US $3.14 |
||
|
6
|
6
822836 Washer (.445 X .805 X .108) |
822836 |
US $4.13 |
||
|
7
|
7
859116 Nut, , bell housing stud |
859116 |
US $5.34 |
||
|
8
|
8
818909 New Genuine Part |
818909 |
US $26.02 |
||
|
9
|
9
39349 Screw, stainless steel |
39349 |
US $1.62 |
||
|
10
|
10
847539 Washer |
847539 |
US $3.01 |
||
|
11
|
11
822838 Washer (.401 X .745 X .097) (Powerhead Attaching) |
822838 |
US $1.98 |
||
|
12
|
12
82671013 Nut, stainless steel(FULL) |
82671013 |
US $4.06 |
||
|
12
|
12
826709113
Nut
(THIN) |
826709113 |
— | ||
|
13
|
13
8476503 Tube Water |
8476503 |
US $118.11 |
||
|
14
|
14
848284T15
Plate asy-exh-2.5
|
848284T15 |
— | ||
|
15
|
15
822714 Washer |
822714 |
US $14.30 |
||
|
16
|
16
823258 Screw (.312-18 X 1.250) |
823258 |
US $6.98 |
||
|
17
|
17
848308T3 New Genuine Part |
848308T3 |
US $765.86 |
||
|
18
|
18
88397 Seal |
88397 |
US $5.95 |
||
|
19
|
19
8476581 New Genuine Part |
8476581 |
US $22.64 |
||
|
20
|
20
28635 Screw, stainless steel, water tube sealing cover to gimbal housing |
28635 |
US $1.62 |
||
|
21
|
21
26992 Lockwasher, stainless steel, control valve screw |
26992 |
US $0.93 |
||
|
22
|
22
43044 Pin, dowel - without holePLATE TO DRIVESHAFT HSG. |
43044 |
US $1.92 |
||
|
22
|
22
823106 Pin, dowelPLATE TO POWERHEAD |
823106 |
US $2.13 |
||
| replacement | |||||
|
22
|
22
8M0043826 Pin Dowel (Plate To Powerhead)PLATE TO POWERHEAD |
8M0043826 |
US $2.13 |
||
|
23
|
23
56295 Stud, , driveshaft housing to gear housing |
56295 |
US $4.53 |
||
|
24
|
24
822836 Washer (.445 X .805 X .108) |
822836 |
US $4.13 |
||
|
25
|
25
859116 Nut, , bell housing stud |
859116 |
US $5.34 |
||
