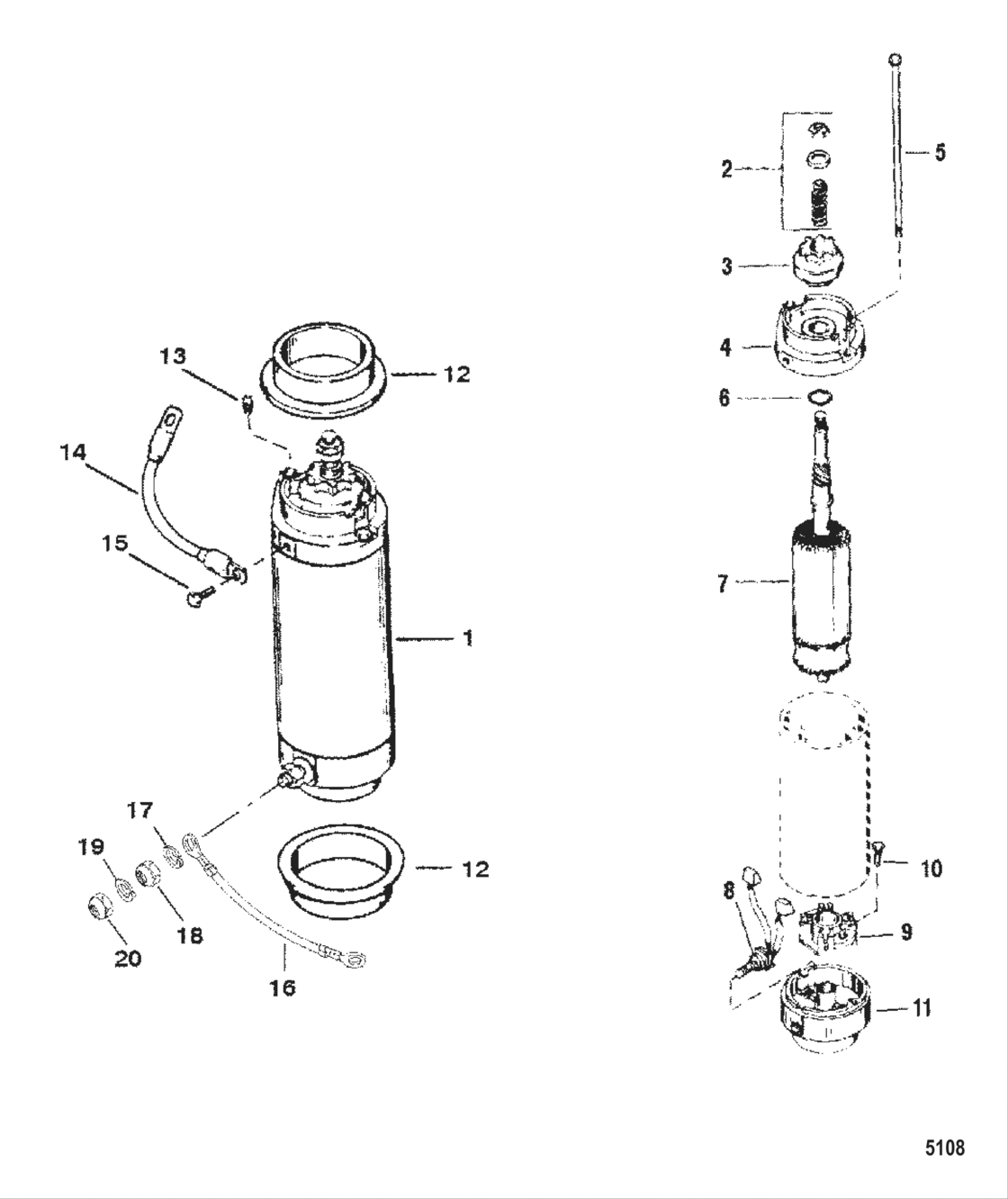

Starter Motor Diagram Mercury-Mercruiser E2.5
- Year
- 2.5
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Country
- USA
- Серийный номер
- 0G857000 THRU 0T999519
- Кол-в цилиндров
- 6
- Подача топлива
- EFI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
79472T2 Starter Motor Assembly[0T430452] & Up |
79472T2 |
US $421.10 |
||
| replacement | |||||
|
1
|
1
893893 STARTER MOTOR[0T430452] & Up |
893893 |
US $421.10 |
||
|
1
|
1
884238T Starter motor assembly[0T429940] THRU [0T430451] |
884238T |
US $421.10 |
||
| replacement | |||||
|
1
|
1
893893 STARTER MOTOR[0T429940] THRU [0T430451] |
893893 |
US $421.10 |
||
|
1
|
1
794721 Starter motor assembly[0T429939] & Below |
794721 |
US $421.10 |
||
| replacement | |||||
|
1
|
1
893893 STARTER MOTOR[0T429939] & Below |
893893 |
US $421.10 |
||
|
2
|
2
90645 New Genuine Part |
90645 |
US $51.01 |
||
|
3
|
3
13310T2
New Genuine Part
[0T430452] & Up |
13310T2 |
— | ||
|
3
|
3
13310T1 Pinion assy-drive[0T430451] & Below |
13310T1 |
US $71.10 |
||
|
4
|
4
75660 PLATE, DRIVE END |
75660 |
US $94.22 |
||
|
5
|
5
749681 Thru bolt |
749681 |
US $12.40 |
||
|
6
|
6
NSS
Not Sold Separate O-Ring
(United Technologies #WA3122) |
NSS |
— | ||
|
7
|
7
792161
New Genuine Part
[0T429940] & Up |
792161 |
— | ||
|
7
|
7
79216
New Genuine Part
[0T429939] & Below |
79216 |
— | ||
|
8
|
8
75384 BRUSH SET |
75384 |
US $44.10 |
||
| replacement | |||||
|
8
|
8
898265016
New Genuine Part
|
898265016 |
— | ||
|
9
|
9
61787
New Genuine Part
|
61787 |
— | ||
| replacement | |||||
|
9
|
9
898265014
New Genuine Part
|
898265014 |
— | ||
|
10
|
10
NSS
Not Sold Separate O-Ring
(United Technologies #02441-22-SC-30SM) |
NSS |
— | ||
|
11
|
11
15386 New Genuine Part |
15386 |
US $133.66 |
||
| replacement | |||||
|
11
|
11
15386001 New Genuine Part |
15386001 |
US $133.66 |
||
|
12
|
12
56703 New Genuine Part |
56703 |
US $8.11 |
||
| replacement | |||||
|
12
|
12
8M0034918 Collar |
8M0034918 |
US $8.11 |
||
|
13
|
13
68042 New Genuine Part |
68042 |
US $4.06 |
||
| replacement | |||||
|
13
|
13
8M0043376 STOP |
8M0043376 |
US $4.06 |
||
|
14
|
14
93388A1 Cable, starter to sound attenuator |
93388A1 |
US $8.93 |
||
|
15
|
15
69035 Screw and lockwasher, stainless steel |
69035 |
US $1.62 |
||
|
16
|
16
93388A14 Cable Assembly Yellow/black |
93388A14 |
US $19.47 |
||
|
17
|
17
53166 Lockwasher |
53166 |
US $1.62 |
||
|
18
|
18
68292 Nut |
68292 |
US $3.36 |
||
|
19
|
19
26992 Lockwasher, stainless steel, control valve screw |
26992 |
US $0.93 |
||
|
20
|
20
64015 Nut, alternator terminal |
64015 |
US $2.43 |
||
