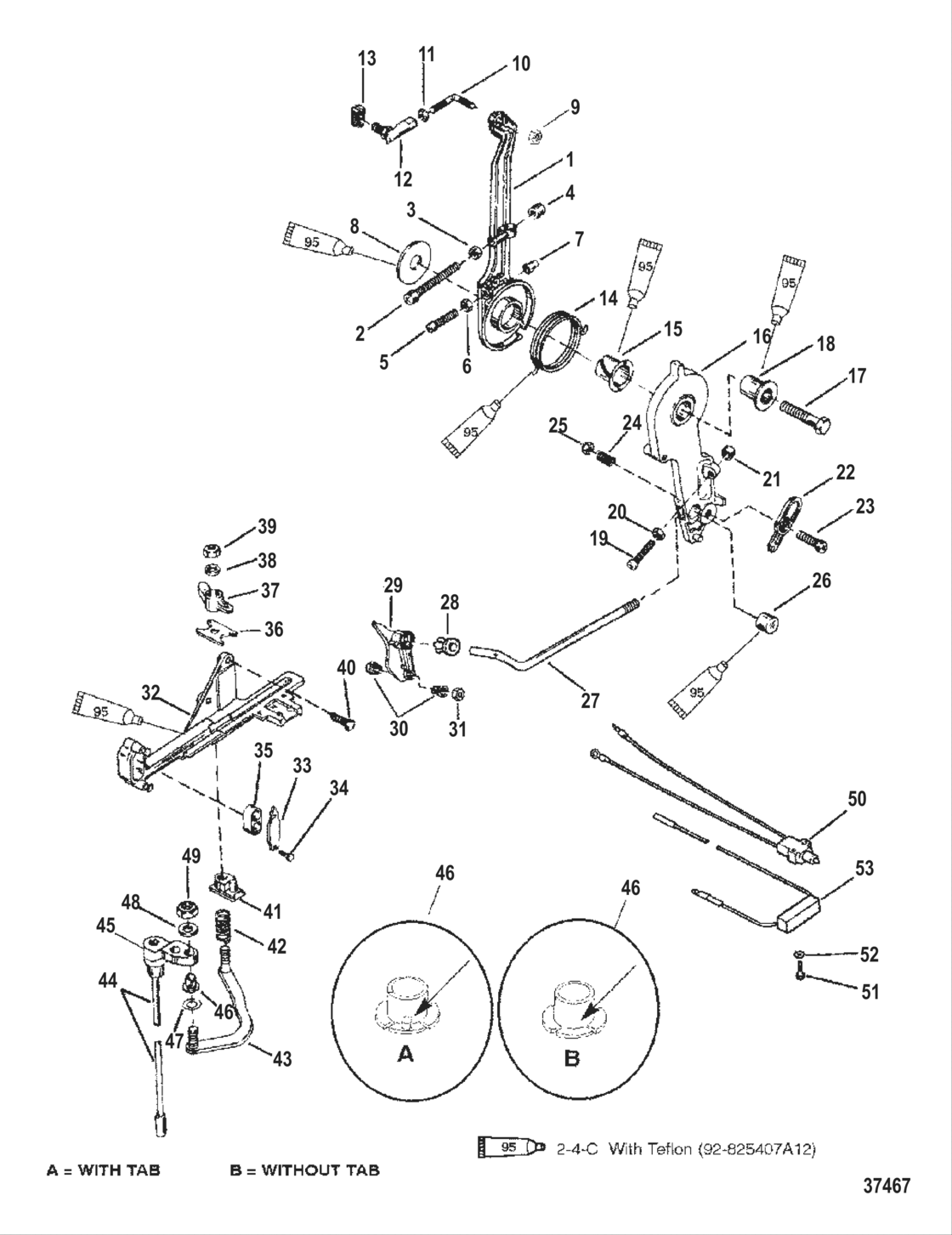

Throttle Lever And Shift Shaft Diagram Mercury-Mercruiser E200 XRI
- Power
- 200
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Country
- USA
- Серийный номер
- 0G303046 THRU 0G760299
- Кол-в цилиндров
- 6
- Подача топлива
- EFI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
41094A3 New Genuine Part |
41094A3 |
US $88.11 |
||
|
2
|
2
64022 Screw, stop bracket adjusting |
64022 |
US $3.25 |
||
|
3
|
3
64015 Nut, alternator terminal |
64015 |
US $2.43 |
||
|
4
|
4
26852 New Genuine Part |
26852 |
US $3.47 |
||
|
5
|
5
13627 Screw |
13627 |
US $3.94 |
||
|
6
|
6
68219 Nut, stainless steel |
68219 |
US $3.40 |
||
|
7
|
7
48039 New Genuine Part |
48039 |
US $3.47 |
||
|
8
|
8
46765 Washer, , front anchor pin |
46765 |
US $11.99 |
||
|
9
|
9
46438 Nut, , circuit breaker screw |
46438 |
US $5.10 |
||
|
10
|
10
76035 Rod-link |
76035 |
US $68.14 |
||
|
11
|
11
45076 Nut, circuit breaker terminal |
45076 |
US $2.09 |
||
|
12
|
12
62459 New Genuine Part |
62459 |
US $17.55 |
||
| replacement | |||||
|
12
|
12
62459T BALL JOINT ASSY |
62459T |
US $29.92 |
||
|
13
|
13
74897 New Genuine Part |
74897 |
US $11.47 |
||
| replacement | |||||
|
13
|
13
74897T PIVOT |
74897T |
US $15.03 |
||
|
14
|
14
823235 Spring |
823235 |
US $5.68 |
||
|
15
|
15
55171
Bushing, throttle control lever screw
|
55171 |
— | ||
|
16
|
16
41095 New Genuine Part |
41095 |
US $81.78 |
||
| replacement | |||||
|
16
|
16
410952 New Genuine Part |
410952 |
US $81.78 |
||
|
17
|
17
818165 Screw |
818165 |
US $5.34 |
||
|
18
|
18
55164 Bushing, throttle control lever screw |
55164 |
US $19.94 |
||
|
19
|
19
64022 Screw, stop bracket adjusting |
64022 |
US $3.25 |
||
|
20
|
20
64015 Nut, alternator terminal |
64015 |
US $2.43 |
||
|
21
|
21
26852 New Genuine Part |
26852 |
US $3.47 |
||
|
22
|
22
39483 New Genuine Part |
39483 |
US $10.58 |
||
|
23
|
23
69026 Screw |
69026 |
US $1.62 |
||
|
24
|
24
20099 Spring, compression - front cover release button |
20099 |
US $4.75 |
||
|
25
|
25
35045 Nut |
35045 |
US $3.01 |
||
| replacement | |||||
|
25
|
25
826709109 Nut, stainless steel |
826709109 |
US $3.71 |
||
|
26
|
26
14638 New Genuine Part |
14638 |
US $1.28 |
||
|
27
|
27
14634
New Genuine Part
|
14634 |
— | ||
|
28
|
28
932481 Bushing |
932481 |
US $16.54 |
||
|
29
|
29
8142391
New Genuine Part
|
8142391 |
— | ||
| replacement | |||||
|
29
|
29
8142392
New Genuine Part
|
8142392 |
— | ||
|
30
|
30
26856 Bushing, nylon-indicator gear |
26856 |
US $4.90 |
||
|
31
|
31
35045 Nut |
35045 |
US $3.01 |
||
| replacement | |||||
|
31
|
31
826709109 Nut, stainless steel |
826709109 |
US $3.71 |
||
|
32
|
32
814283A2 New Genuine Part |
814283A2 |
US $288.34 |
||
|
33
|
33
98889 New Genuine Part |
98889 |
US $3.93 |
||
|
34
|
34
42975 Drive screw |
42975 |
US $2.22 |
||
|
35
|
35
39519 New Genuine Part |
39519 |
US $4.64 |
||
|
36
|
36
52100 New Genuine Part |
52100 |
US $8.46 |
||
|
37
|
37
38279 New Genuine Part |
38279 |
US $6.61 |
||
| replacement | |||||
|
37
|
37
8M0036768 Latch |
8M0036768 |
US $6.61 |
||
|
38
|
38
35462 Washer, shift cable stud |
35462 |
US $1.62 |
||
|
39
|
39
35045 Nut |
35045 |
US $3.01 |
||
| replacement | |||||
|
39
|
39
826709109 Nut, stainless steel |
826709109 |
US $3.71 |
||
|
40
|
40
53167 Screw |
53167 |
US $1.04 |
||
| replacement | |||||
|
40
|
40
53167T Screw .312-18X .88 |
53167T |
US $1.75 |
||
|
41
|
41
814284 New Genuine Part |
814284 |
US $16.58 |
||
|
42
|
42
20099 Spring, compression - front cover release button |
20099 |
US $4.75 |
||
|
43
|
43
67073A1 New Genuine Part |
67073A1 |
US $44.34 |
||
|
44
|
44
79932A11 New Genuine Part(LONG) USE WITH REF #46 WITH TAB, SEE BUBBLE A |
79932A11 |
US $269.78 |
||
| replacement | |||||
|
44
|
44
79932A16 New Genuine Part(LONG) USE WITH REF #46 WITH TAB, SEE BUBBLE A |
79932A16 |
US $269.78 |
||
|
44
|
44
79932A12 New Genuine Part(X-LONG) USE WITH REF #46 WITH TAB, SEE BUBBLE A |
79932A12 |
US $277.66 |
||
| replacement | |||||
|
44
|
44
79932A17 Shaft-shift-xlong(X-LONG) USE WITH REF #46 WITH TAB, SEE BUBBLE A |
79932A17 |
US $277.66 |
||
|
44
|
44
79932A16 New Genuine Part(LONG) USE WITH REF #46 WITHOUT TAB; SEE BUBBLE B |
79932A16 |
US $269.78 |
||
|
44
|
44
79932A17 Shaft-shift-xlong(X-LONG) USE WITH REF #46 WITHOUT TAB; SEE BUBBLE B |
79932A17 |
US $277.66 |
||
|
45
|
45
NSS
Not Sold Separate O-Ring
USE WITH REF #46 WITH TAB, SEE BUBBLE A |
NSS |
— | ||
|
46
|
46
26856 Bushing, nylon-indicator gearUSE WITH REF #44 WITHOUT TAB; SEE BUBBLE B |
26856 |
US $4.90 |
||
|
46
|
46
26600
Bushing, nylon-shift shaft to link
USE WITH REF #44 WITH TAB, SEE BUBBLE A |
26600 |
— | ||
|
47
|
47
29720 Wave washer, throttle link screw |
29720 |
US $1.20 |
||
|
48
|
48
35462 Washer, shift cable stud |
35462 |
US $1.62 |
||
|
49
|
49
35045 Nut |
35045 |
US $3.01 |
||
| replacement | |||||
|
49
|
49
826709109 Nut, stainless steel |
826709109 |
US $3.71 |
||
|
50
|
50
814281A1
Idle Stabilizing Shift Kit
150/175 |
814281A1 |
— | ||
|
51
|
51
77478 Screw150/175 |
77478 |
US $2.43 |
||
|
52
|
52
27882 Washer150/175 |
27882 |
US $1.20 |
||
|
53
|
53
17461A3 New Genuine Part150/175 |
17461A3 |
US $23.33 |
||
