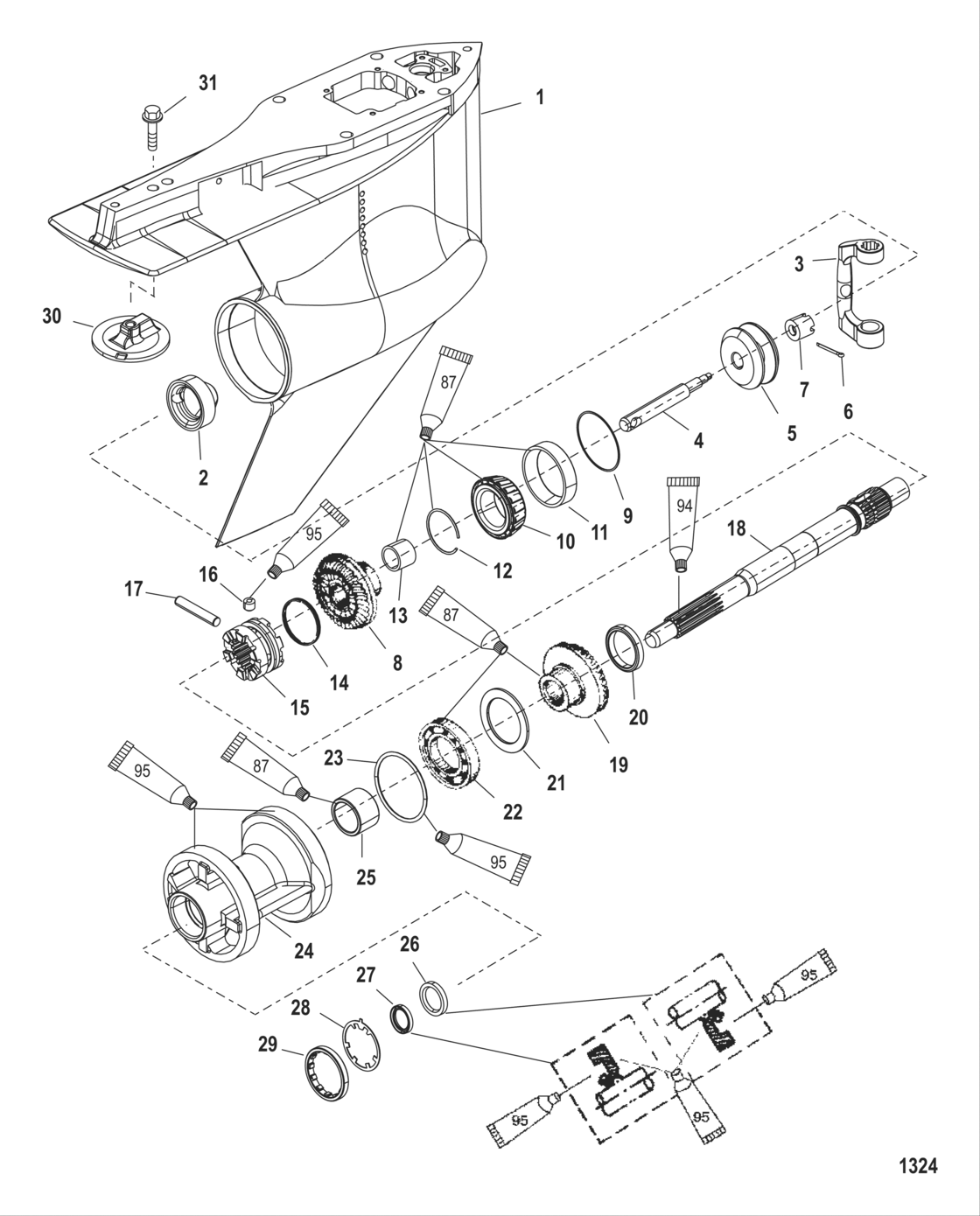

Gear Housing Propeller Shaft - Standard Rotation Diagram Mercury-Mercruiser E200
- Engine Capacity
- 3.0
- Power
- 200
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Country
- USA
- Серийный номер
- 1B417702 THRU 1B504988
- Кол-в цилиндров
- 6
- Подача топлива
- EFI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
859399T18 Gear Housing Assembly Basic |
859399T18 |
US $1,972.86 |
||
|
2
|
2
859403 Plug |
859403 |
US $28.11 |
||
|
3
|
3
823903 New Genuine Part |
823903 |
US $44.56 |
||
|
4
|
4
19755T7 New Genuine Part |
19755T7 |
US $48.22 |
||
|
5
|
5
NSS
Not Sold Separate O-Ring
|
NSS |
— | ||
|
6
|
6
469501 Cotter pin, clutch actuating shaft |
469501 |
US $3.82 |
||
|
7
|
7
NSS
Not Sold Separate O-Ring
|
NSS |
— | ||
|
8
|
8
859321A3 Gear set, forward/pinion |
859321A3 |
US $635.55 |
||
|
9
|
9
44491A1 Shim set |
44491A1 |
US $88.06 |
||
|
10
|
10
30894A1 Bearing set, cup and cone |
30894A1 |
US $79.10 |
||
|
11
|
11
NSS
Not Sold Separate O-Ring
|
NSS |
— | ||
|
12
|
12
856823 Ring, retaining |
856823 |
US $11.27 |
||
|
13
|
13
30895T Bearing Needle |
30895T |
US $27.08 |
||
|
14
|
14
30893 Spring, retainer-cross pin |
30893 |
US $3.15 |
||
|
15
|
15
859340T Clutch |
859340T |
US $308.11 |
||
|
16
|
16
828356 Pin, detent |
828356 |
US $8.69 |
||
|
17
|
17
30632 Pin, cross |
30632 |
US $3.82 |
||
| replacement | |||||
|
17
|
17
8M0100263 PIN @3 |
8M0100263 |
US $3.82 |
||
|
18
|
18
824110 Propeller Shaft |
824110 |
US $785.44 |
||
| replacement | |||||
|
18
|
18
8M0140440 PROPSHAFT RH |
8M0140440 |
US $785.44 |
||
|
19
|
19
859322A1 Gear, reverse |
859322A1 |
US $510.90 |
||
|
20
|
20
824108 Spacer, thrust |
824108 |
US $4.79 |
||
|
21
|
21
681001 RING-THRUST |
681001 |
US $20.52 |
||
|
22
|
22
88957T Bearing Ball |
88957T |
US $84.32 |
||
|
23
|
23
896524 O-ring |
896524 |
US $1.92 |
||
|
24
|
24
818763T11 New Genuine Part |
818763T11 |
US $277.66 |
||
|
25
|
25
30956T Bearing Needle |
30956T |
US $25.38 |
||
|
26
|
26
14077 Seal, oil ( inside ) |
14077 |
US $27.18 |
||
|
27
|
27
76868 Seal (outside ) |
76868 |
US $112.30 |
||
| replacement | |||||
|
27
|
27
8M0204670 SEAL |
8M0204670 |
US $20.96 |
||
|
28
|
28
18323 Tab washer |
18323 |
US $25.97 |
||
|
29
|
29
79448
New Genuine Part
|
79448 |
— | ||
| replacement | |||||
|
29
|
29
8M2011027
Retainer
|
8M2011027 |
— | ||
|
30
|
30
76214Q5 Anode kit 2 |
76214Q5 |
US $41.63 |
||
|
31
|
31
806327 Screw |
806327 |
US $7.12 |
||
|
NI
|
NI
859399T13 Gear housing assembly, complete(Long) |
859399T13 |
US $3,737.14 |
||
|
NI
|
NI
859399T14 Gear Housing Assembly Complete (4.75 Inch/120.65 Mm Torpedo Diameter)(X-Long) |
859399T14 |
US $3,737.14 |
||
|
NI
|
NI
859399T15 Gear Housing Assembly Complete (4.75 Inch/120.65 Mm Torpedo Diameter)(XX-Long) |
859399T15 |
US $3,737.14 |
||
|
NI
|
NI
816575A4 Seal Kit Gear Housing |
816575A4 |
US $58.94 |
||
