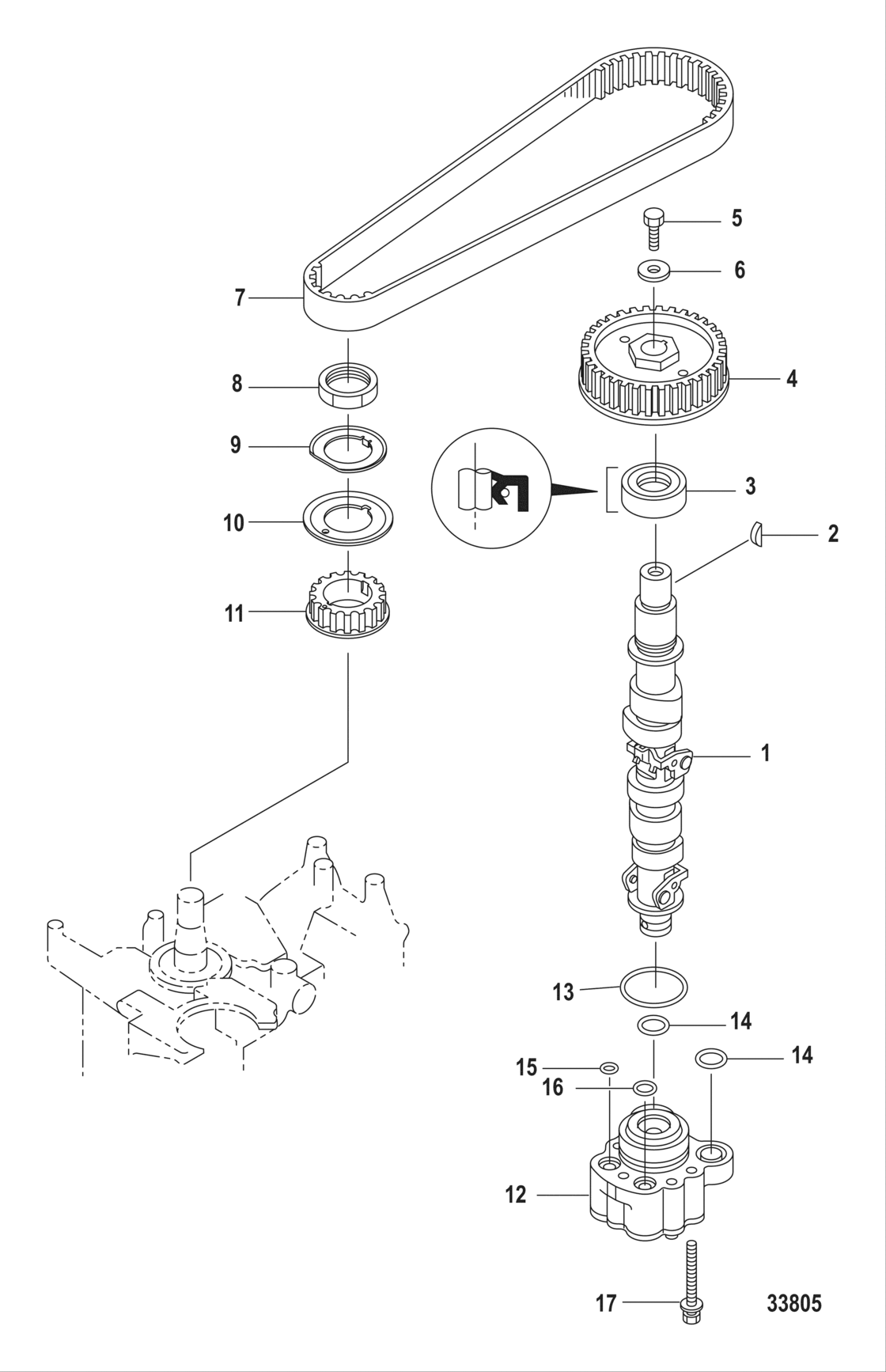

Camshaft And Oil Pump Diagram Mercury-Mercruiser F10
- Power
- 10
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Серийный номер
- 0R575531 THRU 0R833819
- Кол-в цилиндров
- 2
- Подача топлива
- Карбюратор
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
|
895274T08
Short Block
|
895274T08 |
— | ||
| replacement | |||||
|
|
8M0099416
SHORT BLOCK BOXED
|
8M0099416 |
— | ||
|
1
|
1
898101965 Camshaft assembly |
898101965 |
US $315.89 |
||
|
2
|
2
95229 Key, crankshaft |
95229 |
US $6.80 |
||
|
3
|
3
825455001 Seal, oil |
825455001 |
US $14.88 |
||
|
4
|
4
834973001 Gear, driven |
834973001 |
US $124.61 |
||
|
5
|
5
803858001 Bolt |
803858001 |
US $3.94 |
||
|
6
|
6
895118 Washer |
895118 |
US $3.94 |
||
|
7
|
7
895120002 Belt, timing |
895120002 |
US $25.82 |
||
|
8
|
8
855679004 Nut |
855679004 |
US $10.54 |
||
|
9
|
9
823032004 Lockwasher |
823032004 |
US $4.75 |
||
|
10
|
10
895119003 Guide, belt |
895119003 |
US $5.92 |
||
|
11
|
11
834955T04 Pulley Drive Timing Pulley |
834955T04 |
US $90.45 |
||
|
12
|
12
834967005 New Genuine Part |
834967005 |
US $134.90 |
||
|
13
|
13
857096001 O-ring |
857096001 |
US $12.86 |
||
|
14
|
14
857093001 O-ring |
857093001 |
US $6.72 |
||
|
15
|
15
857094002 O-ring |
857094002 |
US $4.64 |
||
|
16
|
16
857094001 O-ring |
857094001 |
US $5.79 |
||
|
17
|
17
850879001 Bolt |
850879001 |
US $3.14 |
||
|
NI
|
NI
803663A08 Gasket Set Powerhead |
803663A08 |
US $270 |
||
