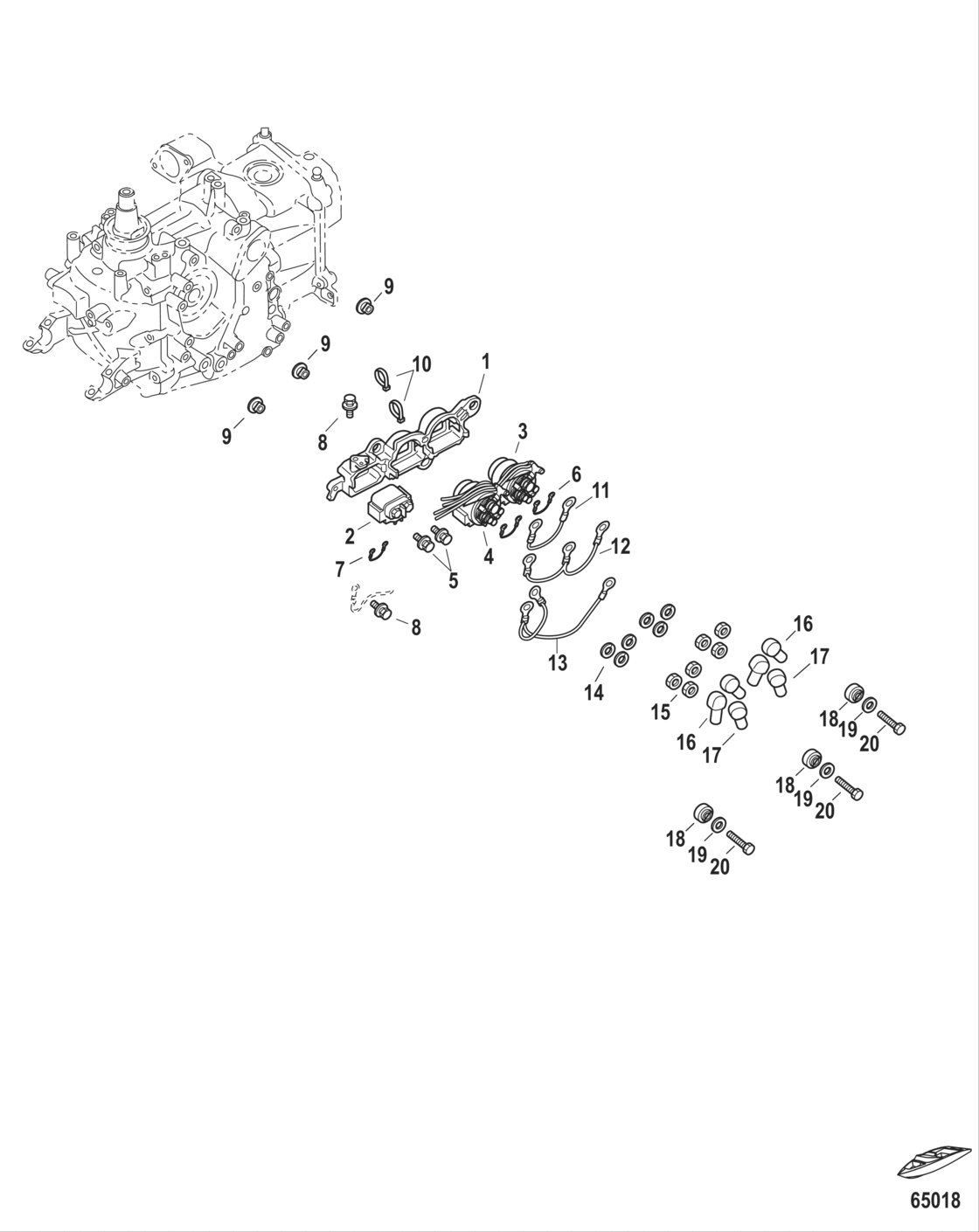

Electrical Bracket And Cover Diagram Mercury-Mercruiser F10
- Power
- 10
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Серийный номер
- 0R833820 & Up
- Кол-в цилиндров
- 2
- Подача топлива
- EFI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
8M0137329 Bracket |
8M0137329 |
US $32.80 |
||
|
2
|
2
853809001 Solenoid, starter |
853809001 |
US $123.20 |
||
|
3
|
3
8518391 Solenoid switch |
8518391 |
US $111.10 |
||
|
4
|
4
851839 Solenoid switch |
851839 |
US $88 |
||
|
5
|
5
823042059 Bolt |
823042059 |
US $6.24 |
||
|
6
|
6
8M0140106 Diode Supression |
8M0140106 |
US $30.67 |
||
|
7
|
7
8M0140103 Diode Supression |
8M0140103 |
US $24.93 |
||
|
8
|
8
8230427 Bolt |
8230427 |
US $3.71 |
||
|
9
|
9
8M0137298 Collar |
8M0137298 |
US $3.55 |
||
|
10
|
10
56762 New Genuine Part |
56762 |
US $0.35 |
||
|
11
|
11
853740 Ground wire |
853740 |
US $7.99 |
||
|
12
|
12
8M0134473 Relay Wire Assembly |
8M0134473 |
US $9.60 |
||
|
13
|
13
8M0134474 Relay Wire Assembly |
8M0134474 |
US $10.67 |
||
|
14
|
14
400256 Lockwasher |
400256 |
US $1.62 |
||
|
15
|
15
400212 Nut, stainless steel |
400212 |
US $2.43 |
||
|
16
|
16
853816004 Boot, red |
853816004 |
US $4.99 |
||
|
17
|
17
8538161 Cap, starter terminal |
8538161 |
US $5.10 |
||
|
18
|
18
8M0135593 Mount Rubber |
8M0135593 |
US $2.67 |
||
|
19
|
19
953921 Washer, stainless steel |
953921 |
US $6.34 |
||
|
20
|
20
4000330 Screw, adaptor |
4000330 |
US $4.54 |
||
|
NI
|
NI
8M0137846 Electric Start Kit |
8M0137846 |
US $2,029.92 |
