Electrical Diagram Mercury-Mercruiser F115

Power
115
Stroke (2-stroke or 4-stroke)
4 stroke
Country
USA
Серийный номер
2B225488 & Up
Серия
Pro XS
Кол-в цилиндров
4
Подача топлива
EFI

Difficulties in parts search?

Parts list

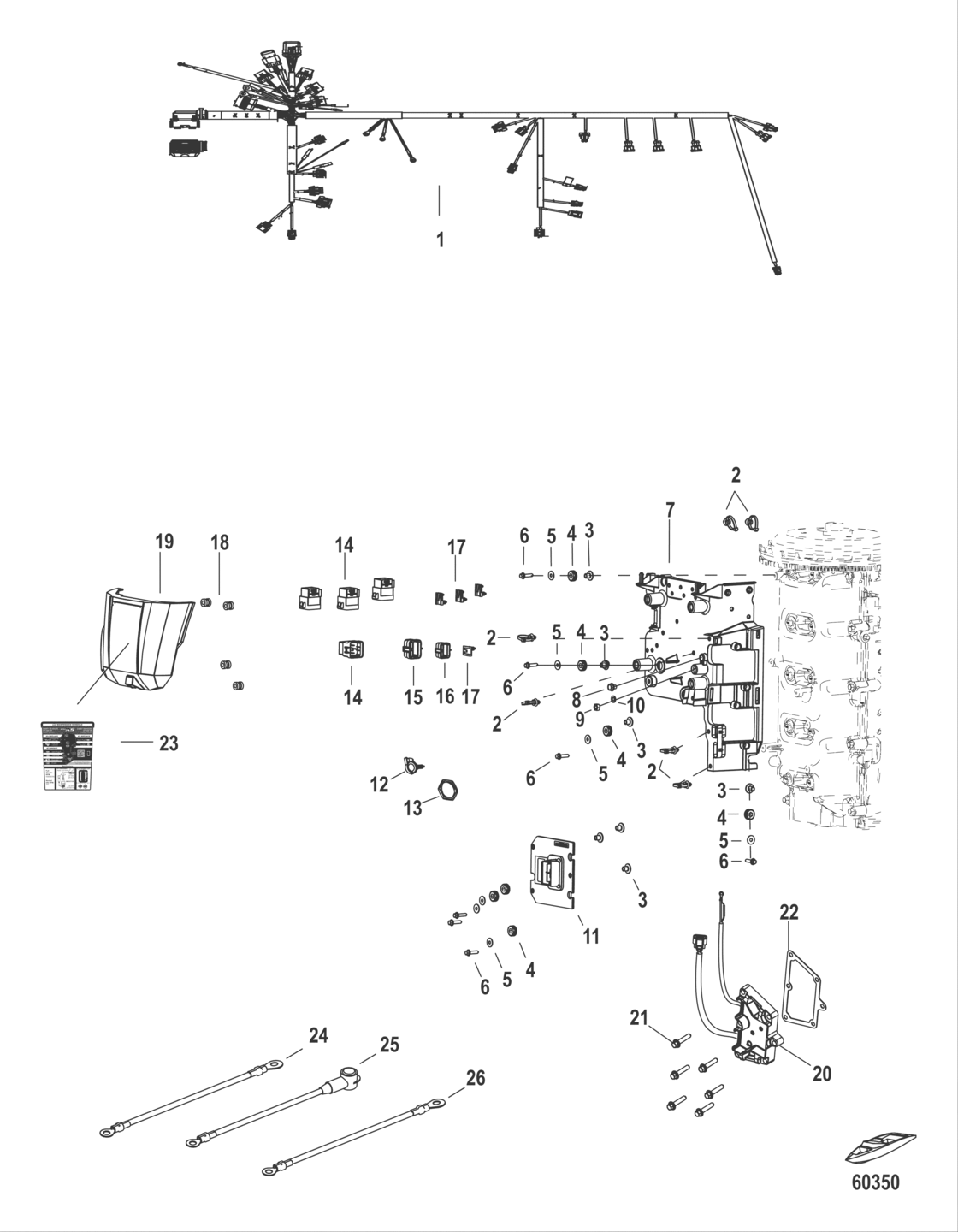

Electrical

Difficulties in parts search?

Electrical
Description OEM Part # Price
1
1

8M0088060

Wiring Harness - Main

8M0088060

US $613.44

2
2

899145

Clip, tie strap

899145

US $3.01

3
3

856954

Bushing

856954

US $6.03

4
4

834985

Grommet

834985

US $4.08

5
5

65567

Washer, stainless steel

65567

US $2.24

6
6

8M0103807

Screw (M6 X 25 Mm) Stainless Steel

8M0103807

US $2.45

7
7

8M0092349

Plate - Electrical

8M0092349

US $74.67

8
8

40011145

Screw, stainless steel

40011145

US $2.78

9
9

400213

Nut, stainless steel

400213

US $2.43

10
10

26993

Lockwasher

26993

US $1.62

11
11

8M0114284

Ecm 115Hp Pro Xs 4S

8M0114284

US $1,273.62

12
12

858954

Clip

858954

US $3.47

13
13

889664

Nut, black nylon

889664

US $5.68

14
14

882751

Relay-trim

882751

US $26.11

15
15

8M0047885

Fuse Cover With Spares

8M0047885

US $4.06

16
16

858754

Cover-fuse

858754

US $8.46

17
17

8M6001733

Clip - Relay, Double Nail

8M6001733

US $0.78

18
18

821555001

Grommet

821555001

US $4.99

19
19

8M0097173

Cover Electrical Plate

8M0097173

US $34.90

20
20

8M0088351

Voltage Regulator

8M0088351

US $277.30

replacement
20
20

8M0133642

VOLTAGE REGULATOR

8M0133642

US $277.30

21
21

8M0103808

Screw (M6 X 30 Mm) Stainless Steel

8M0103808

US $2.43

22
22

8M0072790

Gasket Voltage Regulator

8M0072790

US $4.11

23
23

8M0107394

Decal Maintenance Schedule

8M0107394

US $4.61

24
24

8M2100378

Harness Starter

8M2100378

US $11.78

25
25

88439A35

Cable Assembly Battery - Positive

88439A35

US $53.55

26
26

88439A26

Cable Assembly Battery - Negative

88439A26

US $107.90

Electrical Diagram Mercury-Mercruiser F115 18237618-945777
