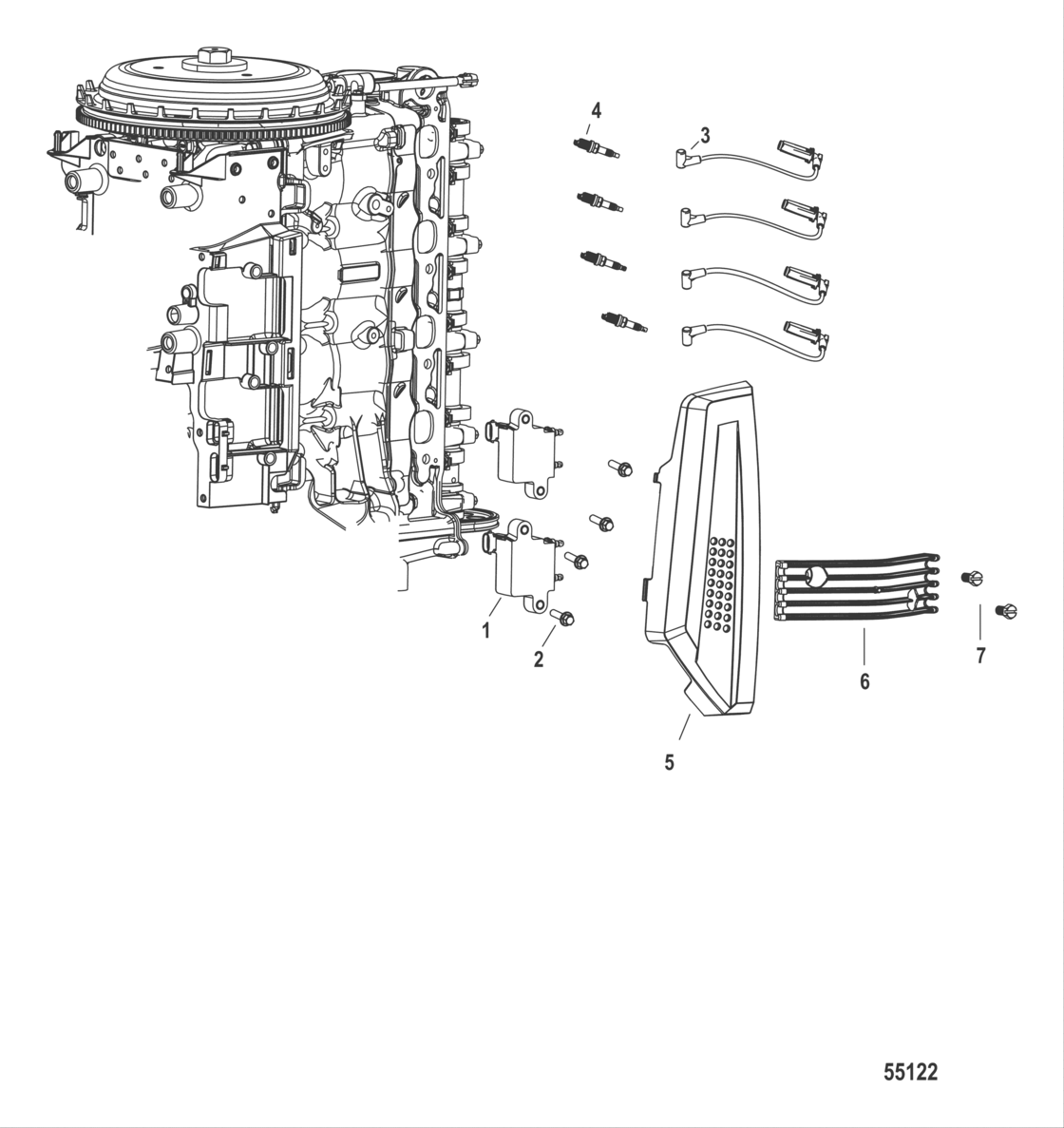

Ignition Diagram Mercury-Mercruiser F115
- Power
- 115
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Country
- USA
- Серийный номер
- 2B225488 & Up
- Серия
- Pro XS
- Кол-в цилиндров
- 4
- Подача топлива
- EFI
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
8M0044991 Coil Ignition Dual Output |
8M0044991 |
US $135.54 |
||
|
2
|
2
8M0103807 Screw (M6 X 25 Mm) Stainless Steel |
8M0103807 |
US $2.45 |
||
|
3
|
3
8M0088014 Spark Plug Wire Set |
8M0088014 |
US $99.94 |
||
|
4
|
4
8M0057936 Spark Plug Ngk Zfr5F |
8M0057936 |
US $9.40 |
||
| replacement | |||||
|
4
|
4
8M0204728 Spark Plug |
8M0204728 |
US $10.18 |
||
|
5
|
5
8M0077655 Cover, Coil |
8M0077655 |
US $14.22 |
||
|
6
|
6
8M0060350 Tray High Tension Lead |
8M0060350 |
US $4.45 |
||
|
7
|
7
8M0037204 Screw Nylon, Push-In (.25-20 X .50) |
8M0037204 |
US $4.99 |
||
