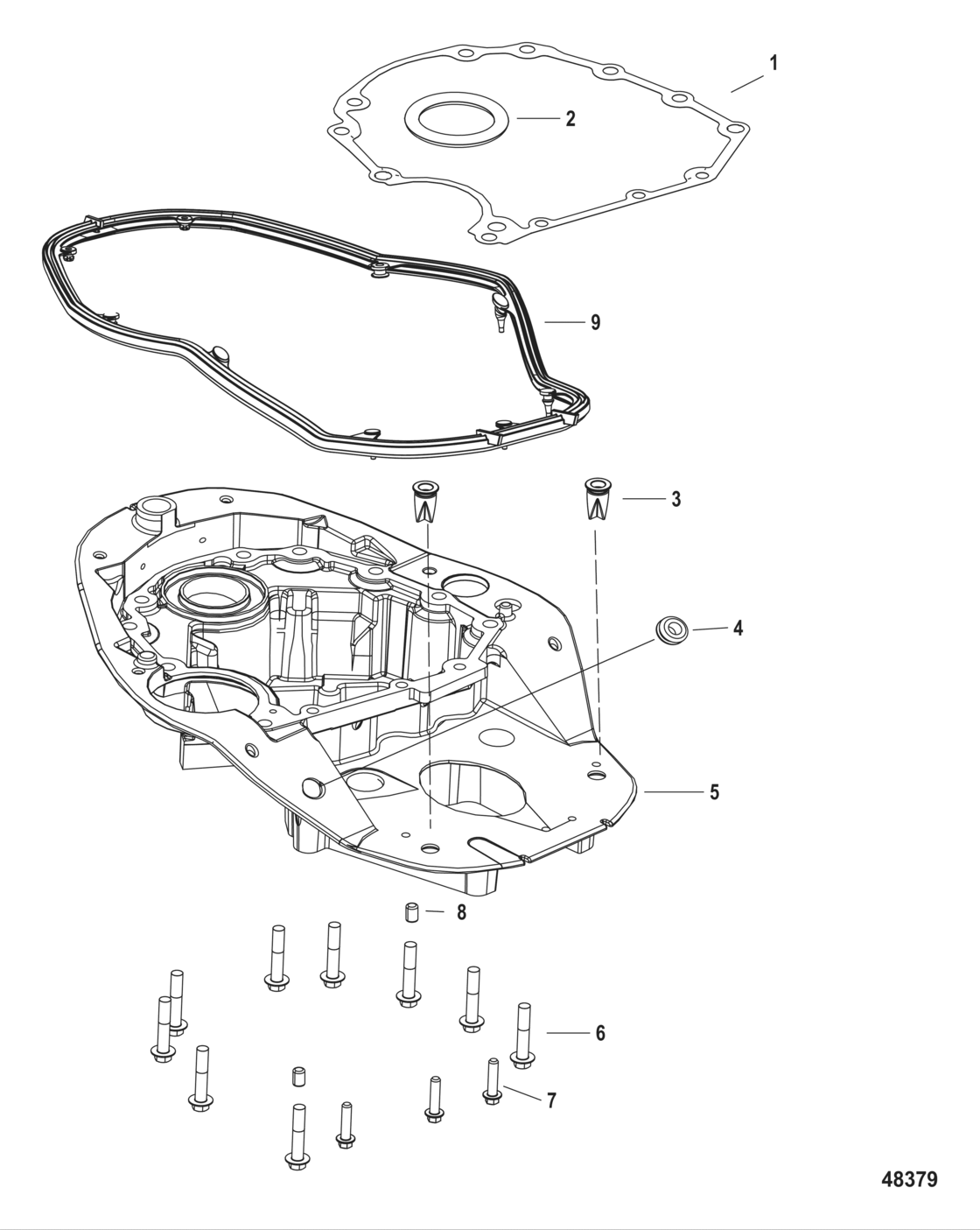

Adapter Plate Diagram Mercury-Mercruiser F135
- Power
- 135
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Серийный номер
- 2B131942 & Up
- Кол-в цилиндров
- 4
- Подача топлива
- EFI
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
8M0057703 Gasket Adapter Plate/block |
8M0057703 |
US $54.28 |
||
|
2
|
2
8M0056667 O-Ring (M10.85 X 58.9) |
8M0056667 |
US $46.58 |
||
| replacement | |||||
|
2
|
2
8M0065017 O-RING |
8M0065017 |
US $33.01 |
||
|
3
|
3
8M0038275
Drain Cowl
|
8M0038275 |
— | ||
|
4
|
4
840404 Grommet |
840404 |
US $3.94 |
||
| replacement | |||||
|
4
|
4
8M0058484 Grommet |
8M0058484 |
US $3.94 |
||
|
5
|
5
8M0057701 Adapter Plate |
8M0057701 |
US $641.60 |
||
|
6
|
6
8M0047948 Screw (M10 X 1.5 X 60) |
8M0047948 |
US $7.89 |
||
| replacement | |||||
|
6
|
6
8M0069690 Screw (M10 X 1.5 X 60) |
8M0069690 |
US $7.89 |
||
|
7
|
7
88552640 Screw |
88552640 |
US $3.60 |
||
| replacement | |||||
|
7
|
7
8M0103815 Screw |
8M0103815 |
US $3.60 |
||
|
8
|
8
821327 Pin, dowel |
821327 |
US $3.14 |
||
|
9
|
9
8M0044025 Seal Adapter Plate |
8M0044025 |
US $73.32 |
||
