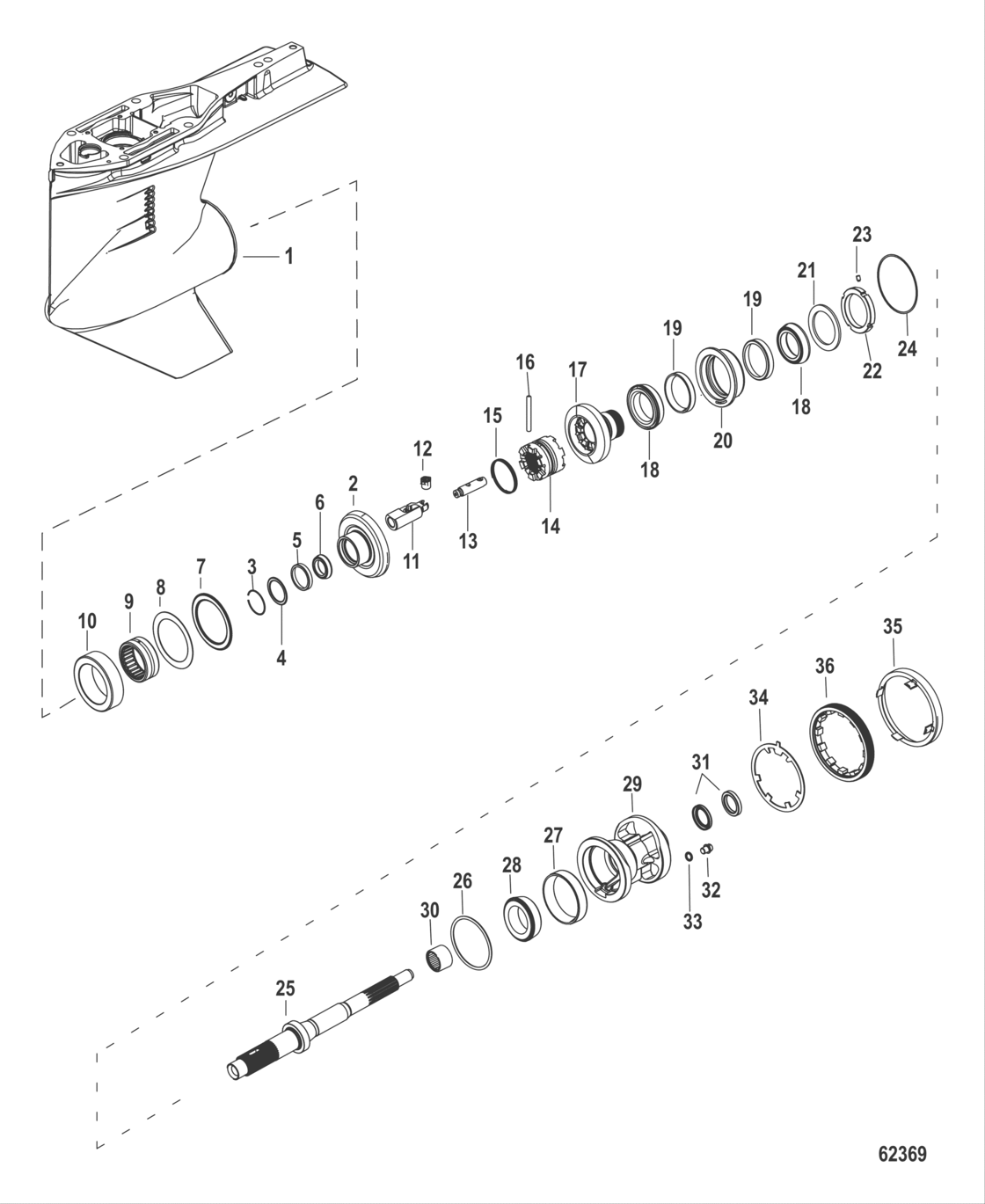

Gear Housing, Propeller Shaft, Counter 2B205522 And Up Diagram Mercury-Mercruiser F135
- Power
- 135
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Серийный номер
- 2B131942 & Up
- Кол-в цилиндров
- 4
- Подача топлива
- EFI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
8M0057747 Gear Housing Basic |
8M0057747 |
US $2,212.58 |
||
|
2
|
2
8M0107834 Gear Kit Reverse 25T |
8M0107834 |
US $779.15 |
||
|
3
|
3
8M0094502 Ring Internal Retaining |
8M0094502 |
US $1.78 |
||
|
4
|
4
8M0064432 Washer Thrust |
8M0064432 |
US $63.78 |
||
|
5
|
5
8M0094499 Bearing Set Tapered Roller |
8M0094499 |
US $28.22 |
||
|
6
|
6
NSS
Not Sold Separate O-Ring
|
NSS |
— | ||
|
7
|
7
815480 Bearing, thrust |
815480 |
US $33.22 |
||
|
8
|
8
815481 Thrust washer |
815481 |
US $24.11 |
||
|
9
|
9
8M0094497 Bearing Needle Roller |
8M0094497 |
US $95.89 |
||
|
10
|
10
8M0064369 Bearing Adapter Reverse Gear |
8M0064369 |
US $217.55 |
||
|
11
|
11
8M0031018 Follower Cam (Lh) |
8M0031018 |
US $83.01 |
||
|
12
|
12
8M0077490 Cam Shift Bellcrank |
8M0077490 |
US $9.66 |
||
|
13
|
13
8M0057749 Rod Clutch Actuator |
8M0057749 |
US $28 |
||
|
14
|
14
8M0094479 Clutch Sliding, 6 Jaw |
8M0094479 |
US $175.55 |
||
|
15
|
15
8M0047945 Spring Retaining |
8M0047945 |
US $1.85 |
||
|
16
|
16
8M0045759 Pin Cross |
8M0045759 |
US $6.50 |
||
|
17
|
17
8M0107833 Gear Set Forward/pinion (25T Lh) |
8M0107833 |
US $547.44 |
||
|
18
|
18
8M0094485 Tapered Roller Bearing Set |
8M0094485 |
US $57.66 |
||
|
19
|
19
NSS
Not Sold Separate O-Ring
|
NSS |
— | ||
|
20
|
20
8M0094486 Adapter Bearing, Forward Gear |
8M0094486 |
US $564.22 |
||
|
21
|
21
8M0064177 Washer Thrust |
8M0064177 |
US $12.34 |
||
|
22
|
22
8M0094488
Lock Nut
|
8M0094488 |
— | ||
| replacement | |||||
|
22
|
22
8M0064178 LOCK NUT |
8M0064178 |
US $26.45 |
||
|
23
|
23
8M0066130 Screw- Half Dog Point Set |
8M0066130 |
US $6.22 |
||
|
24
|
24
8M0094490 Shim Set |
8M0094490 |
US $94.22 |
||
|
25
|
25
8M0088079 Shaft - Propeller Lh |
8M0088079 |
US $707.55 |
||
|
26
|
26
8M0030845 O-Ring 3.975X.210 |
8M0030845 |
US $1.62 |
||
|
27
|
27
884330T01 Bearing assembly, tappered |
884330T01 |
US $47.04 |
||
|
28
|
28
NSS
Not Sold Separate O-Ring
|
NSS |
— | ||
|
29
|
29
8M0094495 Bearing Carrier C/r |
8M0094495 |
US $241.89 |
||
|
30
|
30
8M0064306 Spacer |
8M0064306 |
US $18.78 |
||
|
31
|
31
888483 Seal, oil |
888483 |
US $26.04 |
||
| replacement | |||||
|
31
|
31
8M0204700 Seal, oil |
8M0204700 |
US $30.48 |
||
|
32
|
32
8M0071653 Screw Special |
8M0071653 |
US $8.28 |
||
|
33
|
33
830749 Seal |
830749 |
US $5.93 |
||
| replacement | |||||
|
33
|
33
8M0204693 Seal |
8M0204693 |
US $5.93 |
||
|
34
|
34
8M0030784 Washer Keyed |
8M0030784 |
US $7.65 |
||
|
35
|
35
8M0054695 Sleeve Propeller Bore |
8M0054695 |
US $5.32 |
||
| replacement | |||||
|
35
|
35
8M0187255 Sleeve Propeller Bore |
8M0187255 |
US $5.32 |
||
|
36
|
36
8M0030785 Retainer Bearing Carrier |
8M0030785 |
US $52 |
||
| replacement | |||||
|
36
|
36
8M0141332 RETAINER BEARING |
8M0141332 |
US $67.66 |
||
|
NI
|
NI
8M0107156 Gear Housing Assembly Complete, Cxl |
8M0107156 |
US $4,415.18 |
||
