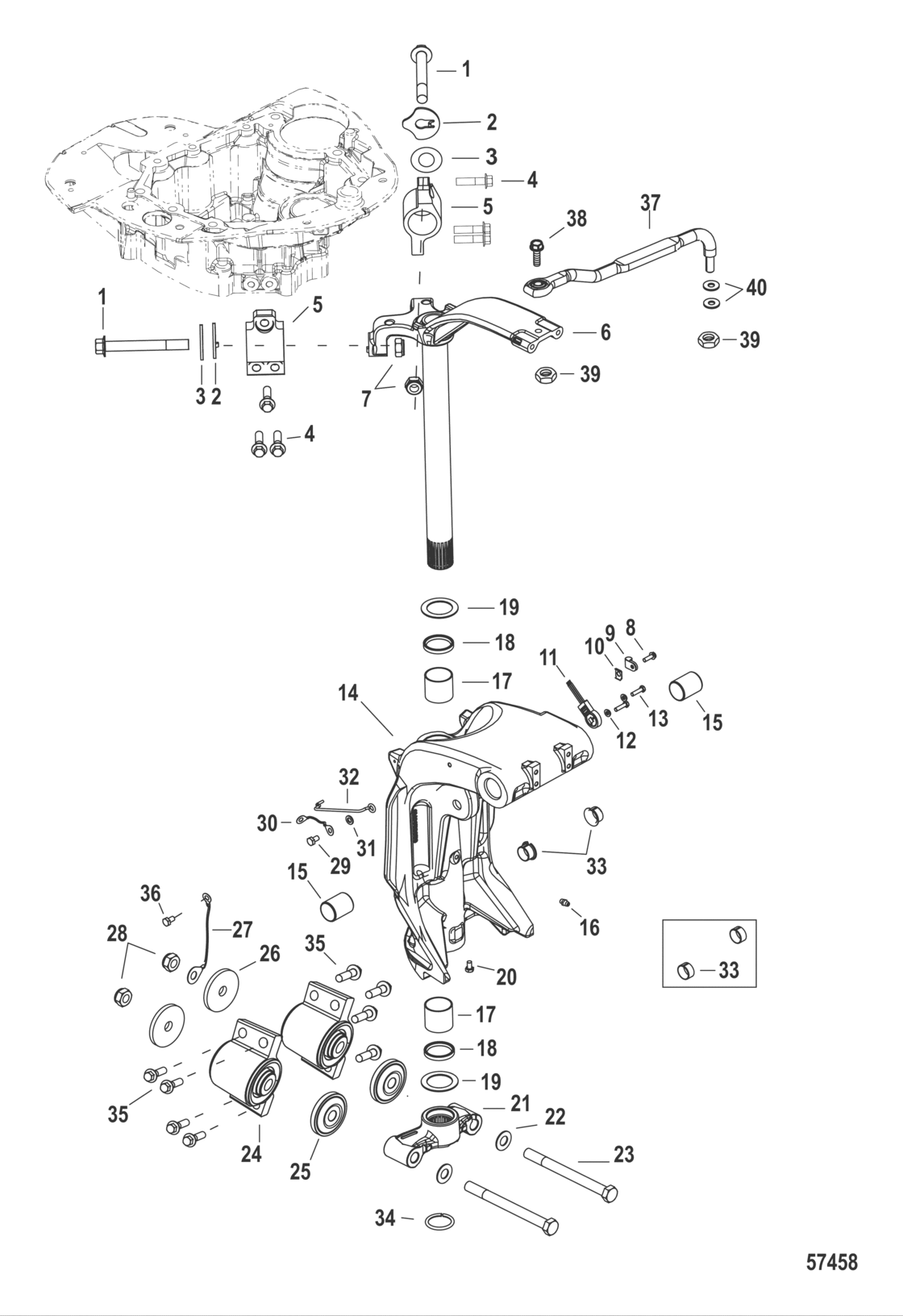

Swivel Bracket And Swivel Pin Seapro Diagram Mercury-Mercruiser F135
- Power
- 135
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Серийный номер
- 2B131942 & Up
- Кол-в цилиндров
- 4
- Подача топлива
- EFI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
8M0065195 Screw (M14X2X115) Hex Flange |
8M0065195 |
US $22.50 |
||
|
2
|
2
8M0052629 Washer Upper Mount Snubber |
8M0052629 |
US $9.28 |
||
|
3
|
3
8M0096222 Washer Upper MountSeaPro |
8M0096222 |
US $16.35 |
||
|
4
|
4
8M0047986 Screw (M10X1.5X40) Hex Flange |
8M0047986 |
US $7.66 |
||
| replacement | |||||
|
4
|
4
8M0069689 Screw (M10X1.5X40) Hex Flange |
8M0069689 |
US $7.66 |
||
|
5
|
5
8M0096244
Mounts - Upper
SeaPro |
8M0096244 |
— | ||
|
6
|
6
8M0057743 Steering Tube Assembly |
8M0057743 |
US $733.22 |
||
| replacement | |||||
|
6
|
6
8M0133457 STEERING TUBE ASY |
8M0133457 |
US $733.22 |
||
|
7
|
7
896602 Nut |
896602 |
US $4.86 |
||
|
8
|
8
847401 Screw |
847401 |
US $1.28 |
||
|
9
|
9
24836 Clip |
24836 |
US $3.71 |
||
|
10
|
10
8M0056607 C-Washer |
8M0056607 |
US $0.82 |
||
| replacement | |||||
|
10
|
10
8M0084612 WASHER |
8M0084612 |
US $0.82 |
||
|
11
|
11
8M0052523 Trim Sensor Assembly |
8M0052523 |
US $107.33 |
||
| replacement | |||||
|
11
|
11
8M0076463 TRIM SENSOR ASSY |
8M0076463 |
from US $107.33 |
||
|
12
|
12
89302 Washer |
89302 |
US $1.62 |
||
|
13
|
13
852368 Screw |
852368 |
US $1.50 |
||
|
14
|
14
8M0057751 Swivel Bracket Assembly |
8M0057751 |
US $2,186.98 |
||
|
15
|
15
8M0059091 Bearing Tilt Pin 26.38Idx42Lg |
8M0059091 |
US $1.86 |
||
|
16
|
16
74036 Fitting, grease, gimbal housing |
74036 |
US $4.11 |
||
|
17
|
17
8M0034861 Bushing Swivel Tube Pivot |
8M0034861 |
US $3.71 |
||
| replacement | |||||
|
17
|
17
8M0141339 BUSHING |
8M0141339 |
US $3.71 |
||
|
18
|
18
8M0034870 Seal Swivel Tube |
8M0034870 |
US $23.01 |
||
|
19
|
19
816432 Thrust washer |
816432 |
US $7.12 |
||
|
20
|
20
4000325 Screw |
4000325 |
US $3.25 |
||
|
21
|
21
8M0057726 Yoke Bottom |
8M0057726 |
US $172.56 |
||
|
22
|
22
825190 Washer |
825190 |
US $3.25 |
||
|
23
|
23
8M0045787 Screw M14X2.00 X 155 Hex Flg Hd |
8M0045787 |
US $37.78 |
||
| replacement | |||||
|
23
|
23
8M0069492 Bolt (M14X2X155) Hex Flange |
8M0069492 |
US $37.78 |
||
|
24
|
24
8M0057725 Lower Mount Assembly |
8M0057725 |
US $112.11 |
||
|
25
|
25
8M0052453 Washer Lower Mount Snubber |
8M0052453 |
US $29.33 |
||
|
26
|
26
8M0045788 Washer Lower Mount Snubber 14.4Id |
8M0045788 |
US $17.10 |
||
| replacement | |||||
|
26
|
26
8M0069499 Washer |
8M0069499 |
US $17.10 |
||
|
27
|
27
8M0062747 Cable Assembly |
8M0062747 |
US $3.71 |
||
|
28
|
28
896602 Nut |
896602 |
US $4.86 |
||
|
29
|
29
4000326 Screw |
4000326 |
US $3.60 |
||
|
30
|
30
8M0050047 Cable Assembly |
8M0050047 |
US $3.25 |
||
|
31
|
31
29245 Washer, stainless steel, water pump body stud |
29245 |
US $1.28 |
||
|
32
|
32
8M0049816 Retainer Trim Lead |
8M0049816 |
US $3.25 |
||
|
33
|
33
8M0081024 Split Journal Bearing |
8M0081024 |
US $13.33 |
||
|
34
|
34
67684 Retaining ring, bottom yoke |
67684 |
US $4.57 |
||
|
35
|
35
8M0047986 Screw (M10X1.5X40) Hex Flange |
8M0047986 |
US $7.66 |
||
| replacement | |||||
|
35
|
35
8M0069689 Screw (M10X1.5X40) Hex Flange |
8M0069689 |
US $7.66 |
||
|
36
|
36
4010610 Screw, stainless steel, to collector |
4010610 |
US $1.97 |
||
|
37
|
37
92876A12 New Genuine Part |
92876A12 |
US $90.96 |
||
|
38
|
38
849838 Screw |
849838 |
US $27.08 |
||
|
39
|
39
8M0042636 Nut (.375-24) Brass |
8M0042636 |
US $1.62 |
||
|
40
|
40
37828 Washer, stainless steel |
37828 |
US $0.58 |
||
