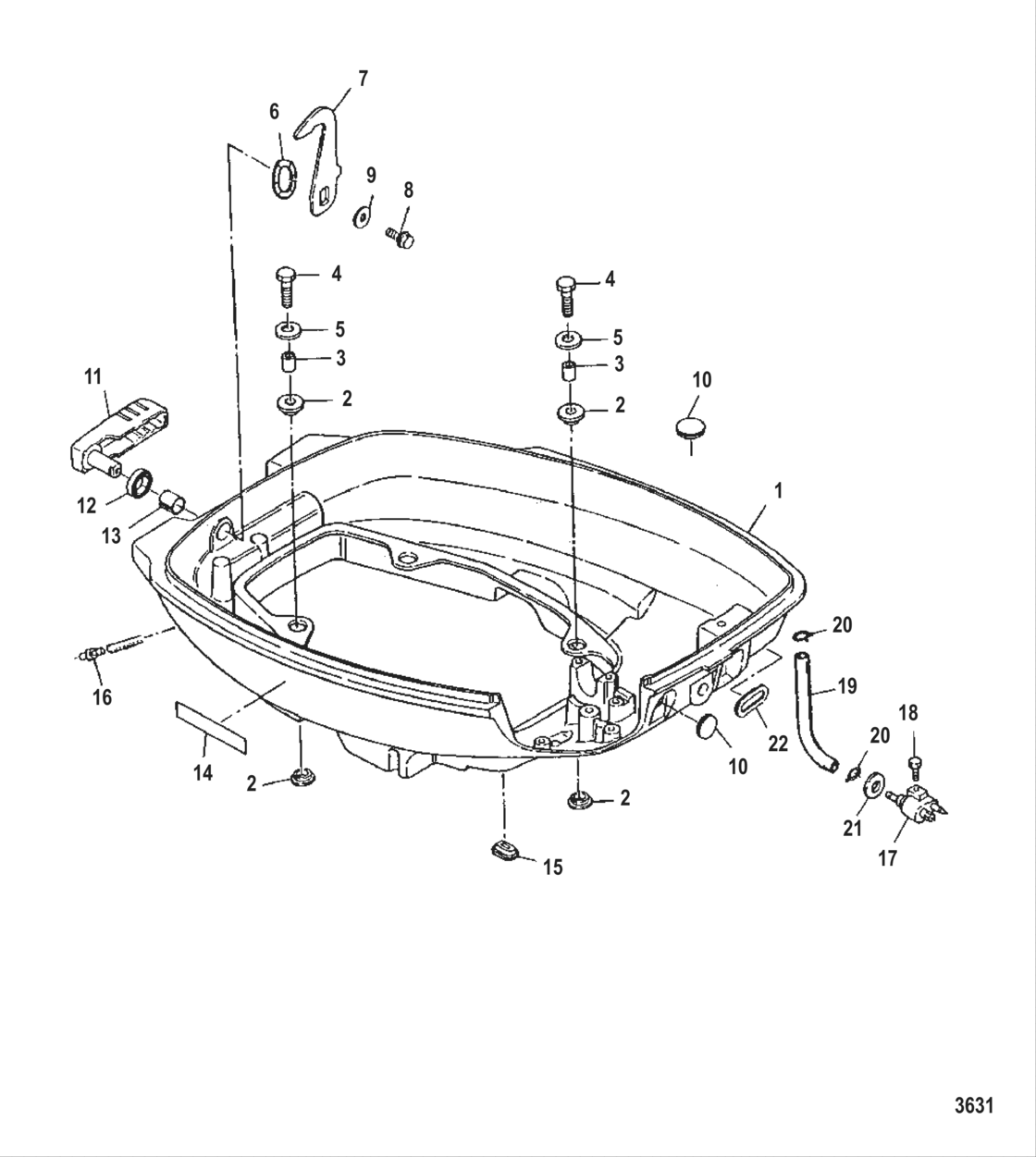

Bottom Cowl Diagram Mercury-Mercruiser F15
- Power
- 15
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Серийный номер
- 0R051685 THRU 0R123564
- Серия
- Sea-Pro
- Кол-в цилиндров
- 2
- Подача топлива
- Карбюратор
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
853778008
Bottom cowl
|
853778008 |
— | ||
|
2
|
2
8537437 Mount, rubber |
8537437 |
US $8.82 |
||
|
3
|
3
8537154 Spacer |
8537154 |
US $4.64 |
||
|
4
|
4
823042044 Bolt |
823042044 |
US $4.48 |
||
| replacement | |||||
|
4
|
4
8M0124428 Bolt |
8M0124428 |
US $4.40 |
||
|
5
|
5
161404 Washer |
161404 |
US $3.71 |
||
|
6
|
6
16221 Wave washer |
16221 |
US $3.14 |
||
|
7
|
7
16222003 Hook, cover |
16222003 |
US $16.22 |
||
|
8
|
8
162111 Bolt |
162111 |
US $7.04 |
||
| replacement | |||||
|
8
|
8
8M0088179
Bolt
|
8M0088179 |
— | ||
|
9
|
9
895118002 Washer |
895118002 |
US $4.86 |
||
| replacement | |||||
|
9
|
9
953921 Washer, stainless steel |
953921 |
US $6.34 |
||
|
10
|
10
16226 Grommet |
16226 |
US $7.07 |
||
|
11
|
11
817015003 New Genuine Part |
817015003 |
US $40.78 |
||
|
12
|
12
16219 Seal |
16219 |
US $5.57 |
||
|
13
|
13
163365 Bushing |
163365 |
US $2.21 |
||
|
14
|
14
NSS
Not Sold Separate O-Ring
|
NSS |
— | ||
|
15
|
15
851850010
Grommet
|
851850010 |
— | ||
|
16
|
16
8129603 Nipple |
8129603 |
US $3.71 |
||
| replacement | |||||
|
16
|
16
898101961 Nipple, water |
898101961 |
US $4.35 |
||
|
17
|
17
15781A5 Connector Fuel - Brass |
15781A5 |
US $39.63 |
||
|
18
|
18
4000330 Screw, adaptor |
4000330 |
US $4.54 |
||
|
19
|
19
851848014
Tubing,
|
851848014 |
— | ||
|
20
|
20
95395 Clip, stainless steel, fuel line |
95395 |
US $2.67 |
||
|
21
|
21
803513008 Grommet |
803513008 |
US $3.94 |
||
|
22
|
22
853709008 Grommet, battery cable |
853709008 |
US $5.33 |
||
