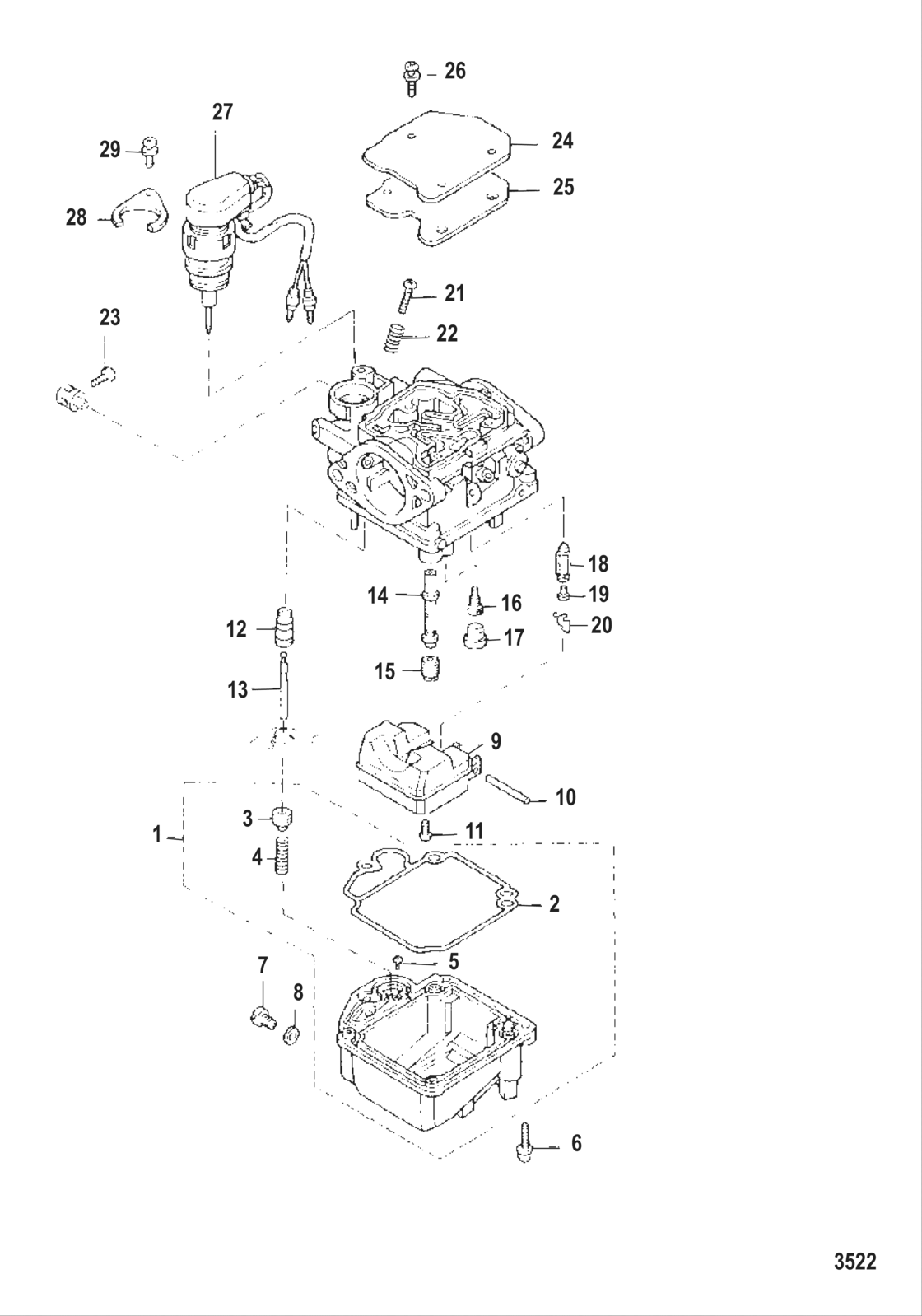

Carburetor Diagram Mercury-Mercruiser F15
- Power
- 15
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Серийный номер
- 0R051685 THRU 0R123564
- Серия
- Sea-Pro
- Кол-в цилиндров
- 2
- Подача топлива
- Карбюратор
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
802690008
Float bowl
|
802690008 |
— | ||
|
2
|
2
802699004 Gasket |
802699004 |
US $14.45 |
||
|
3
|
3
853830003 Plunger, complete |
853830003 |
US $52.22 |
||
|
4
|
4
895116001
Spring
|
895116001 |
— | ||
|
5
|
5
895136001
Screw
|
895136001 |
— | ||
|
6
|
6
162601 Screw |
162601 |
US $1.33 |
||
|
7
|
7
803509015
Screw, drain
|
803509015 |
— | ||
|
8
|
8
855567003
Gasket
|
855567003 |
— | ||
| replacement | |||||
|
8
|
8
8M0094878 GASKET |
8M0094878 |
US $1.22 |
||
|
9
|
9
16253004
Float
|
16253004 |
— | ||
|
10
|
10
16256004 Float, arm pin |
16256004 |
US $5.10 |
||
|
11
|
11
16196001
Screw
|
16196001 |
— | ||
|
12
|
12
895115001
New Genuine Part
|
895115001 |
— | ||
|
13
|
13
853746003
Rod, link
|
853746003 |
— | ||
|
14
|
14
802700006 Nozzle, main |
802700006 |
US $33.33 |
||
|
15
|
15
802701007 Jet |
802701007 |
US $14.93 |
||
|
16
|
16
803689005 Jet, pilot |
803689005 |
US $25.55 |
||
|
17
|
17
16252 New Genuine Part |
16252 |
US $6.50 |
||
|
18
|
18
809570003 Valve, float |
809570003 |
US $24.78 |
||
| replacement | |||||
|
18
|
18
898101063 New Genuine Part |
898101063 |
US $24.78 |
||
|
19
|
19
853721 Valve pin |
853721 |
US $2.78 |
||
|
20
|
20
16255 Clip |
16255 |
US $8.35 |
||
|
21
|
21
16263 Screw |
16263 |
US $7.89 |
||
|
22
|
22
16264002 Spring |
16264002 |
US $2.67 |
||
|
23
|
23
895140004 Screw |
895140004 |
US $2.11 |
||
|
24
|
24
855540003
Cover, carburetor
|
855540003 |
— | ||
|
25
|
25
855541004
Gasket
|
855541004 |
— | ||
|
26
|
26
855542
Screw
|
855542 |
— | ||
|
27
|
27
854254005 Enrichener |
854254005 |
US $413.89 |
||
|
28
|
28
854255001
Plate
|
854255001 |
— | ||
|
29
|
29
855542
Screw
|
855542 |
— | ||
|
NI
|
NI
8M0059293 Carburetor |
8M0059293 |
US $760.10 |
||
