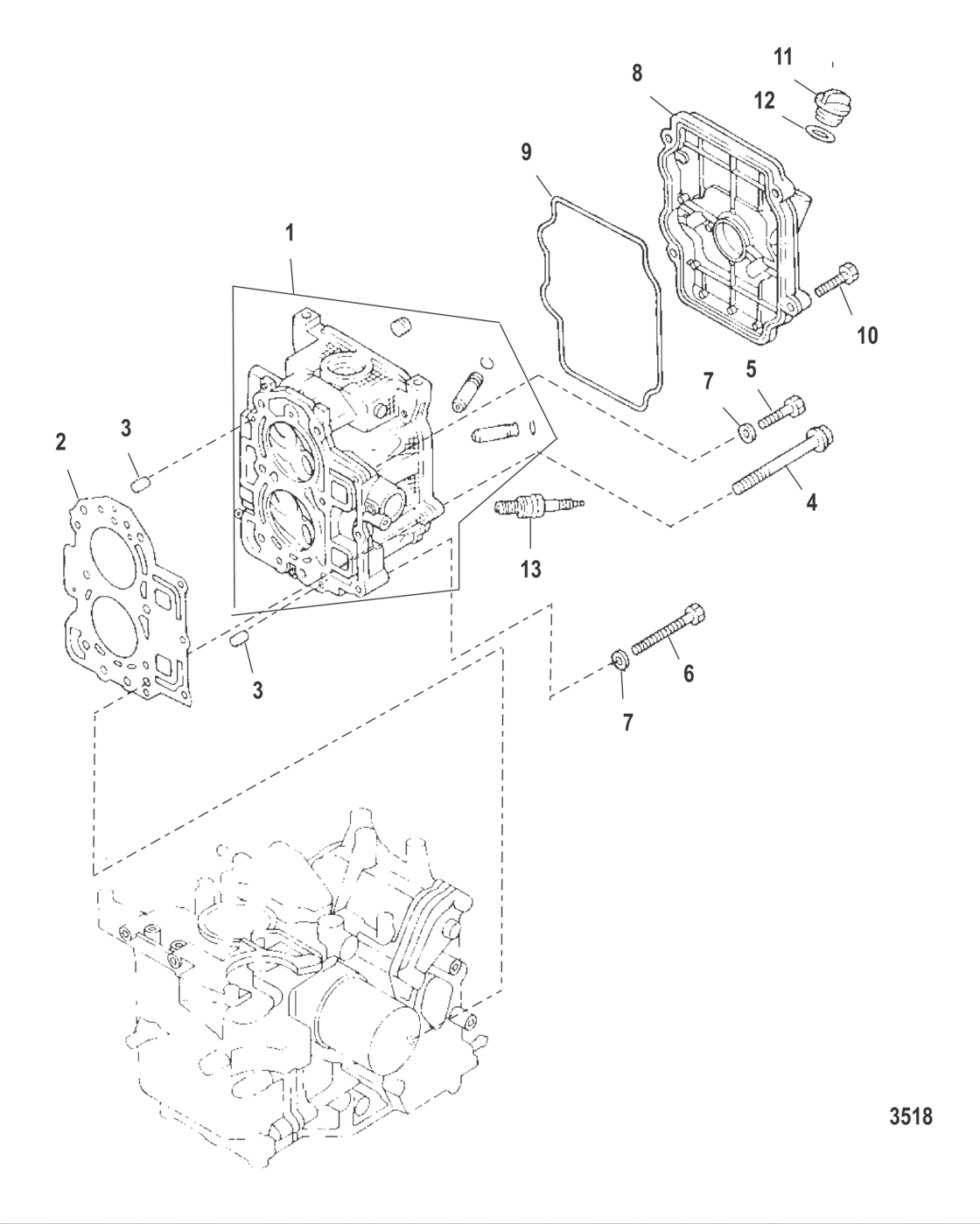

Cylinder Head Diagram Mercury-Mercruiser F15
- Power
- 15
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Серийный номер
- 0R051685 THRU 0R123564
- Серия
- Sea-Pro
- Кол-в цилиндров
- 2
- Подача топлива
- Карбюратор
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
835430A05
Cylinder Head Assembly
|
835430A05 |
— | ||
|
2
|
2
850836003 Gasket |
850836003 |
US $36.22 |
||
|
3
|
3
16119 Pin, dowel |
16119 |
US $6.72 |
||
|
4
|
4
855677002 Bolt |
855677002 |
US $4.64 |
||
|
5
|
5
823042054 Bolt |
823042054 |
US $1.62 |
||
|
6
|
6
823042055
Bolt
|
823042055 |
— | ||
|
7
|
7
809931044 Washer |
809931044 |
US $1.50 |
||
|
8
|
8
834954003
Cover
|
834954003 |
— | ||
|
9
|
9
803508019
Gasket, rubber
|
803508019 |
— | ||
|
10
|
10
16830A1 Screw Kit |
16830A1 |
US $4.40 |
||
|
11
|
11
859578A02 New Genuine Part |
859578A02 |
US $7.18 |
||
|
12
|
12
803513007 O-ring |
803513007 |
US $2.78 |
||
|
13
|
13
803507 Spark plug, ngk#dcpr6e |
803507 |
US $11.03 |
||
|
NI
|
NI
850836A05 Gasket Set Powerhead |
850836A05 |
US $204.56 |
