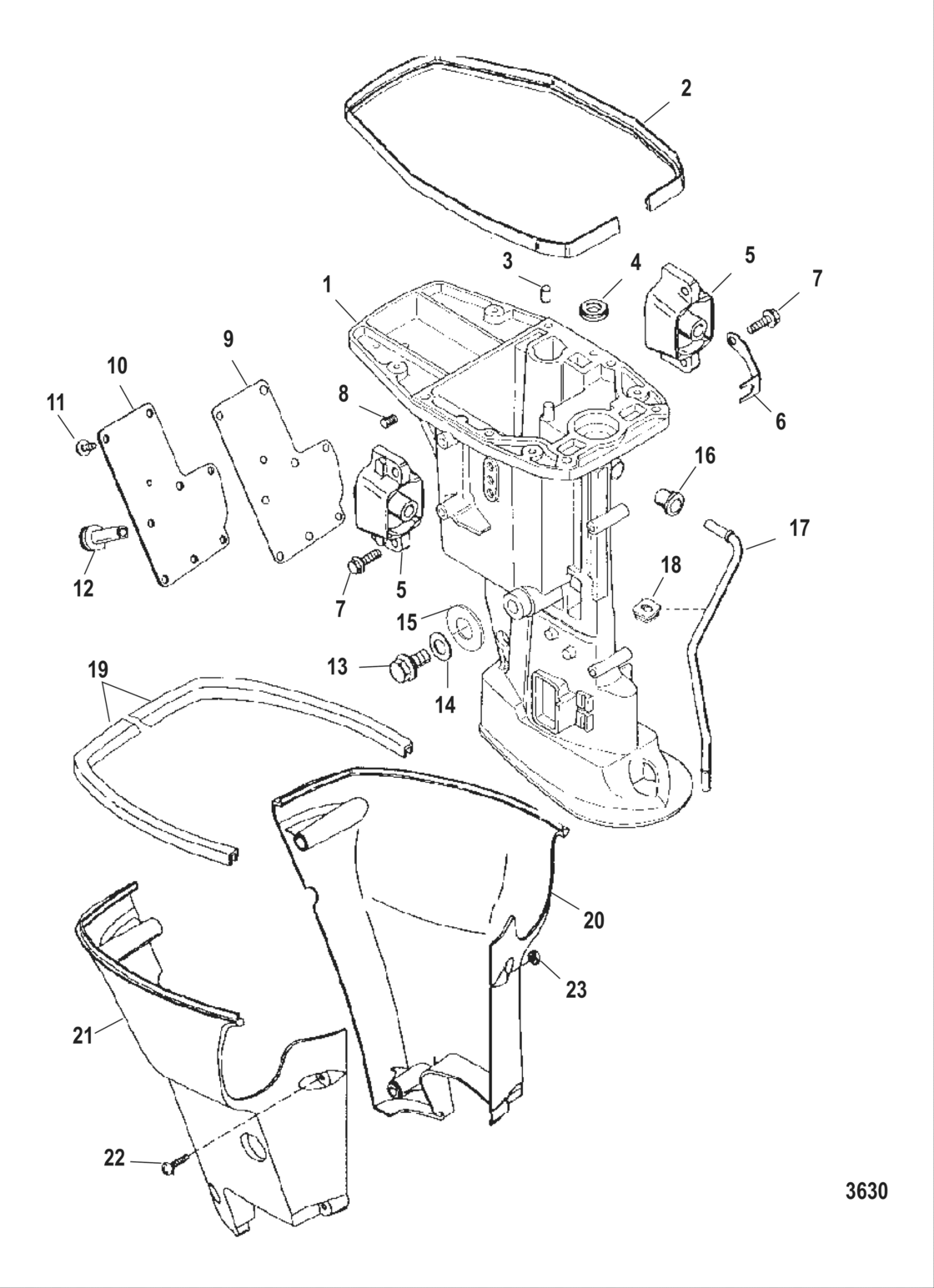

Driveshaft Housing Diagram Mercury-Mercruiser F15
- Power
- 15
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Серийный номер
- 0R051685 THRU 0R123564
- Серия
- Sea-Pro
- Кол-в цилиндров
- 2
- Подача топлива
- Карбюратор
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
803724003
Housing, driveshaft
(Short) |
803724003 |
— | ||
|
1
|
1
803725003
Housing, driveshaft
(Long) |
803725003 |
— | ||
|
2
|
2
852432004 New Genuine Part |
852432004 |
US $43.22 |
||
|
3
|
3
16119 Pin, dowel |
16119 |
US $6.72 |
||
|
4
|
4
8036675 Seal, oil |
8036675 |
US $9.74 |
||
|
5
|
5
853771006
New Genuine Part
|
853771006 |
— | ||
|
6
|
6
853772004 Lock plate |
853772004 |
US $6.61 |
||
|
7
|
7
823042050 Bolt |
823042050 |
US $5.92 |
||
| replacement | |||||
|
7
|
7
879194273 Bolt |
879194273 |
US $5.92 |
||
|
8
|
8
803593 Plug |
803593 |
US $9.15 |
||
|
9
|
9
854617002
Gasket
|
854617002 |
— | ||
|
10
|
10
853577002
Cover, idle port
|
853577002 |
— | ||
|
11
|
11
855544017
Bolt
|
855544017 |
— | ||
| replacement | |||||
|
11
|
11
810755013 BOLT |
810755013 |
US $1.46 |
||
|
12
|
12
851850009
Grommet
|
851850009 |
— | ||
|
13
|
13
895136 Bolt |
895136 |
US $16 |
||
| replacement | |||||
|
13
|
13
8M0111615 Drain Plug Bolt |
8M0111615 |
US $16 |
||
|
14
|
14
895146 Washer |
895146 |
US $5.47 |
||
|
15
|
15
804899003 Grommet |
804899003 |
US $5.79 |
||
|
16
|
16
16168003 Seal, rubber, upper |
16168003 |
US $6.26 |
||
|
17
|
17
803755008 Tube, water(Short) |
803755008 |
US $20.29 |
||
|
17
|
17
803755009 Tube, water(Long) |
803755009 |
US $43.82 |
||
|
18
|
18
803758001 Guide, rubber |
803758001 |
US $3.60 |
||
|
19
|
19
852432003 Seal-rubber |
852432003 |
US $6.96 |
||
|
20
|
20
850862001
New Genuine Part
|
850862001 |
— | ||
|
21
|
21
850863001
Cover, starboard
|
850863001 |
— | ||
|
22
|
22
16257005
Screw
|
16257005 |
— | ||
|
23
|
23
400212 Nut, stainless steel |
400212 |
US $2.43 |
||
|
NI
|
NI
850836A05 Gasket Set Powerhead |
850836A05 |
US $204.56 |
||
