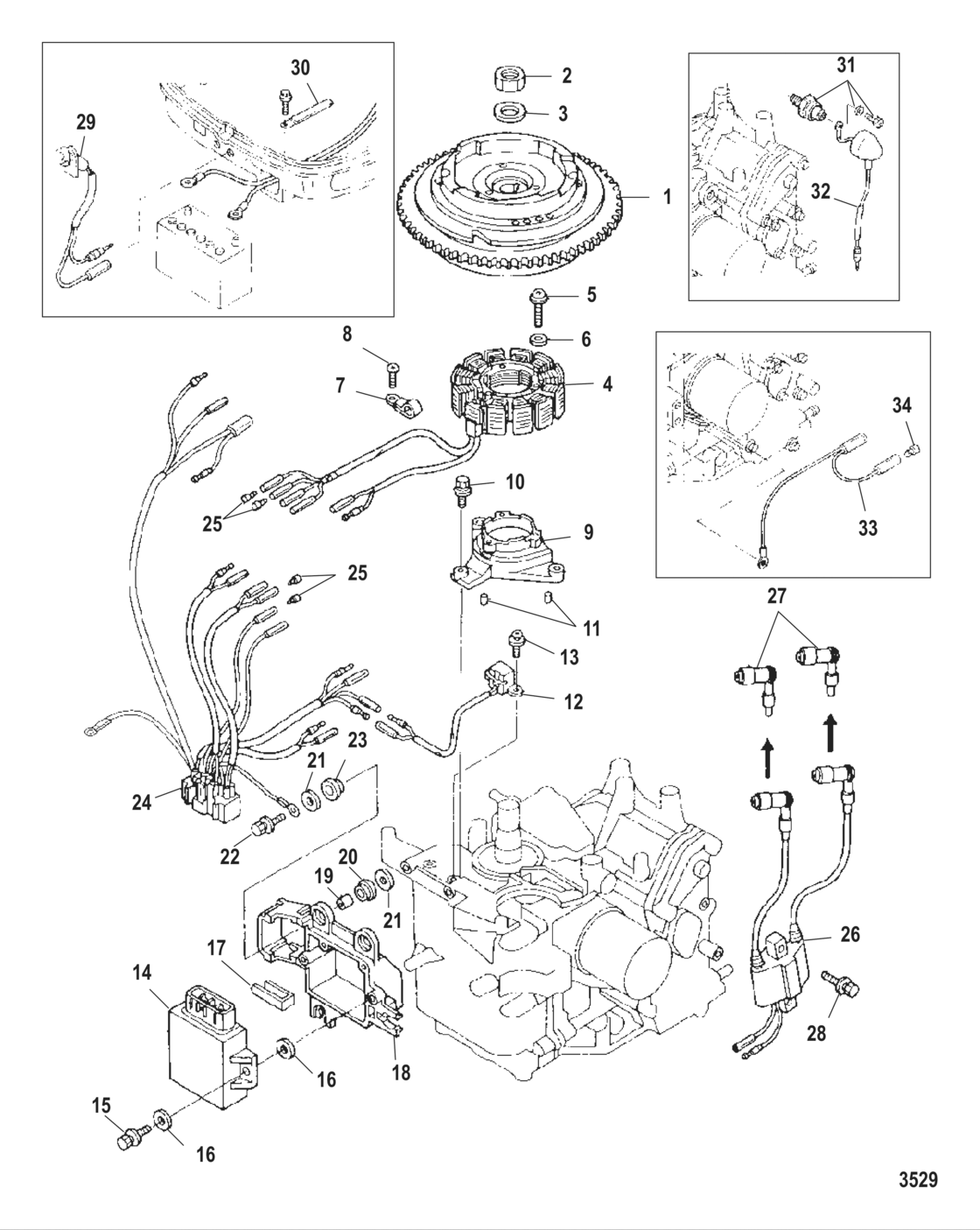

Electrical Components Diagram Mercury-Mercruiser F15
- Power
- 15
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Серийный номер
- 0R051685 THRU 0R123564
- Серия
- Sea-Pro
- Кол-в цилиндров
- 2
- Подача топлива
- Карбюратор
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
803577003
Flywheel
|
803577003 |
— | ||
|
2
|
2
851832001 Nut, gold |
851832001 |
US $7.31 |
||
|
3
|
3
853991002 Washer |
853991002 |
US $2.78 |
||
|
4
|
4
16058004 Stator |
16058004 |
US $323.33 |
||
|
5
|
5
853536002 Screw |
853536002 |
US $3.25 |
||
|
6
|
6
895106003 Washer |
895106003 |
US $1.62 |
||
|
7
|
7
953951 Clamp |
953951 |
US $8.35 |
||
|
8
|
8
162452 Screw |
162452 |
US $2.21 |
||
|
9
|
9
895267001
Bracket
|
895267001 |
— | ||
|
10
|
10
855544016
Screw
|
855544016 |
— | ||
|
11
|
11
16119 Pin, dowel |
16119 |
US $6.72 |
||
|
12
|
12
835395004
Coil, pulser
|
835395004 |
— | ||
|
13
|
13
878388001 Screw |
878388001 |
US $1.86 |
||
|
14
|
14
835401004 C.d. unit |
835401004 |
US $563.14 |
||
|
15
|
15
16705 Bolt |
16705 |
US $3.60 |
||
|
16
|
16
895118002 Washer |
895118002 |
US $4.86 |
||
| replacement | |||||
|
16
|
16
953921 Washer, stainless steel |
953921 |
US $6.34 |
||
|
17
|
17
17169001
Clamp
|
17169001 |
— | ||
|
18
|
18
853739004
Bracket
|
853739004 |
— | ||
|
19
|
19
9528624 Collar |
9528624 |
US $4.86 |
||
| replacement | |||||
|
19
|
19
8M0021168 Collar |
8M0021168 |
US $4.86 |
||
|
20
|
20
851815005 Grommet |
851815005 |
US $3.71 |
||
|
21
|
21
895118002 Washer |
895118002 |
US $4.86 |
||
| replacement | |||||
|
21
|
21
953921 Washer, stainless steel |
953921 |
US $6.34 |
||
|
22
|
22
4000330 Screw, adaptor |
4000330 |
US $4.54 |
||
|
23
|
23
953924 Washer |
953924 |
US $2.67 |
||
|
24
|
24
895121A04 Cd Harness |
895121A04 |
US $211.22 |
||
|
25
|
25
853994 Plug |
853994 |
US $4.53 |
||
|
26
|
26
803559A04 Coil Assembly Ignition |
803559A04 |
US $131.44 |
||
|
27
|
27
803560 Boot |
803560 |
US $16.41 |
||
| replacement | |||||
|
27
|
27
803560001 BOOT |
803560001 |
US $16.82 |
||
|
28
|
28
823042 Bolt |
823042 |
US $3.36 |
||
|
29
|
29
804057001 New Genuine Part |
804057001 |
US $44.78 |
||
|
30
|
30
813275 Clamp |
813275 |
US $6.61 |
||
|
31
|
31
803538 Switch |
803538 |
US $59.16 |
||
|
32
|
32
803539001
Wire, lead
|
803539001 |
— | ||
|
33
|
33
895122A01 Cable assembly |
895122A01 |
US $20.29 |
||
|
34
|
34
853994 Plug |
853994 |
US $4.53 |
||
